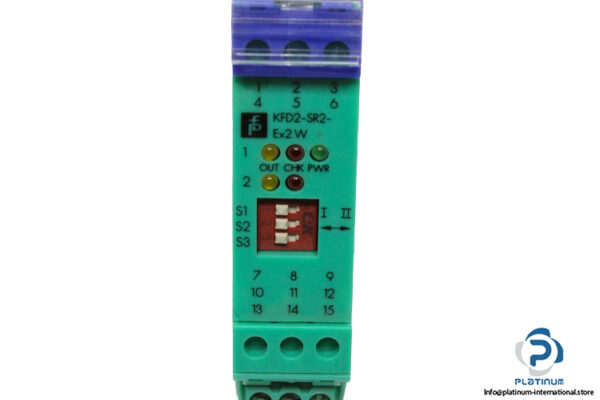

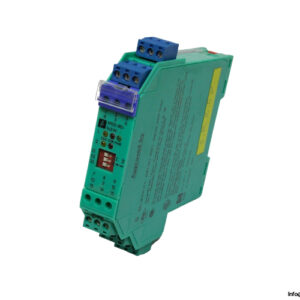

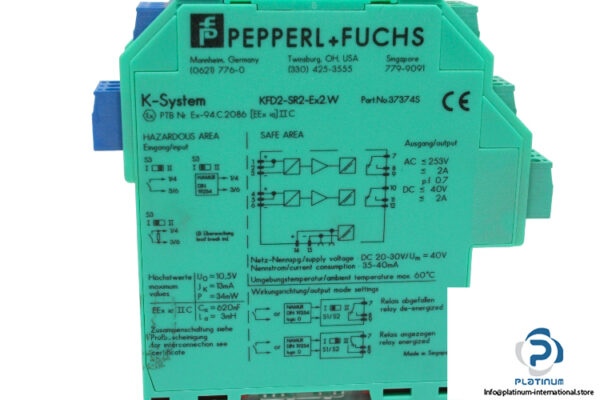

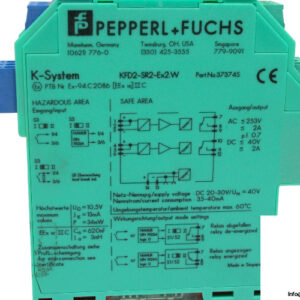

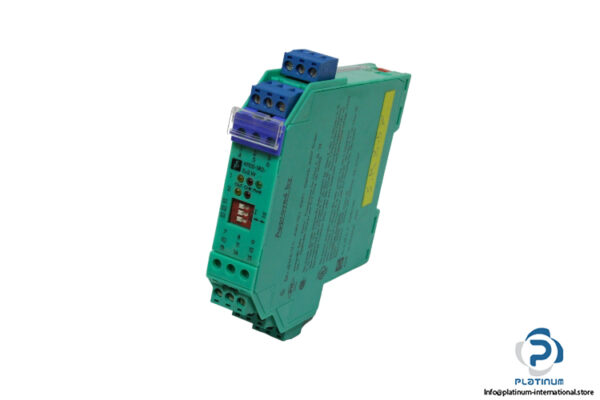

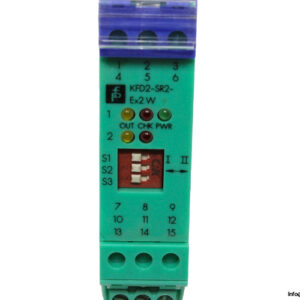

Manufacturer: Pepperl+Fuchs

Type: Switch Amplifier

Model: KFD2-SR2-EX2.W

Part No.: 132960

Signal Type: Digital Input

Connection: Power Rail or terminals 14+, 15-

Rated Voltage: 20 … 30 VDC

Rated Current: ≤ 50 mA

Power Dissipation: 1 W

Power Consumption: < 1.3 W Input:

Connection Side: field side

Connection: terminals 1+, 2+, 3-; 4+, 5+, 6-

Open Circuit Voltage/Short-Circuit Current: approx. 8 V DC / approx. 8 mA

Switching Point/Switching Hysteresis: 1.2 … 2.1 mA / approx. 0.2 mA

Output:

Connection Side: control side

Connection: output I: terminals 7, 8, 9 ; output II: terminals 10, 11, 12 ; Output I, II signal, relay

Contact Loading: 253 V AC/2 A/cos φ > 0.7; 126.5 V AC/4 A/cos φ > 0.7; 40 V DC/2 A resistive load

Minimum Switch Current: 2 mA / 24 V DC

Degree of Protection: IP20

Dimensions: 20 x 119 x 115 mm
