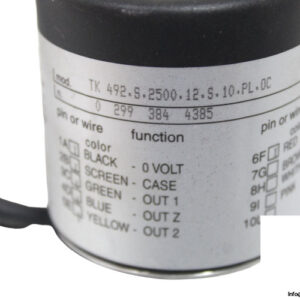

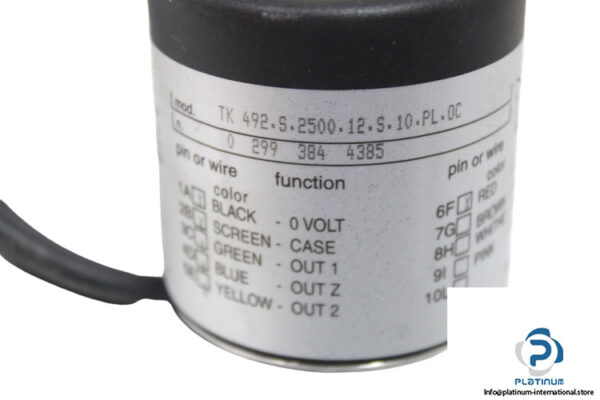

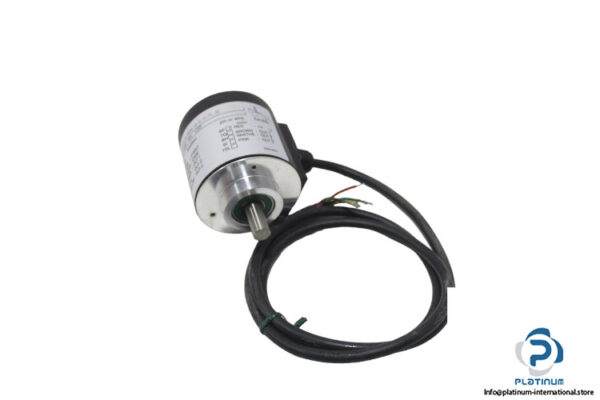

TEKEL TK 492.S.2500.12.S.10.PL.OC INCREMENTAL ENCODER
The Tekel TK 492.S.2500.12.S.10.PL.OC is a high-precision incremental encoder built for demanding industrial automation and motion control systems. With durable construction and a wide frequency range, it ensures accurate speed and position feedback in harsh conditions.
Manufacturer: Tekel
Type: Incremental Encoder
Model: TK 492.S.2500.12.S.10.PL.OC
Part No.: 0 299 384 4385
Technical Information
- Voltage Supply: 12 V
- Frequency Range: 0 / 50 KHz
- Shaft Diameter: 10 mm
- Slewing Speed: 2500
- Connection: Radial cable gland with 1 / 6 m cable
- Output: NPN open collector
- Assembly: Servo standard
- Operating Temperature: -10 / +70 °C
- Degree of Protection: IP 55
