Manufacturer: REXROTH

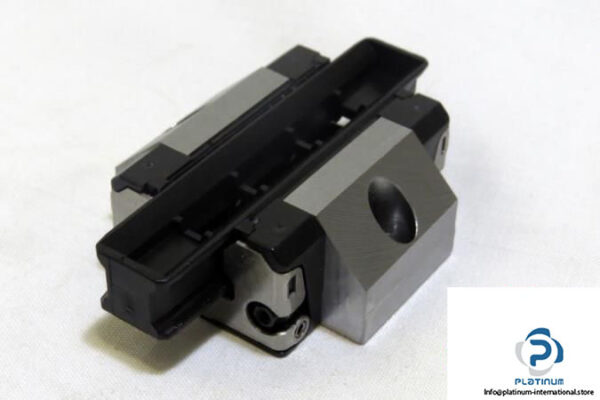

Type: Ball Runner Block FKS

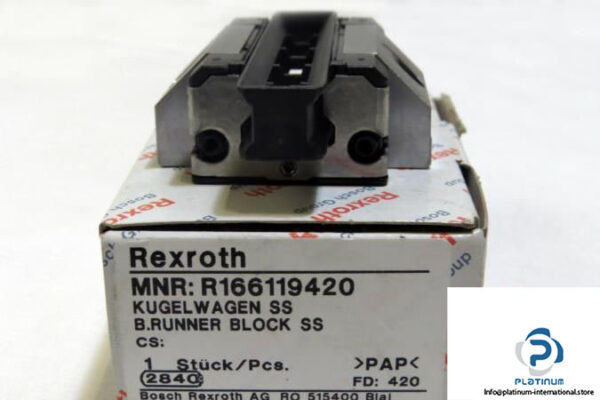

MNR: R1661 194 20

Size: 15 mm
Format: FKS, flange, short, standard height
Material (profiled rail systems): Carbon steel
Maximum Acceleration Travel a_max: 500 m/s²
Maximum Permissible Speed v_max: 5 m/s
Dynamic Load Capacity C: 3900 N
Permissible load Fmax: 1500 N
Dynamic Torsional Moment Load Capacity M_t:  39 Nm
Mt max: 15 Nm
Preload Class: C0 – Without preload
Accuracy Class: N – Normal
Dimensions
Width (A): 47 mm
Length (B): 44.7 mm
Height of system(H): 24 mm
Height of block (H₁): 19.90 mm
E1: 38 mm
Admissible Operating Temperature: -10 °C … +80 °C
