REXNORD 06B-1 SIMPLEX ROLLER CHAIN

Manufacturer: REXNORD
Type: Simplex Roller Chain
Model: 06B-1

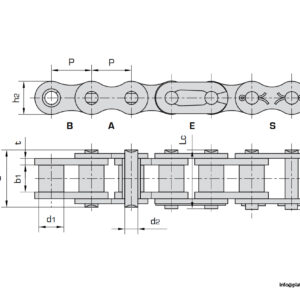

DIN/ISO 606
Chain no. 06B-1
PitchP: 9.525 mm
Roller diameter d1: 6.35 mm
Width between inner plates b1: 5.72 mm
Pin diameter d2 max/L max: 3.28/13.15 mm
Pin length Lc max: 14.1 mm
Plate thickness T: 1.3mm
Ultimate tensile strength Q min: 9.0/2045 kN/lbf
Average tensile strength Q0: 10.4 kN
Weight per meter q: 0.41 kg/m
