Donghua 24B-1 Single-Strand Roller Chain

Manufacturer: DONGHUA
Type: Single-Strand Roller Chain
Model: 24B-1

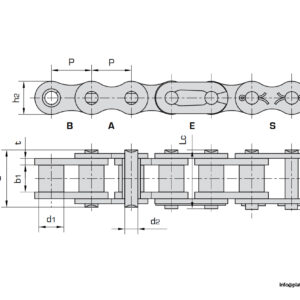

DIN/ISO 606
Chain no. 24B-1
PitchP: 38.1 mm
Roller diameter d1: 25.4 mm
Width between inner plates b1: 25.4 mm
Pin diameter d2 max/L max: 14.63/53.40 mm
Pin length Lc max: 57.8 mm
Plate thickness T: 6.00/4.8mm
Ultimate tensile strength Q min: 160.0/36364 kN/lbf
Average tensile strength Q0: 178 kN
Weight per meter q: 7.1 kg/m
