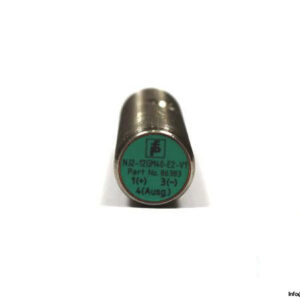

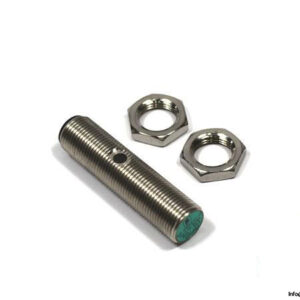

Manufacture: PEPPERL FUCHS
Type: INDUCTIVE SENSOR
Model No.: NJ212GM40E2V1
Part No.: 86383
Rated operating distance: 2 mm
Assured operating distance: 0 … 1.62 mm
Actual operating distance: 1.8 … 2.2 mm
Operating Voltage: 10 … 60 V DC
Operating Current: 200 mA
Switching frequency: 0 … 3000 Hz
Electrical design: PNP
Switching output: Normally open

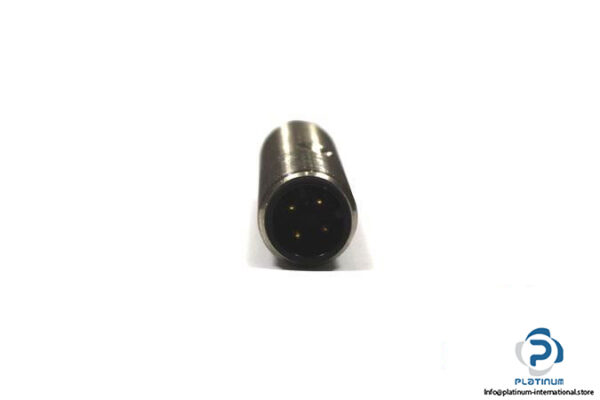

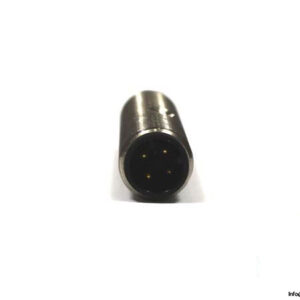

Connector type: M12 Connector, 4-pin
Protection class: II
Enclosure rating: IP67
Ambient Operating temperature: -25 … 70°C

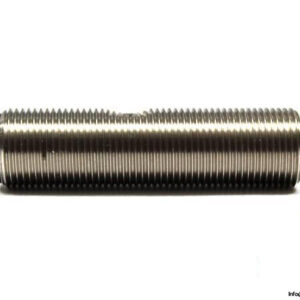

Diameter, housing length: 12, 40 mm
Housing material: Stainless steel
Sensing face material: PBT
Mounting: Flush-mountable
Condition: New
