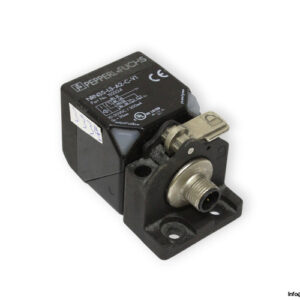

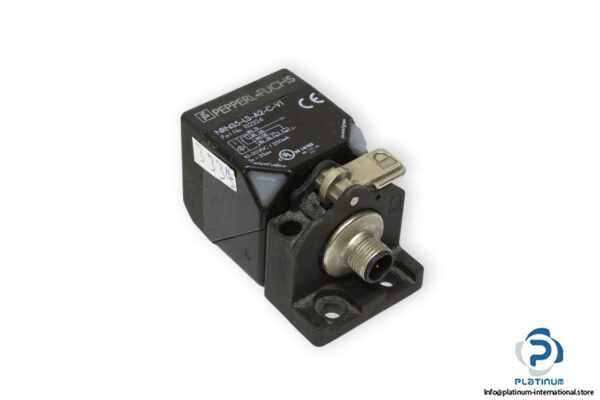

Manufacturer: Pepperl+Fuchs
Type: Inductive Sensor
Model: NRN35-L3-A2-C-V1
Part No: 132324

Switching Element Function: PNP
Switching Output: Normally Open, Normally Close
Rated Operating Distance: 35 mm
Operating Voltage: 10 … 30 V DC
Rated Insulation Voltage: 60 V
Installation: non-flush
Switching Frequency: 0 … 100 Hz
Operating Current: 0 … 200 Ma
Ambient Temperature: -25 … 70 °C
Connection Type: Device Connector M12 X 1, 4-Pin

Housing Material: GD-Znal4cu1
Protection Degree: IP67
Dimensions: 67 X 40 X 40 mm
