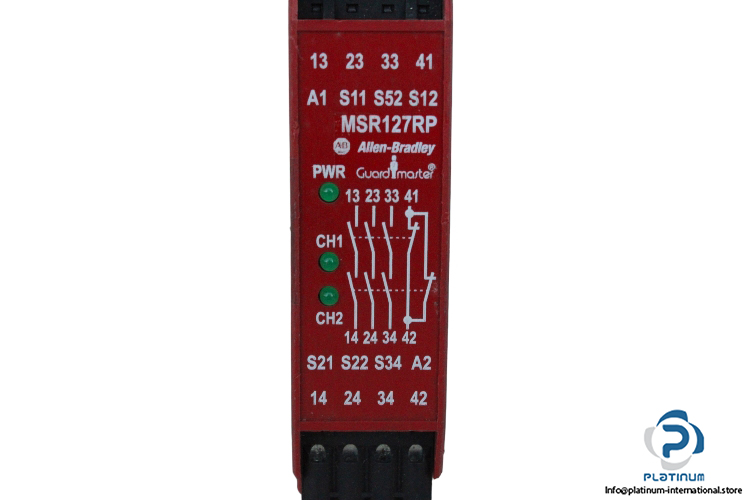

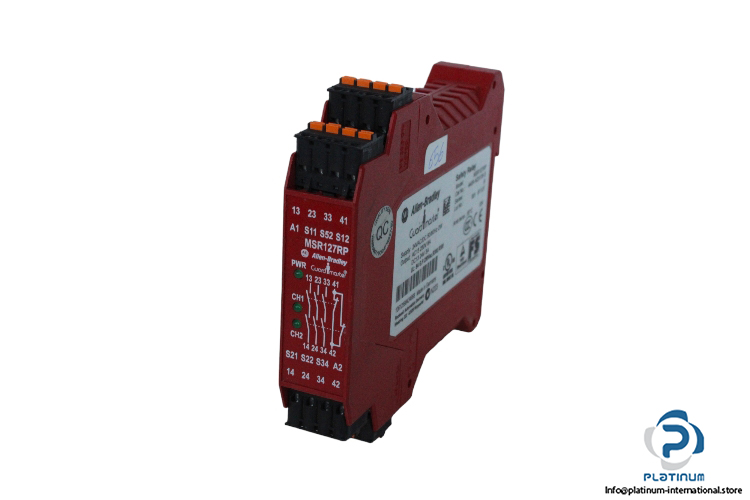

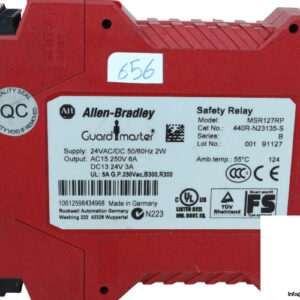

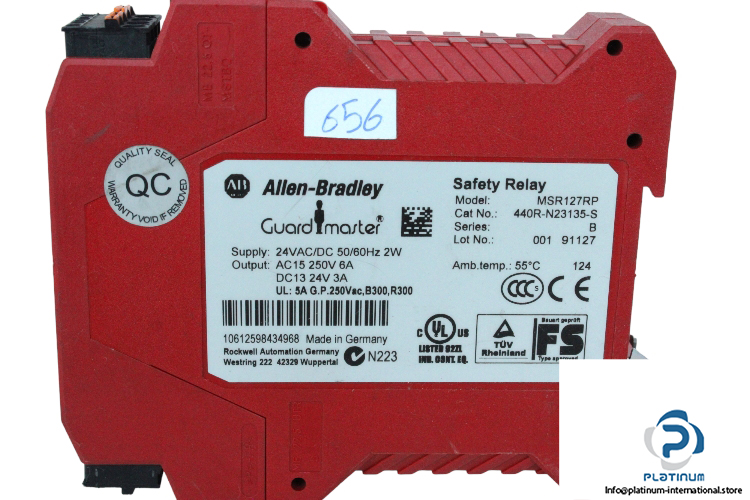

Manufacturer: Allen-Bradley

Type: Safety Relay

Model: MSR127RP

Part No.: 440R-N23135-S

Power supply: 24V AC/DC

Frequency: 50 … 60 Hz

Power consumption: 2 W

Outputs

Contact: 3 N.O. safety, 1 N.C. auxiliary

AC-15: 250 V AC,6 A

DC-13: 24 V DC,3 A

Pollution degree: 2

Impulse withstand voltage: 2500V

Response time: 15 ms

Mounting: 35 mm (1.4 in.) DIN rail

Case material: Polyamide PA 6.6

Operating temperature: -5 … +55 °C

Terminal protection: IP20

Dimensions: 114.5 x 99 x 22.5 mm
