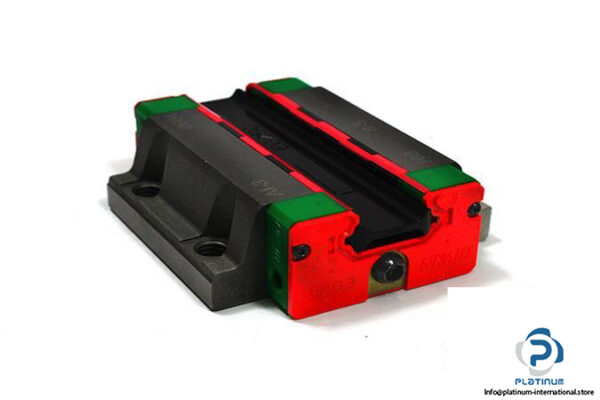

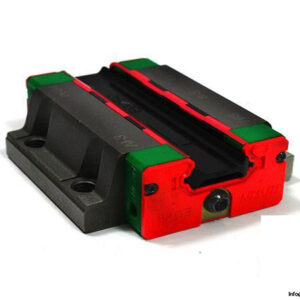

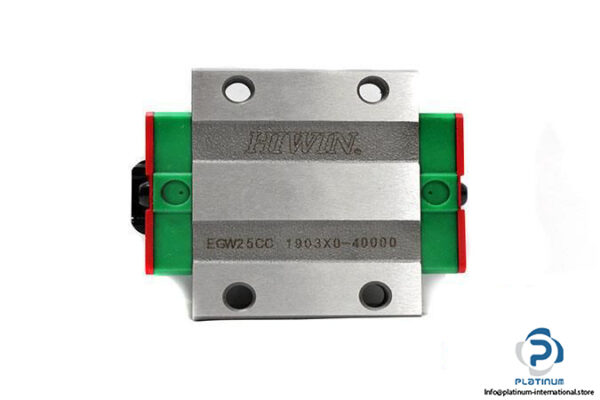

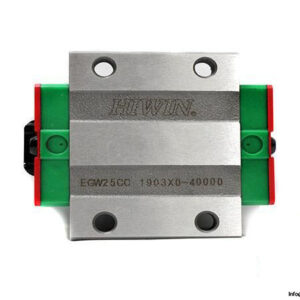

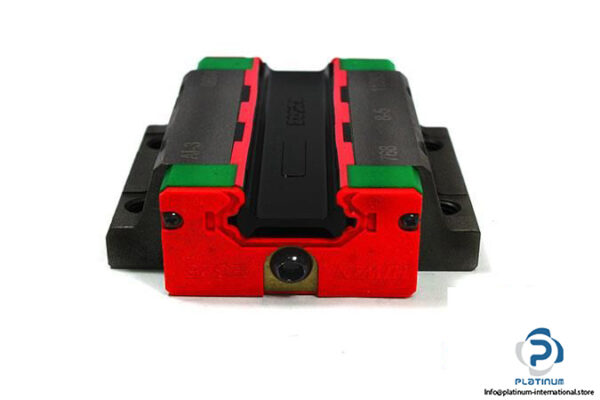

HIWIN EGW 25CC LINEAR GUIDEWAY BLOCK

The Hiwin EGW 25CC linear guideway block is a heavy-duty flange-type unit engineered for precise linear motion under high loads. With dual mounting options and robust load ratings, it is ideal for demanding industrial automation systems and machine applications.

Manufacturer: Hiwin
Type: Linear Guideway Block
MNR: EGW 25CC 1903X0-40000

Technical Information

• Size: 25 mm
• Total Height H: 33 mm
• Block Width W: 73 mm
• Block Length L: 82.6 mm
• Block Height: 26 mm
• Distances Between Holes: 60 mm, 35 mm
• Thread Size: M8
• Basic Dynamic Load Rating C: 16.27 kN
• Basic Static Load Rating C0: 32.4 kN
• Rail Width: 23 mm
• Rail Height: 18 mm
• Block Type: Flange
• Load Type: Heavy Load
• Block Mounting Type: From Above or Below
