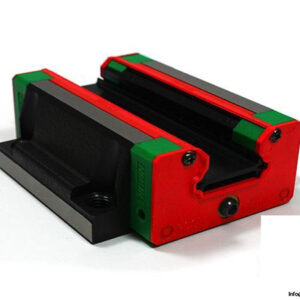

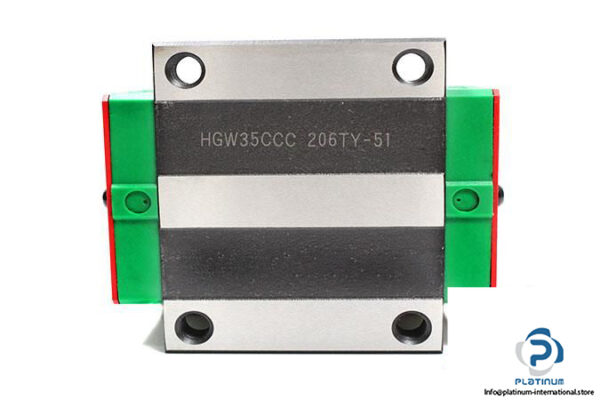

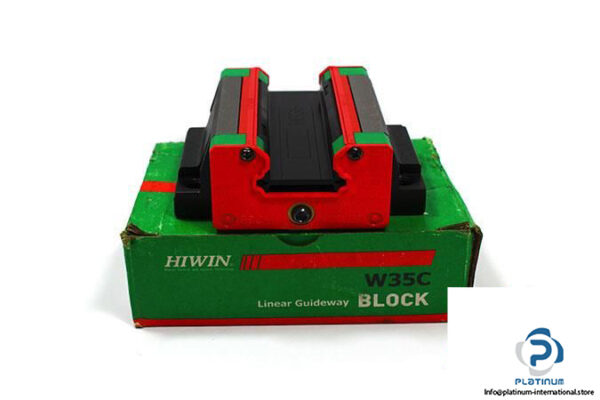

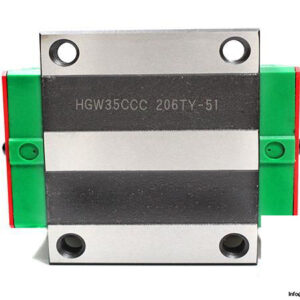

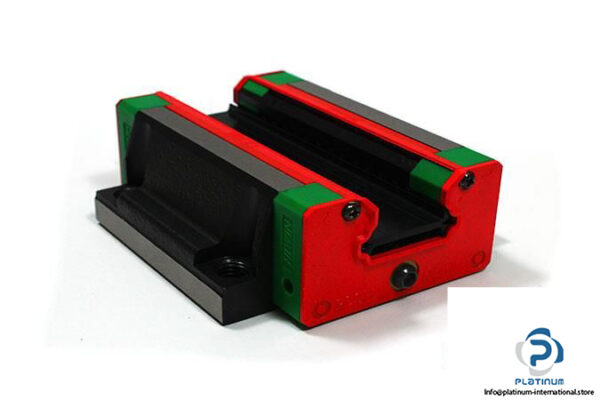

HIWIN HGW35CCC 206TY-51 LINEAR GUIDEWAY BLOCK

This high-performance linear guideway block from Hiwin is designed for heavy-load precision motion systems. Its flange-type design, robust construction, and top or bottom mounting versatility make it ideal for demanding industrial automation and CNC environments.

Manufacturer: Hiwin
Type: Linear Guideway Block
MNR: HGW35CCC 206TY-51

Technical Information

• Size: 35 mm
• Block Height: 40.5 mm
• System Height: 48 mm
• Block Width (W): 100 mm
• Block Length (L): 112.4 mm
• Thread Size: M8x25
• Distance Between Holes: 82 mm, 62 mm
• Rail Width: 34 mm
• Rail Height: 29 mm
• Block Type: Flange
• Load Type: Heavy Load
• Block Mounting Type: Top or Bottom
• Basic Dynamic Load Rating: 64.6 kN
• Basic Static Load Rating: 93.88 kN
