Manufacturer: REXROTH

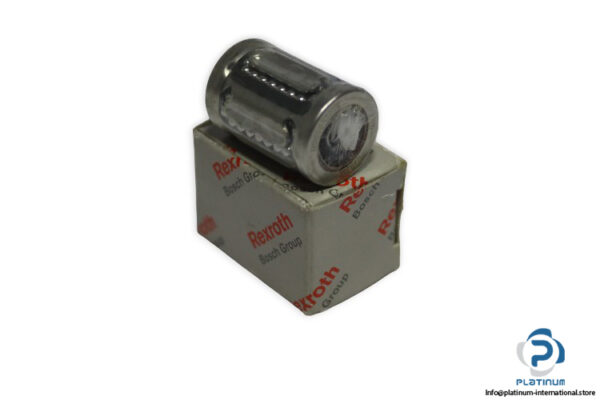

Type: COMPACT LINEAR BUSHING KBC

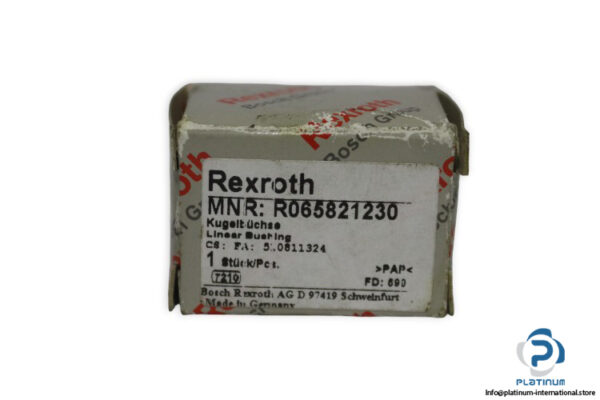

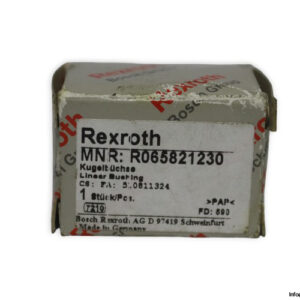

MNR: R0658 212 30

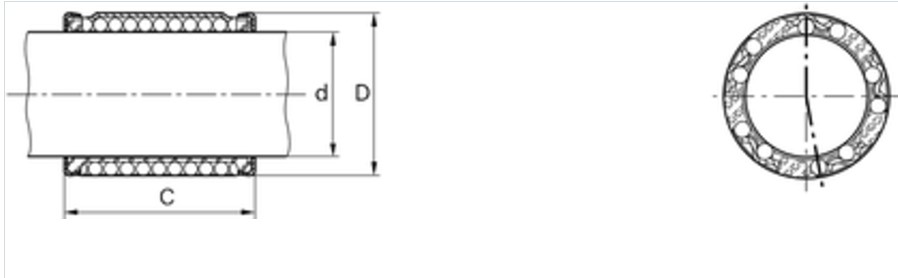

Dimensions:
Shaft diameter d0: 12 mm
Outer diameter D: 19 mm
Length of linear bushing C: 28 mm
Seal: 2 integrated wiper seals
Series: LB, Compact
Radial clearance: Normal
Maximum Acceleration Travel amax:  150 m/s²
Max. Permissible Speed v_max: 5 m/s
Breakaway force: 1.5 N
Maximum dynamic load capacity C_max: 610 N
Permissible Ambient Temperature: -10 … +80 °C
