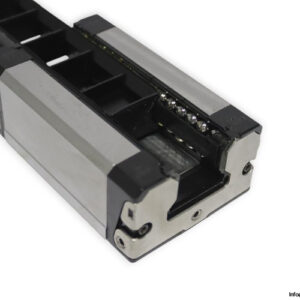

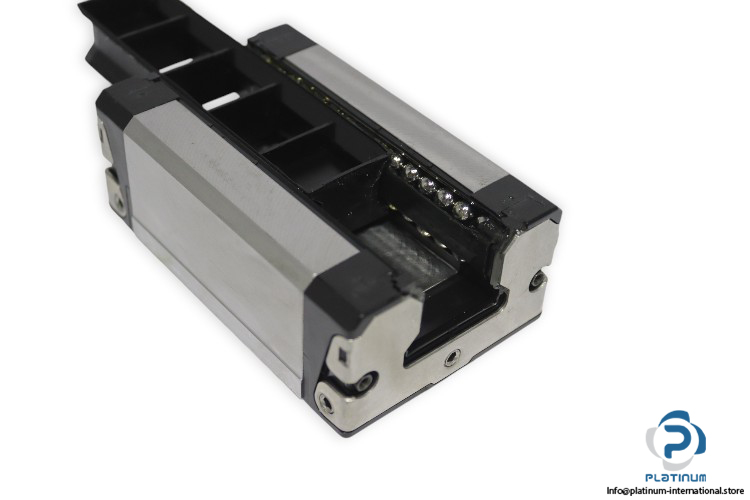

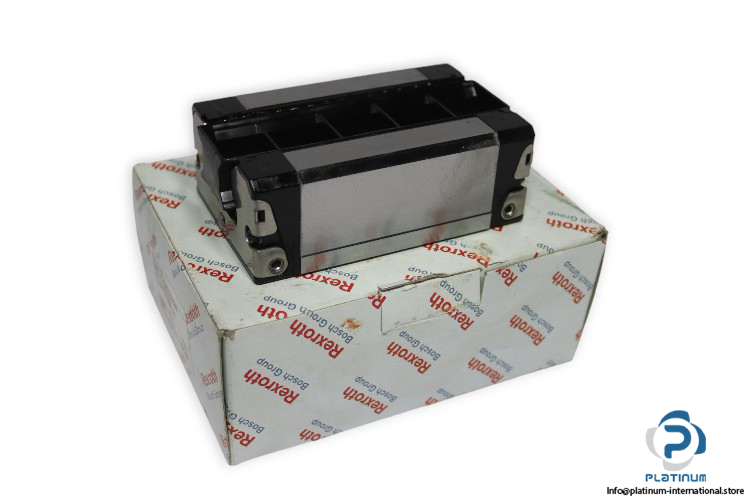

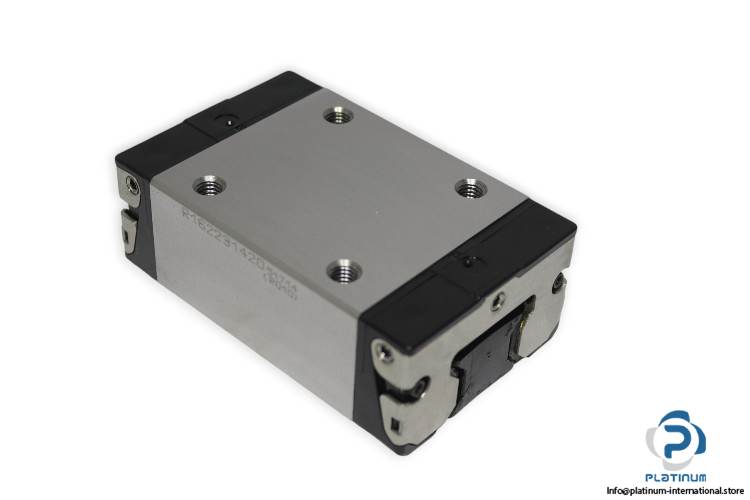

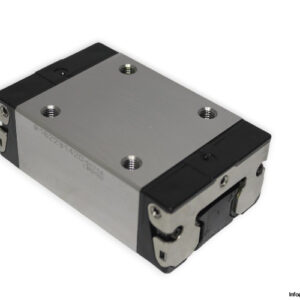

Rexroth R162231420 Ball Runner Block

Manufacturer: REXROTH
Type: BALL RUNNER BLOCK SNS

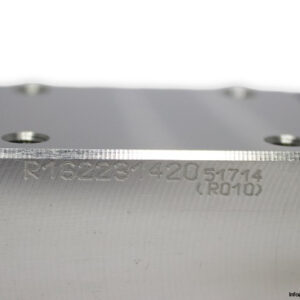

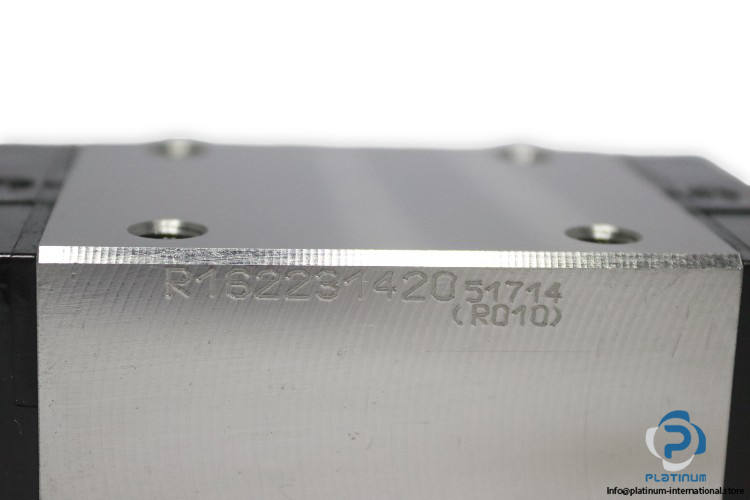

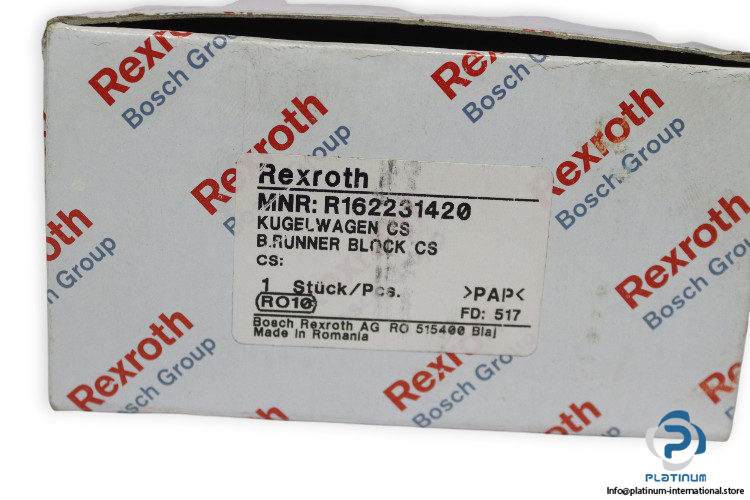

MNR: R1622 314 20

Size: 35 mm

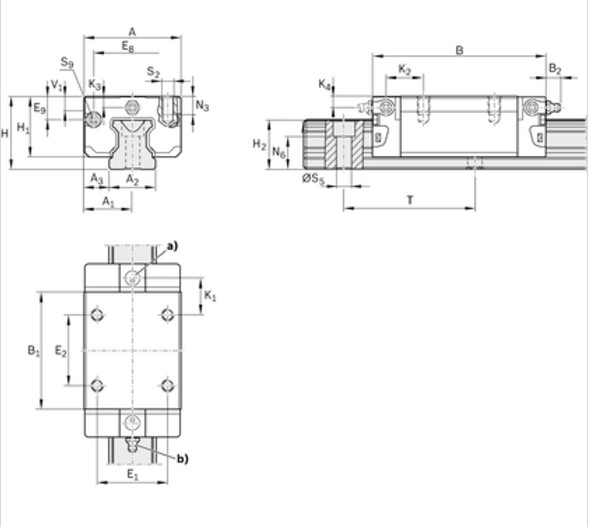

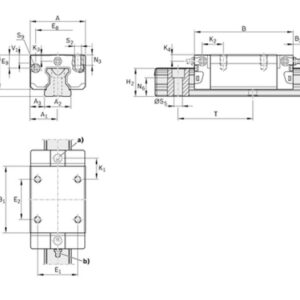

Dimensions
Width (A): 70 mm
Length (B): 110.5 mm
Height of runner block: 40.4 mm
Height runner block with guide rail: 48 mm
E1: 50 mm
E2: 50 mm
Format: SNS – slimline, normal, standard height
Material (profiled rail systems): Carbon steel
Dynamic Load Capacity C: 51800 N
Static Load Capacity C₀ : 80900 N
Max. acceleration a max: 500 m/s²
Maximum permissible linear speed v max: 5 m/s
Dynamic Torsional Moment Load Capacity M_t: 1110 Nm
Static torsional moment load capacity Mt0: 1740 Nm
Dynamic longitudinal moment load capacity ML: 720 Nm
Static longitudinal moment load capacity ML0: 1130 Nm
Accuracy Class: N – Normal
Preload Class: C1 – Low preload
Seal: SS – Standard seal
