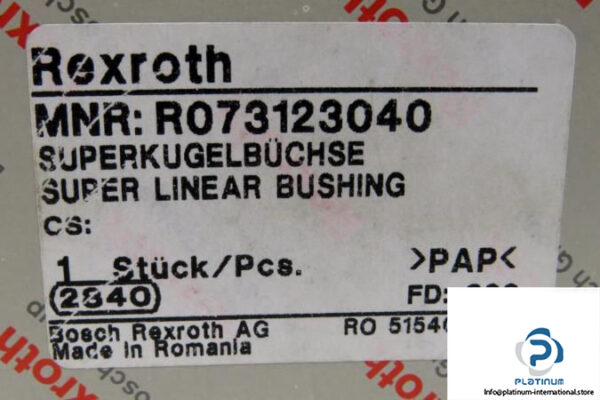

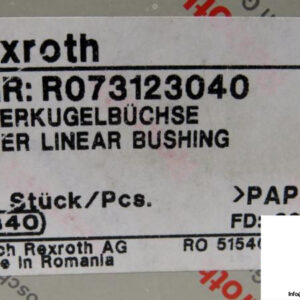

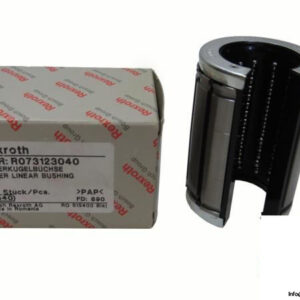

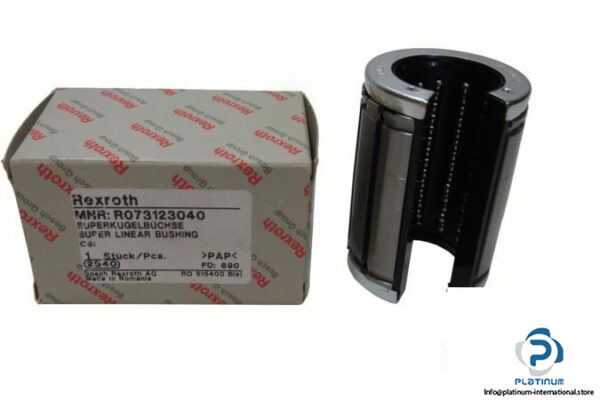

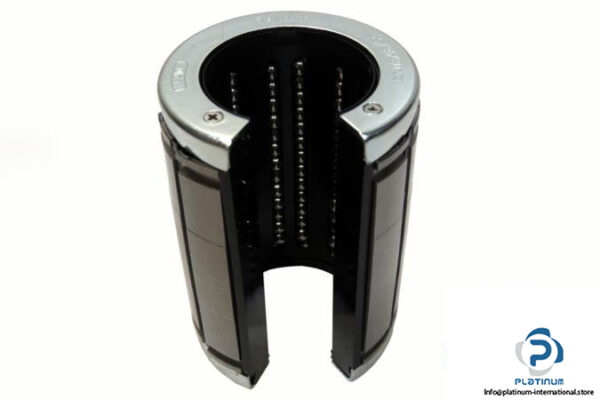

Rexroth R0731 230 40 Super Linear Bushing KBSH

The Rexroth R0731 230 40 KBSH Super Linear Bushing is designed for precise linear motion with high load capacity and durability. Featuring a 30 mm shaft diameter, six rows of balls, and robust sealing, it ensures smooth operation even under demanding industrial conditions.

Manufacturer: Rexroth
Type: Super Linear Bushing KBSH
MNR: R0731 230 40

Technical information

• Shaft Diameter (d0): 30 mm
• Rows of Balls: 6
• Design Type: Open
• Maximum Permissible Linear Speed (vmax): 5 m/s
• Maximum Acceleration (amax): 150 m/s²
• Breakaway Force: 9 N
• Dynamic Load Rating (C): 6300 N
• Static Load Rating (C0): 7180 N
• Dimensions (D): 47 mm
• Dimension (C): 68 mm
• Dimension (C1): 51.7 mm
• Dimension (D1): 44.5 mm
• Dimension (C2): 1.85 mm
• Seals: Two seals
• Permissible Ambient Temperature: -20 / +80 °C
