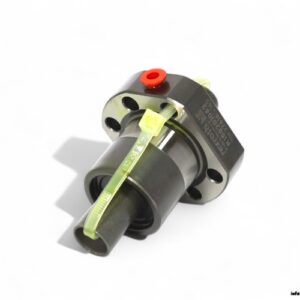

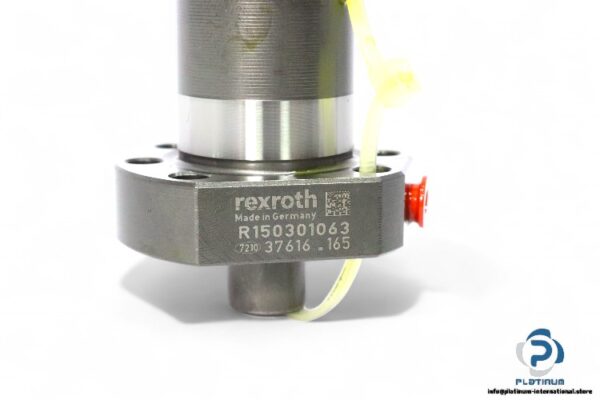

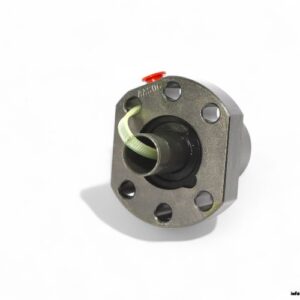

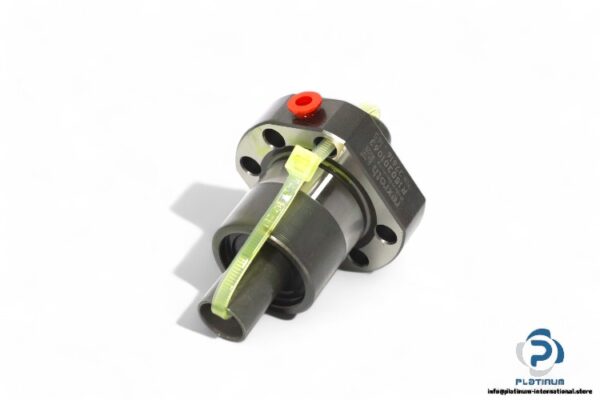

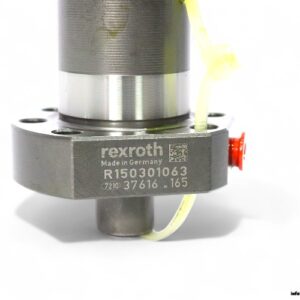

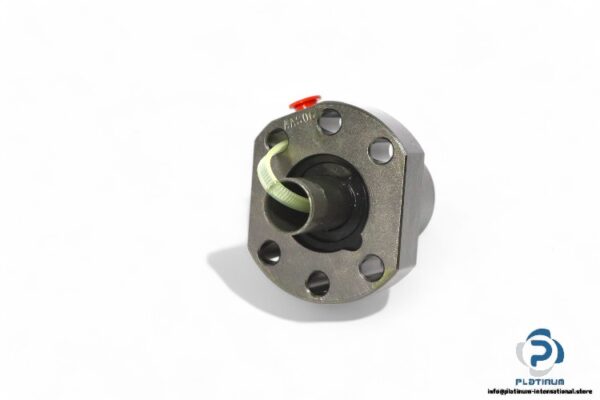

Manufacturer: Rexroth
Type: FLANGED SINGLE NUT

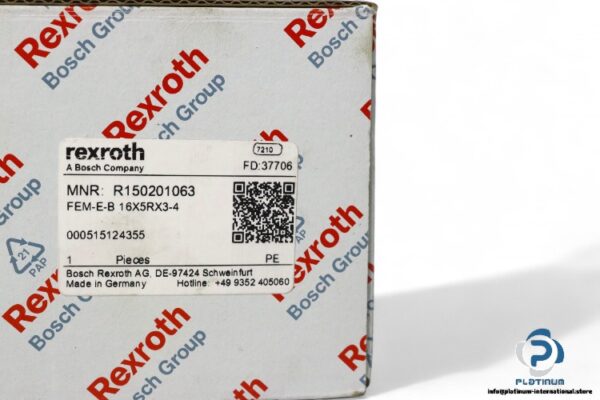

MNR: R150301063

Size: 16 x 5R x 3 – 4

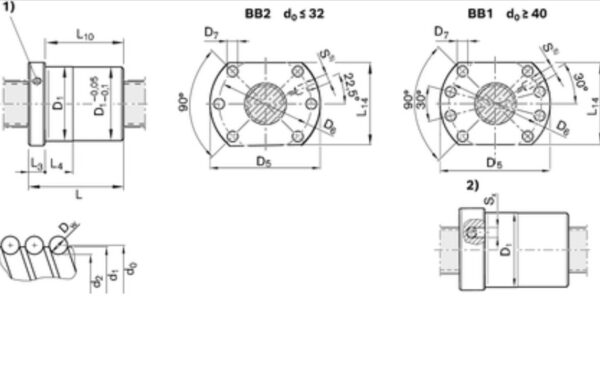

Dimensions:
Nominal Diameter d₀: 16 mm
D₁: 28 mm
D₅: 48 mm
L: 38 mm
Ball Diameter D_W: 3 mm
Number of ball track turns i: 4
Lead P: 5 R mm
Direction of Lead: Right
Nut type: FEM-E-B single nut with flange
Dynamic Load Rating C: 14800 N
Static Load Rating C0: 16100 N
Maximum permissible linear speed v max: 30 m/min
Operating temperature: -10 °C … +80 °C
