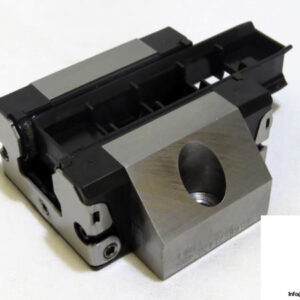

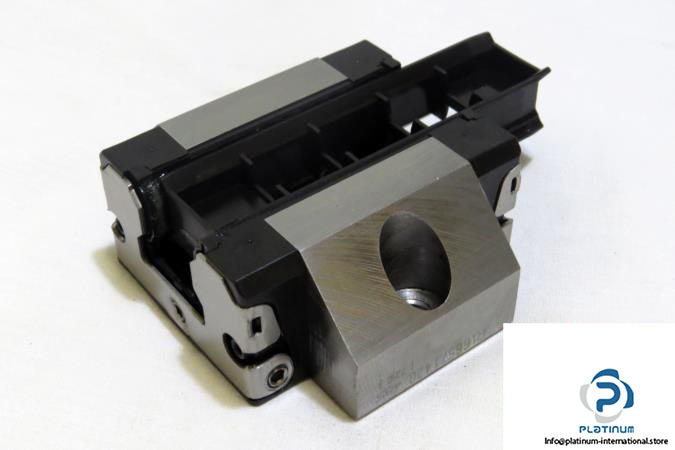

Manufacturer: REXROTH
Type: Ball Runner Block FKS

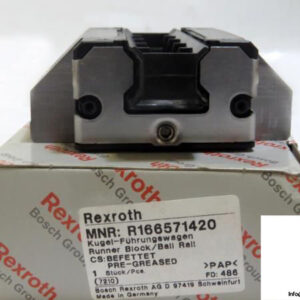

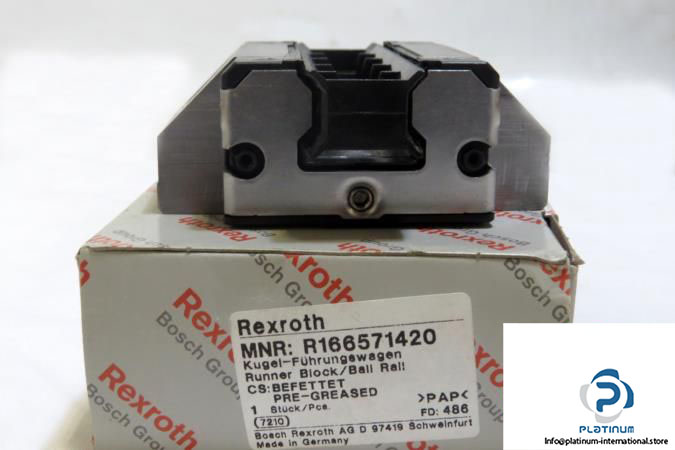

MNR: R1665 714 20

Size: 30 mm
Format: FKS, flange, short, standard height
Material (profiled rail systems): Carbon steel
Maximum Acceleration Travel a_max: 500 m/s²
Maximum Permissible Speed v_max: 5 m/s
Dynamic Load Capacity C: 25600 N
Static Load Capacity C₀ : 28900 N
Dynamic Torsional Moment Load Capacity M_t:  440 Nm
Mt0: 500 Nm
Dynamic longitudinal moment load capacity ML: 200 Nm
Static longitudinal moment load capacity ML0: 230 Nm
Accuracy Class: N – normal
Preload Class: C1 – low preload
Dimensions
Width (A): 90 mm
Length (B): 75.3 mm
Height of system(H): 42 mm
Height of block (H₁): 35.35 mm
E1: 72 mm
Admissible Operating Temperature: -10 °C … +80 °C
