Manufacturer: REXROTH

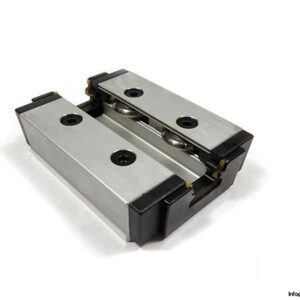

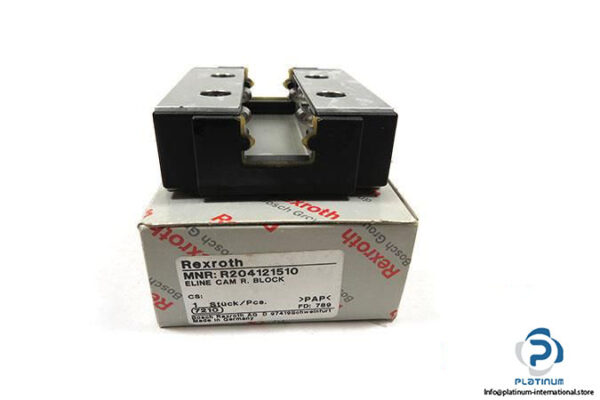

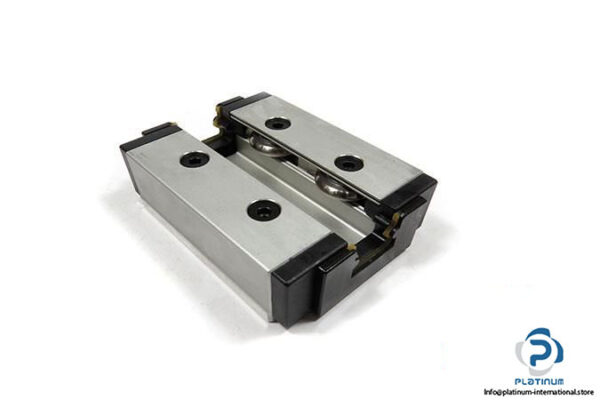

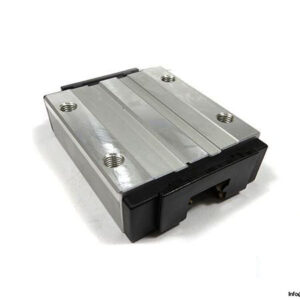

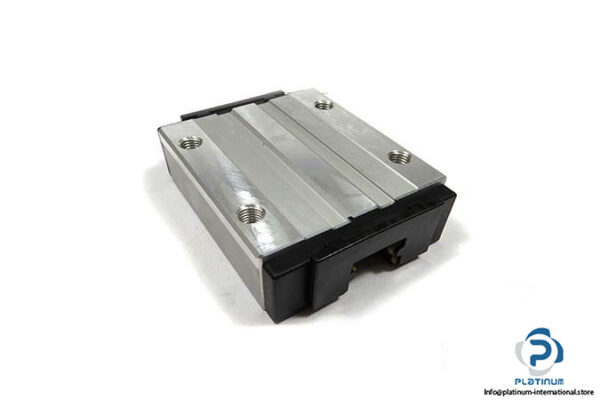

Type: Cam Roller Runner Blocks
MNR: R2041 215 10
Size: 25 mm
Accuracy class: E
Dimensions:
AxA1xA2xA3: 70x35x23x23.5 mm
BxB1xB2: 96x78x90 mm
HxH1: 36×29.9 mm
Dynamic Load rating C: 2700 N
Fy max / Fy0max: 800 N
Fz max: 440 N
Fz0max: 735 N
Moments:
Dynamic Torsional Moment Load Capacity Mt: 28 Nm
Dynamic Torsional Moment Load Capacity Mt max: 3.9 Nm
Dynamic longitudinal moment load capacity ML: 50 Nm
Dynamic longitudinal moment load capacity ML max: 7.2 Nm
