B&R Automation Security Module X67SC4122L12
B&R Automation Security Module X67SC4122L12 is a high-performance security module designed for use in industrial applications, ensuring reliable and safe operation. This module offers versatile input/output capabilities, high protection ratings, and robust construction, suitable for a wide range of applications.

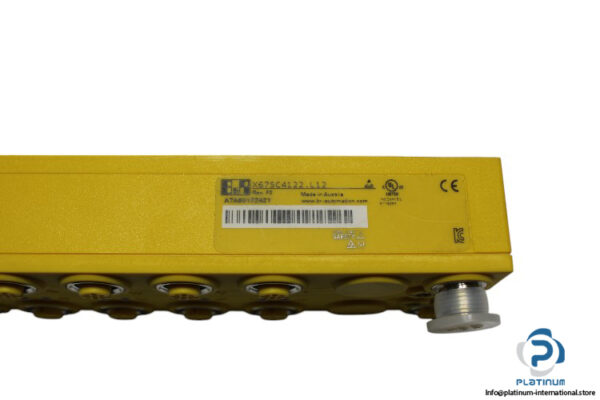

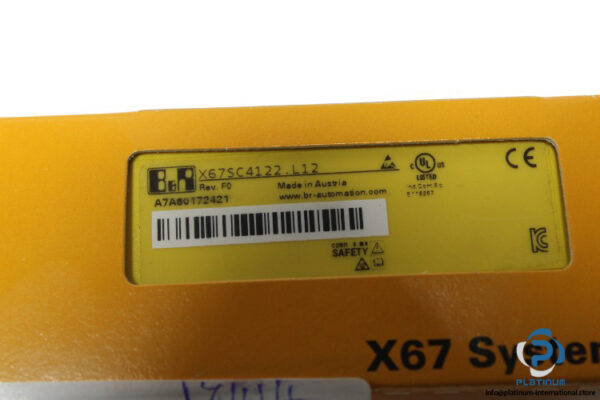

- Manufacturer: B&R Automation
- Type: Security Module
- Model: X67SC4122L12
- Part No.: A7A60172421
- Series: X67
- Rev.: F0
Technical Data:
- Nominal Voltage: 24 V DC
- Voltage Range: 18 to 30 V DC
- No. of Digital Inputs (DI): 8 safe digital inputs, sink circuit, 4.6 mA max.
- No. of Digital Outputs (DO): 4 safe digital outputs, type B with 2 A, source circuit
- No. of Pulse Outputs: 8 pulse outputs Push-Pull
- Link Address: X2X
- Max. I/O Cycle Time: 1 ms

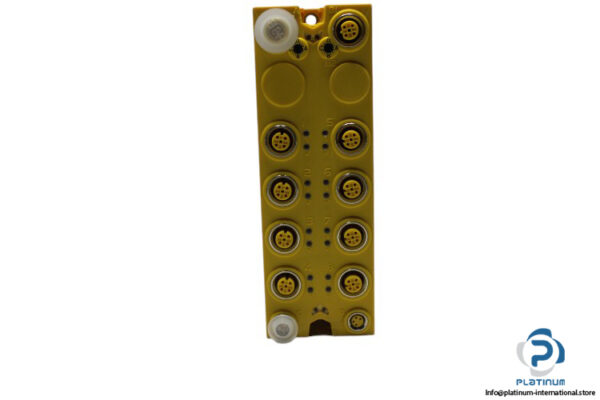

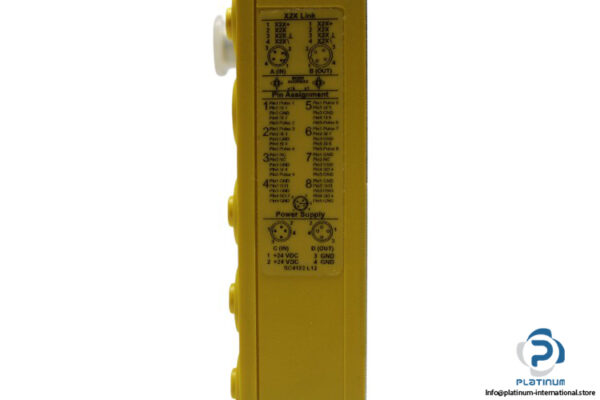

- Connection Type: X2X Link: M12, B-coded, Inputs/Outputs: M12, A-coded, I/O, power supply: M8, 4-pin
- Protection: Reverse polarity protection
- Degree of Protection: IP67
- Operation Temperature: -40 to 60°C
- Dimensions: 53 x 155 x 42 mm
