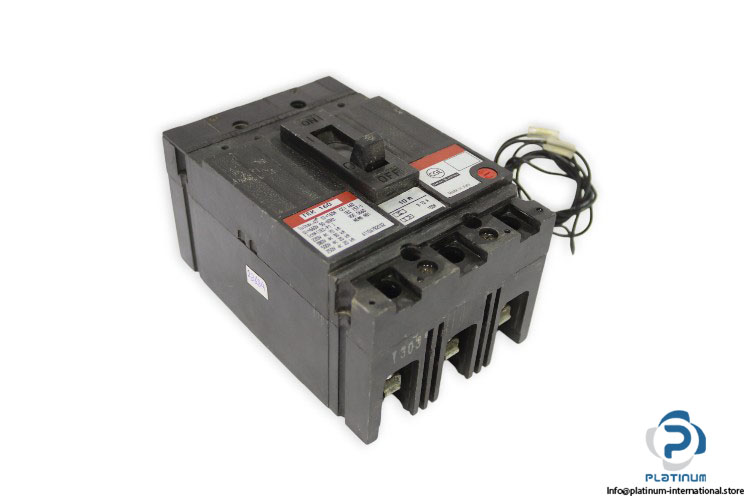

General Electric Switch TEK160 Circuit Breaker

The General Electric Switch (CGE) TEK160 Circuit Breaker is a reliable industrial protection device engineered for electrical safety and performance. With high short-circuit breaking capacity, adjustable current range, and multi-standard certification, it is suited for demanding industrial and commercial environments.

Manufacturer: General Electric Switch (CGE)
Type: Circuit Breaker
Model: TEK160

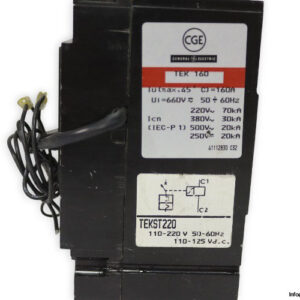

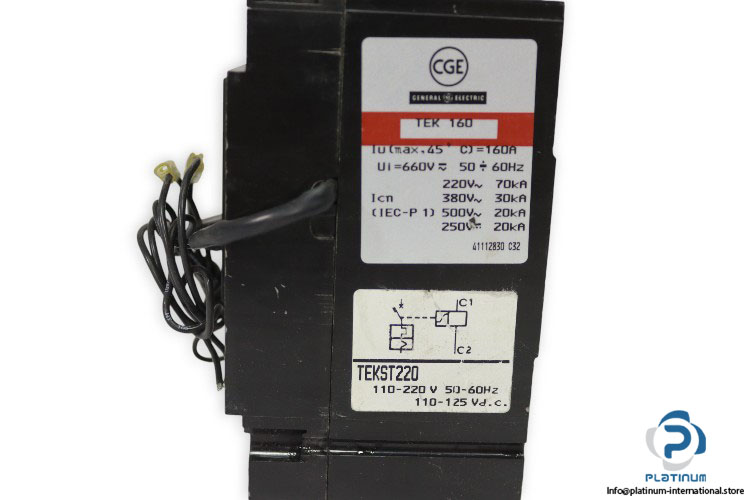

Coil Model: TEKST220
Ref. No.: 41112830 C32 / 41104782C32 C32

Technical Information

• Insulation Voltage: 660 V AC/DC
• Frequency: 50 / 60 Hz

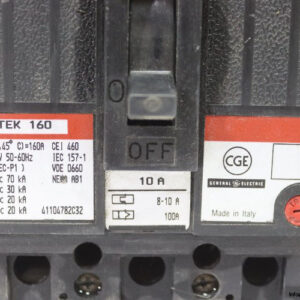

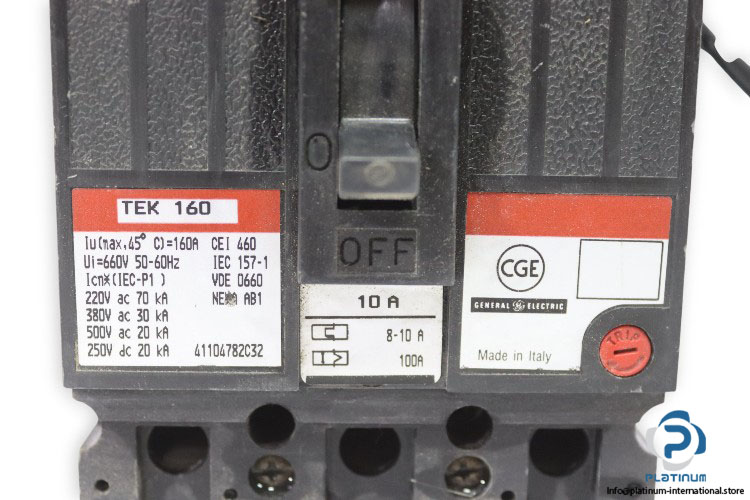

• Adjustable Current Range: 8 to 10 A
• Nominal Current: 100 A
• Short-Circuit Breaking Capacity Iu: 160 A at 45°C
• Coil Voltage: 110 to 220 V AC, 50/60 Hz “ 110 to 125 V DC
• Breaking Capacity Icn: 70 kA at 220 V AC; 30 kA at 380 V AC; 20 kA at 500 V AC; 20 kA at 250 V AC
• Certificate: IEC 157-1 / VDE 0660 / CEI 460 / NEMA AB1
• No. of Poles: 3 Poles
