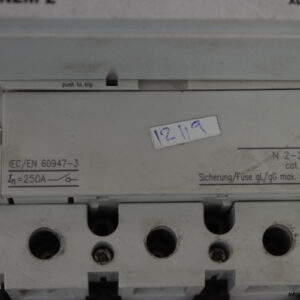

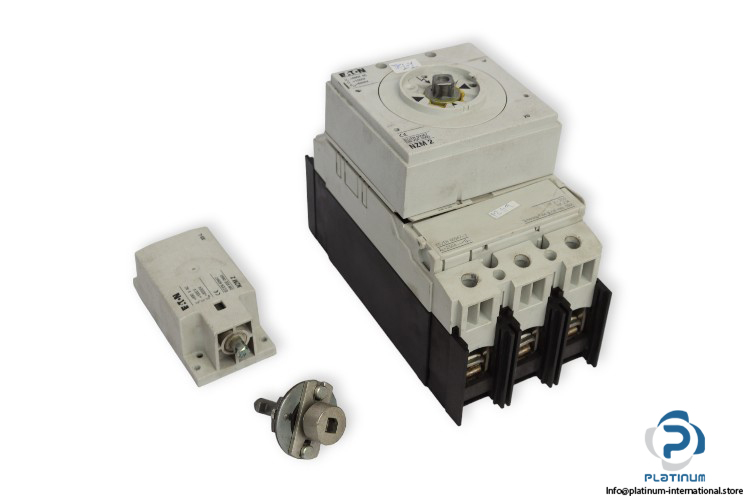

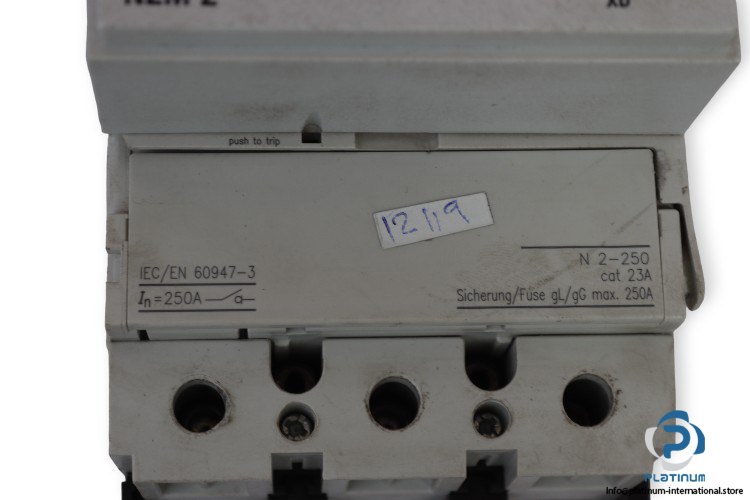

Eaton N 2-250 Circuit Breaker

Manufacturer: Eaton
Type: Circuit Breaker
Model: N2-250
Series: NZM

Application: Use in unearthed supply systems at 690 V
Rated operating voltage Ue: 690 V
Fuse Current: 250 A max.
Rated operational current: 250 A
Rated impulse withstand voltage at auxiliary contacts Uimp: 6000 V
Standard: IEC/EN 60947-3
No. of poles: 3
Number of operations per hour: 120 max
Handle type: Rocker lever
Pollution degree: 3
Degree of protection: IP20
Standard terminals: Screw terminal
Ambient operating temperature: -25 … 70°C
Dimensions: 142 x 185 x 105 mm
Attachment:

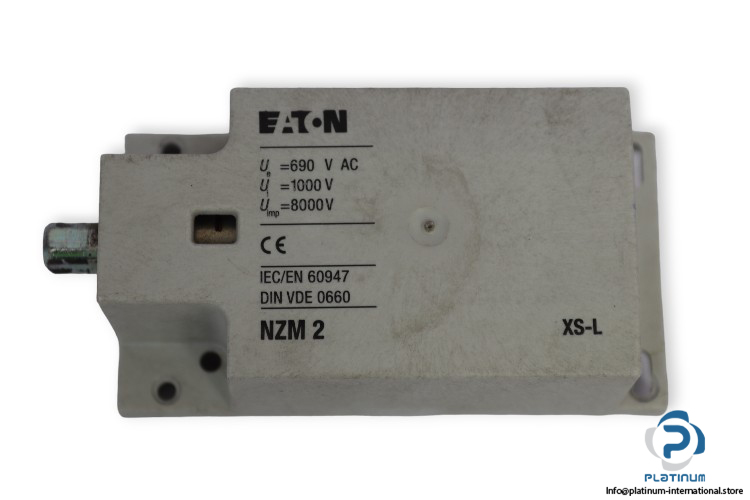

EATON NZM2 XS-L MAIN SWITCH
Manufacturer: Eaton
Type: Main Switch
Model: NZM 2 XS-L
Attachment:

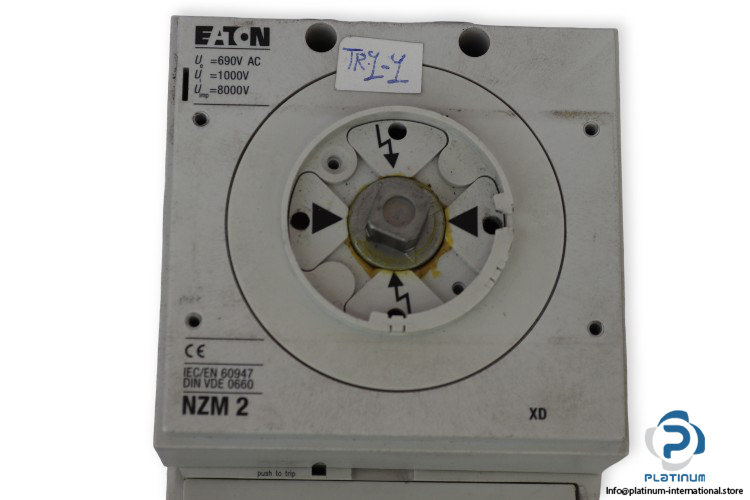

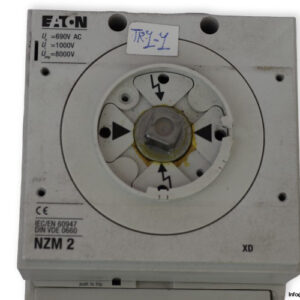

EATON NZM 2 XD ROTARY HANDLE
Manufacturer: Eaton
Type: Rotary handle
Model: NZM2 XD
