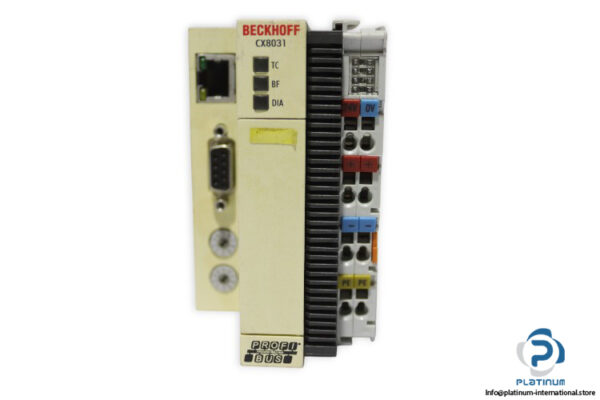

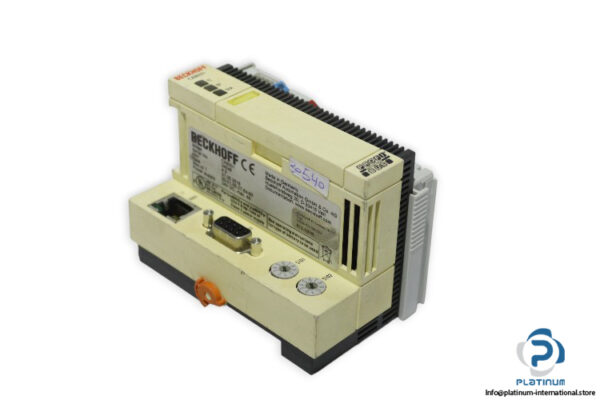

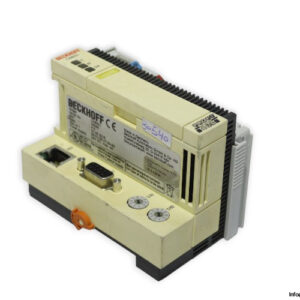

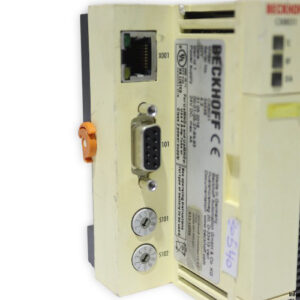

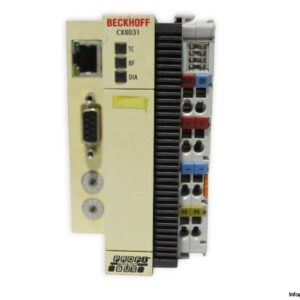

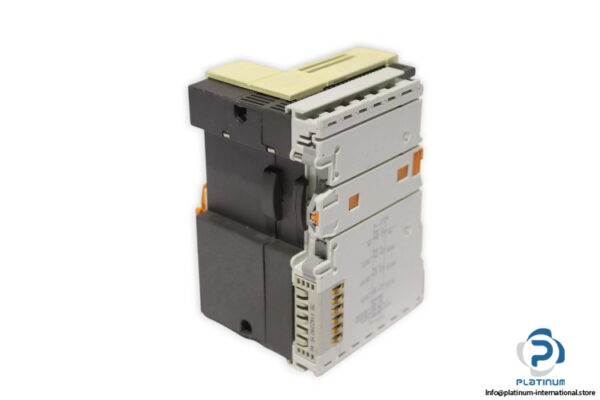

Beckhoff CX8031 Embedded PC with Arm9„¢ and PROFIBUS Slave
The Beckhoff CX8031 is a compact embedded PC designed for industrial automation applications, equipped with an Arm9„¢ 400 MHz processor and PROFIBUS slave interface. With integrated memory, passive cooling, and multiple communication ports, it provides efficient control and reliable system integration.

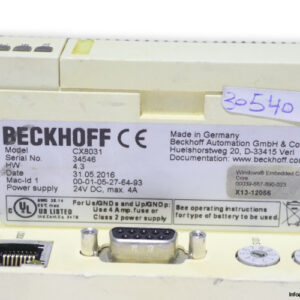

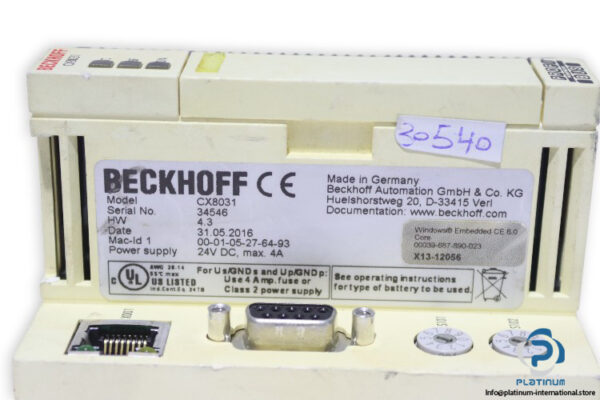

Manufacturer: Beckhoff
Type: Embedded PC with Arm9„¢ and PROFIBUS Slave
Model: CX8031
Serial No.: 34546
HW: 4.3
Mac-Id 1: 00-01-05-27-64-93
Code: X13-12056/00039-687-890-023
Technical information
- Power Supply: 24 V DC, max. 4 A
- Current Supply E-bus/K-bus: 2 A
- Max. Power Consumption: 3 W
- Processor: Arm9„¢, 400 MHz
- Number of Cores: 1
- Flash Memory: Slot for microSD card, 512 MB included (expandable)
- Main Memory: 64 MB DDR2 RAM (not expandable)
- 1-second UPS: Integrated (1 MB on microSD card)

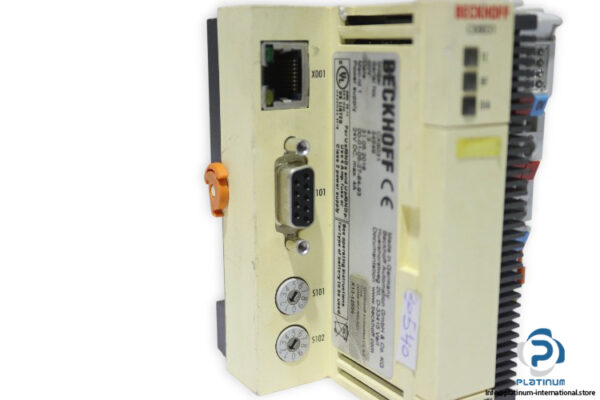

- Interfaces: 1 x RJ45 10/100 Mbit/s, 1 x USB device (behind front flap), 1 x bus interface
- Cooling: Passive
- Bus Interface: 1 x D-sub 9-pin socket with shielding
- Diagnostics LED: 1 x TC status, 2 x bus status
- Operating Temperature: 0 / 55 °C
- Protection Rating: IP20
