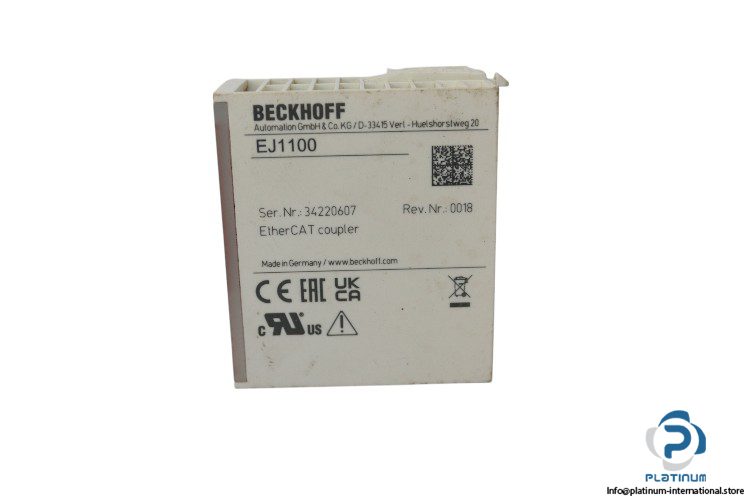

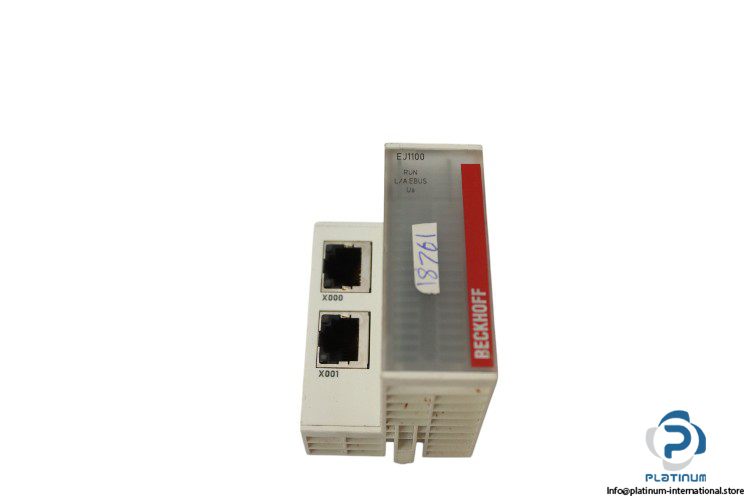

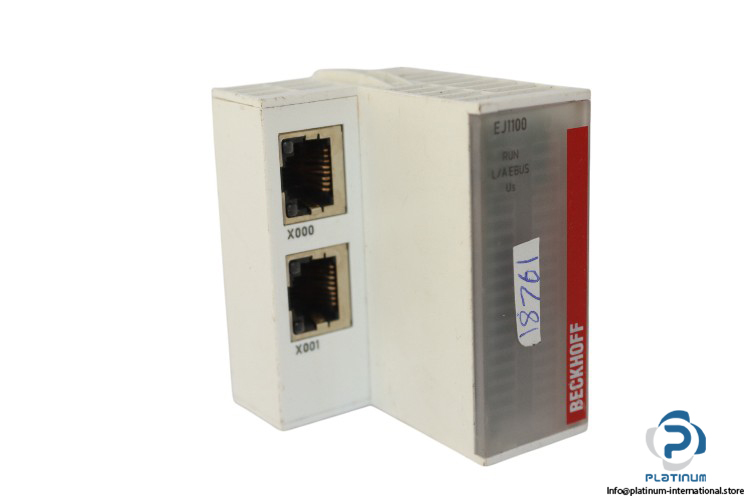

Beckhoff EJ1100 Ethercat Coupler

In stock11 unitsReady to ship

EtherCAT Coupler

The Beckhoff EJ1100 EtherCAT Coupler offers 24 V DC power supply, EtherCAT protocol, and 100 Mbit/s data transfer rate. It supports a maximum distance of 100 m between stations and operates in temperatures from -25°C to +60°C.

Manufacturer
BECKHOFF
SKU
1059664
Category
PLC Modules
Condition
New
Share
Massive Inventory
Global Shipping
Expert Support
Quality Guaranteed

Beckhoff EJ1100 EtherCAT Coupler

The Beckhoff EJ1100 EtherCAT Coupler is designed to connect EtherCAT devices in industrial Ethernet networks, enabling fast and reliable communication. This coupler operates with a 24 V DC power supply and provides a current supply of 2200 mA to the E-bus, ensuring seamless integration with EtherCAT systems. With electrical isolation of 500 V and a data transfer rate of 100 Mbit/s, it supports the EtherCAT protocol, ensuring high-speed data exchange. The coupler features a field wiring connection method with application-specific wiring levels on the signal distribution board and utilizes a 2 x 20-pin socket strip for the EJ plug-in module. Its compact design allows easy installation on signal distribution boards, and it offers a maximum distance of 100 m between stations using 100BASE-TX connections. The unit operates in environments with temperatures ranging from -25°C to +60°C, providing a reliable and robust solution for industrial networking needs.

Manufacturer: Beckhoff

Type: EtherCAT Coupler

Model: EJ1100

Offering a reliable and fast connection for EtherCAT systems, the EJ1100 EtherCAT Coupler ensures efficient communication and integration in industrial applications.

Power Supply24 V DC
Current Supply E-bus2200 mA
Electrical Isolation500 V
InstallationOn signal distribution board
Connection MethodField wiring: application-specific wiring level on the signal distribution board, EJ plug-in module: 2 x 20-pin socket strip
Distance Between Stations Max.100 m (100BASE-TX)
Data Transfer MediumIndustrial Ethernet/EtherCAT cable (min. Cat.5), shielded
ProtocolEtherCAT
DelayTyp. 1 µs
Data Transfer Rates100 Mbit/s
Bus Interface2 x RJ45
Degree of ProtectionIP20
MaterialPolycarbonate
Operating Temperature-25°C to +60°C
Dimensions (W x H x D)44 x 66 x 55 mm
