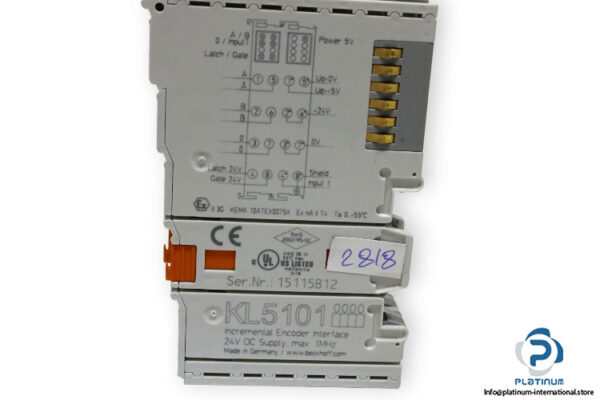

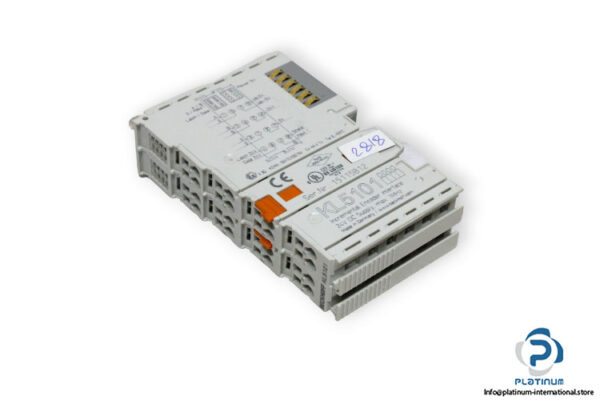

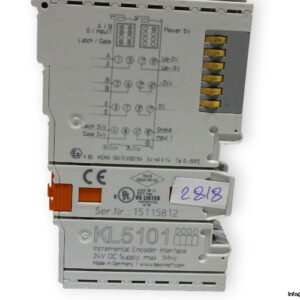

BECKHOFF KL5101 INCREMENTAL ENCODER INTERFACE

The Beckhoff KL5101 is a high-performance incremental encoder interface terminal designed to precisely read encoder signals in automation systems. With support for RS422 interface and 16-bit counter resolution, this module is ideal for accurate position detection and motion control in industrial environments.

Manufacturer: Beckhoff
Type: Incremental Encoder Interface
Model: KL5101
Serial No.: 15115B12

Technical Information

• No. of Channels: 1 incremental encoder + 1 input
• Encoder Operating Voltage: 5 V DC
• Encoder Output Current: 0.5 A
• Counter: 16 bits
• Power Supply: 24 V DC
• Current Consumption K-bus: 60 mA
• Interface: RS422
• Protection Rating: IP20
• Operating Temperature: -25 / +60 °C
• Dimensions (W x H x D): 24 x 100 x 68 mm
