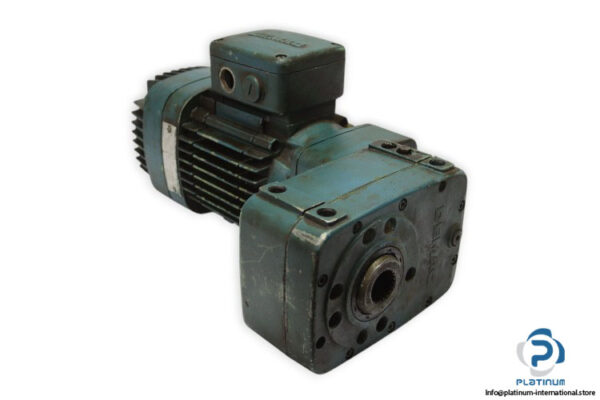

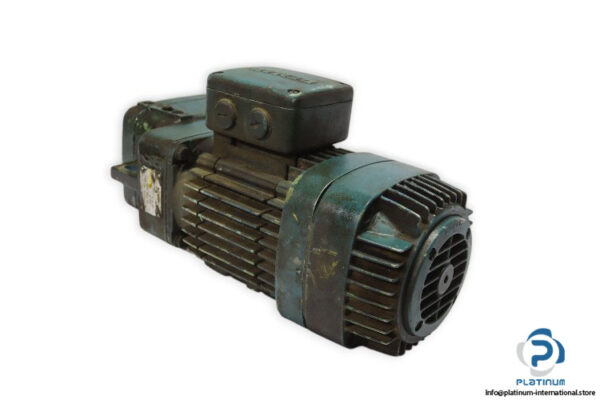

DEMAG KBF 80 A 8/2 GEAR MOTOR WITH MANNESMANN DEMAG AF05-M-1-1-30-0 GEAR
The Demag KBF 80 A 8/2 Gear Motor combined with the Mannesmann Demag AF05-M-1-1-30-0 Gear delivers reliable power transmission for industrial applications. Designed for efficiency, durability, and precise speed control, this unit is suitable for demanding operational cycles.
Manufacturer: Demag
Type: Gear Motor
Model: KBF 80 A 8/2
Part No.: 6315389

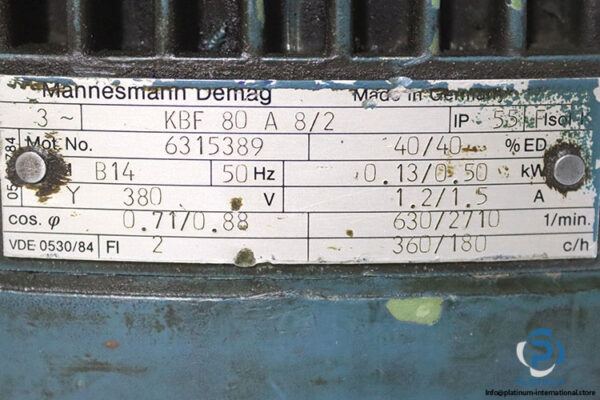

Technical Information
- Mounting: IM B14
- Frequency: 50 Hz
- Voltage: 380 V (Y connection)
- Power: 0.13 / 0.50 kW
- Current: 1.2 / 1.5 A
- Speed: 630 / 2710 rpm
- Power Factor (cos φ): 0.71 / 0.88
- Protection Class: IP55
- Insulation Class: F
- Duty Cycle: 40%
- Cycles per Hour (c/h): 360 / 180
- Standard: VDE 0530/84

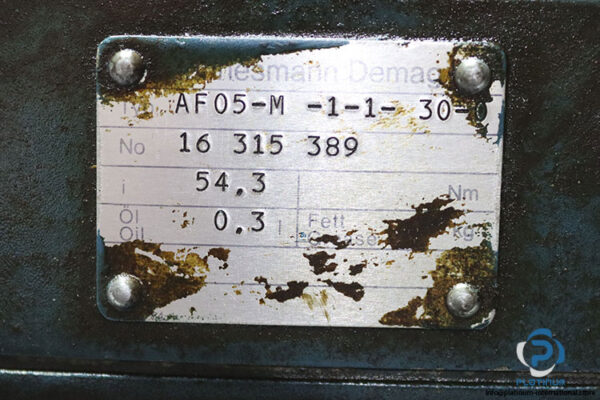

Attachment: Mannesmann Demag AF05-M-1-1-30-0 Gear
Manufacturer: Mannesmann Demag
Type: Gear
Model: AF05-M-1-1-30-0
Part No.: 16315389
Attachment Technical Information
- Ratio: 54.3
- Oil: 0.3 L
