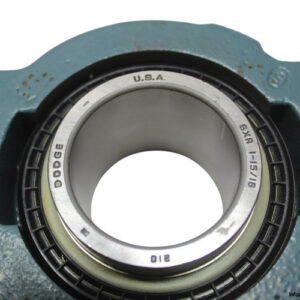

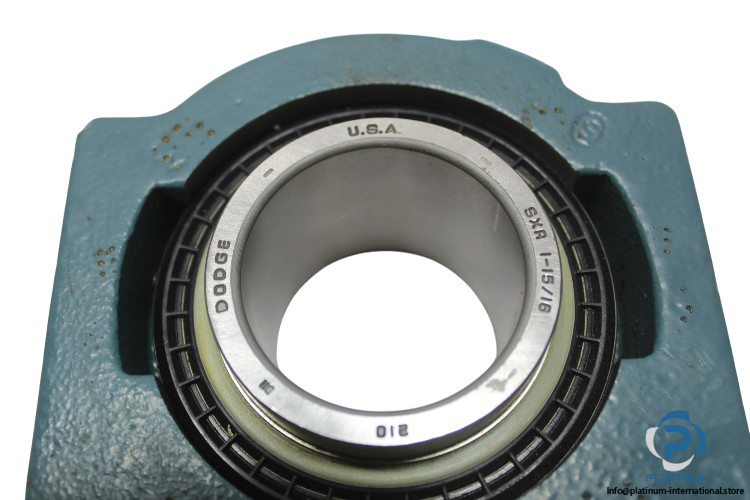

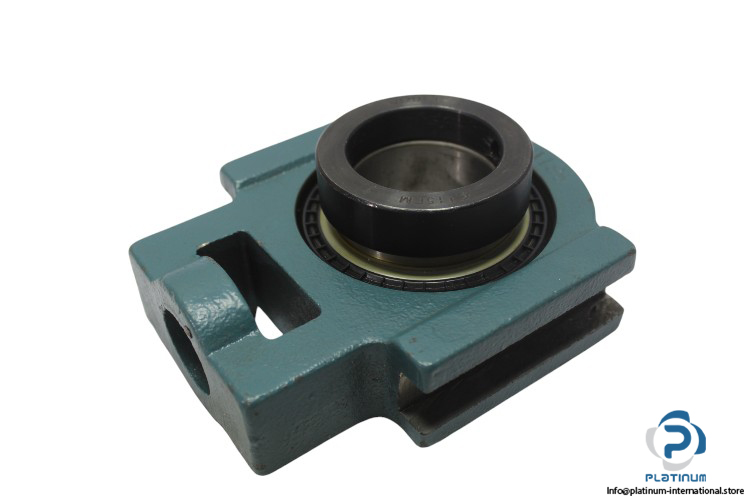

DODGE WSTU-SXR-115 TAKE UP BALL BEARING
This Dodge take-up ball bearing unit from the SXR Normal Duty Wide Slot series is designed for easy adjustment in belt and chain tensioning applications. Built with precision and durability, it supports demanding industrial environments with a wide inner ring and reinforced frame construction.
Manufacturer: Dodge
Type: Take Up Ball Bearing (SXR NORMAL DUTY WIDE SLOT)
Model: WSTU-SXR-115
Bearing Model: SXR 1-15/16
Series: 210
Technical Information
- Shaft Diameter d: 1.94 inch / 49.276 mm
- Overall Width: 57.2 mm
- Width of Inner Ring: 49.3 mm
- Overall Height: 147.8 mm
- Overall Length: 120.7 mm
- Diameter of Screw: 25.4 mm
- Frame Size: WS400
