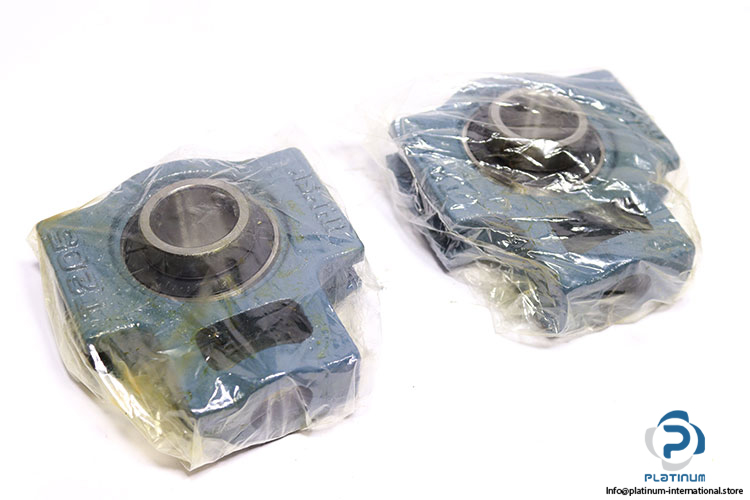

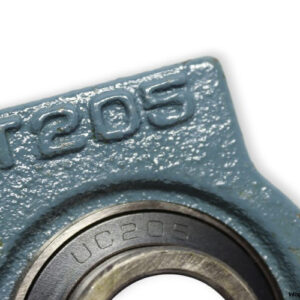

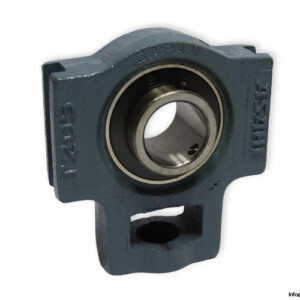

Asahi UCT205 Take UP Ball Bearing Unit
New
In stock5 unitsReady to ship
Manufacture: Asahi
Type:
take up ball bearing unit
Model:
UCT 205

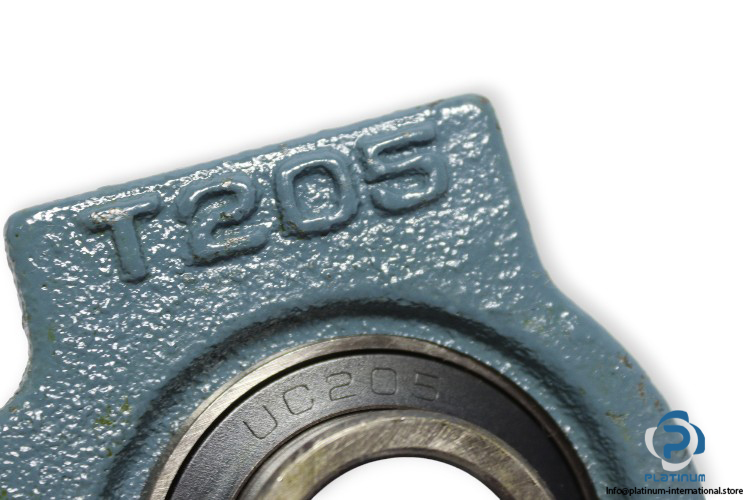

Housing No.:
T205
Bearing No.:
UC205
Massive Inventory
Global Shipping
Expert Support
Quality Guaranteed
Manufacture: Asahi
Type: take up ball bearing unit
Model: UCT 205
Housing No.: T205
Bearing No.: UC205

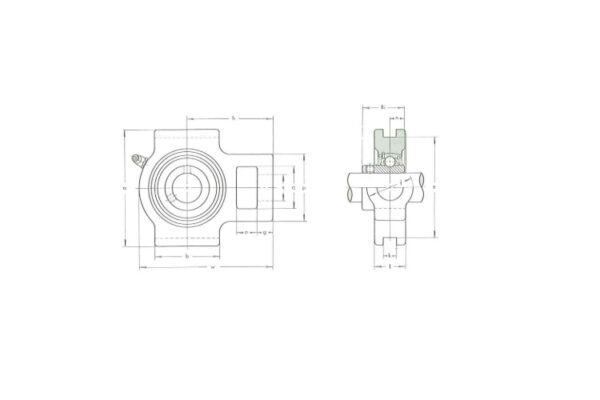

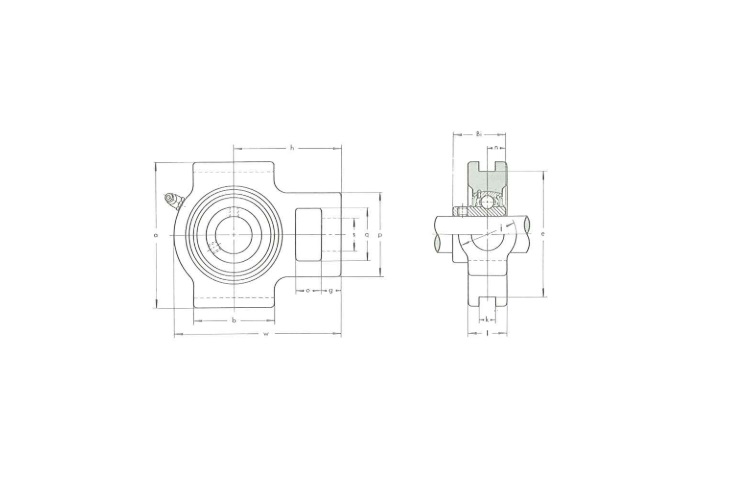

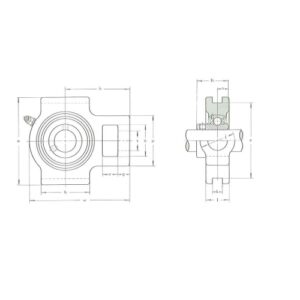

Shaft diameter d: 25 mm
Overall width i: 32 mm
Width of inner ring Bi: 34.1 mm
Width of piloting groove k: 12 mm
Overall height a: 89 mm
Height of attachment end p: 51 mm
Distance from attachment end face to center line of spherical seat diameter h: 62 mm
Overall length w: 97 mm
Diameter of attachment bolt hole S: 19 mm
Length of attachment slot o: 16 mm
Height of attachment slot q: 32 mm
Length of piloting groove b: 51 mm
Housing type: Take-up
Locking Device: Set Screw
Item per set: 2
