Asahi Ucft 204 Oval Flange Ball Bearing Unit
New
In stock329 unitsReady to ship
Bearing Unit
Asahi UCFT204 oval flange ball bearing unit with cast iron housing and 20 mm bore diameter, designed for stable shaft support in industrial machinery and conveyor systems.
Massive Inventory
Global Shipping
Expert Support
Quality Guaranteed

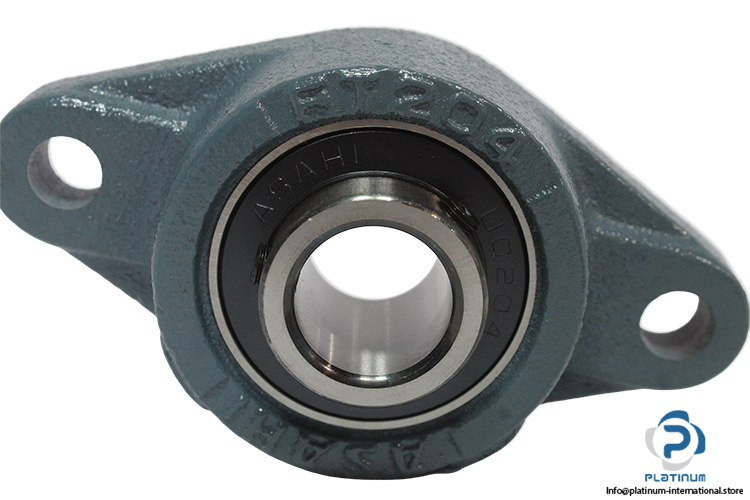

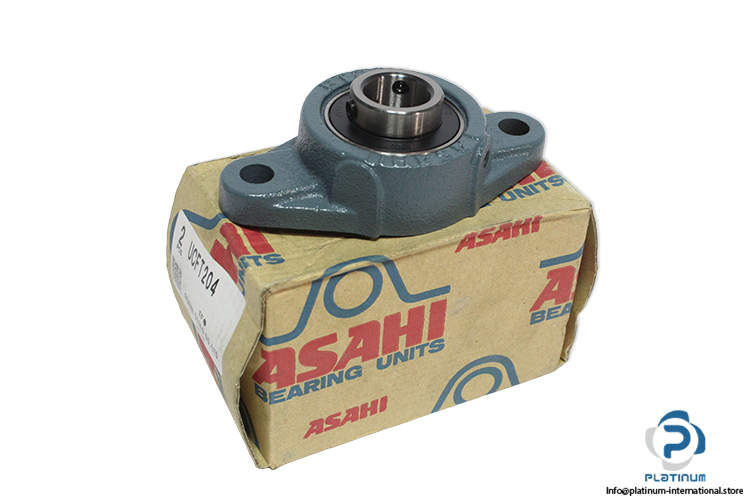

Asahi UCFT204 Oval Flange Ball Bearing Unit
The Asahi UCFT204 Oval Flange Ball Bearing Unit is a durable and precision-engineered bearing solution designed for stable shaft support in industrial applications. With its cast iron housing and oval flange mounting design, this unit ensures secure installation and reliable performance in demanding environments.
Manufacturer: Asahi
Type: Oval Flange Ball Bearing Unit
Model: UCFT204

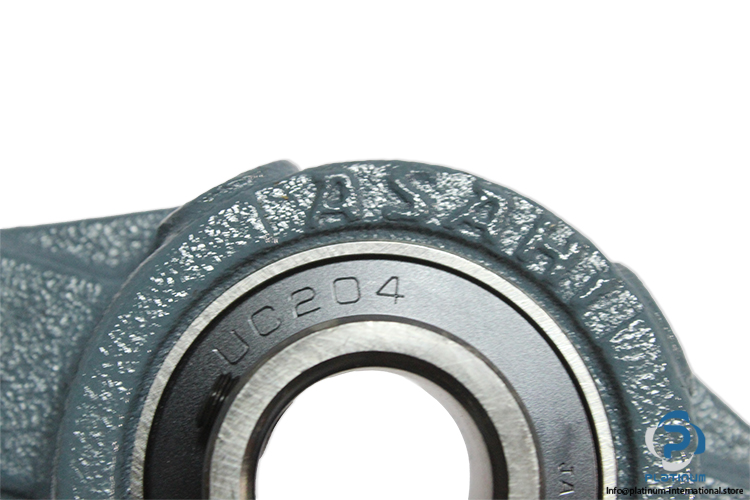

Bearing No.: UC204
Housing Number: FT204

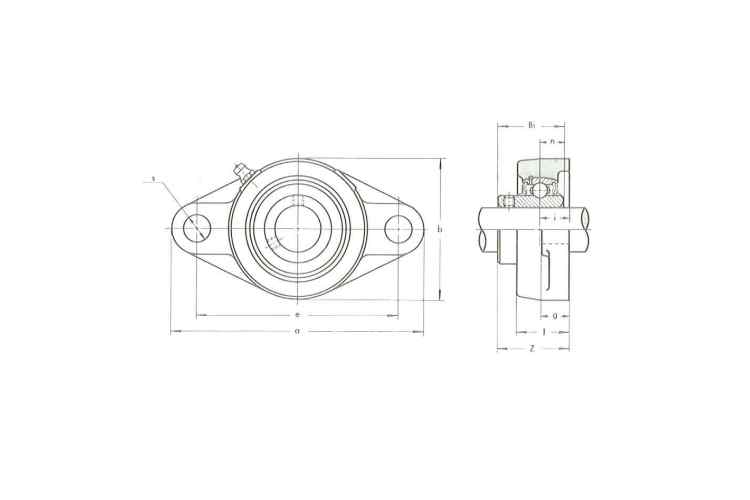

Dimensions:
Ideal for reliable shaft support in conveyors, industrial machinery, and rotating equipment.
| Bore Diameter (d) | 20 mm |
| Overall Length (L) | 112 mm |
| e | 89.7 mm |
| i | 14.3 mm |
| g | 11 mm |
| I | 25 mm |
| S | 10.5 mm |
| b | 60 mm |
| Z | 32.6 mm |
| Bi | 31 mm |
| n | 12.7 mm |
| Mounting | Oval Flange |
| Material | Cast Iron |
| No. of bolts | 2 |
| No. of item/set | 2 |
