Asahi UCP 202 Pillow Block Housing Unit
New
Available on request
Pillow Block Housing Unit
Asahi UCP202 pillow block housing unit with UC202 bearing, 15 mm bore, set-screw locking, and cast iron housing for industrial applications.
Massive Inventory
Global Shipping
Expert Support
Quality Guaranteed

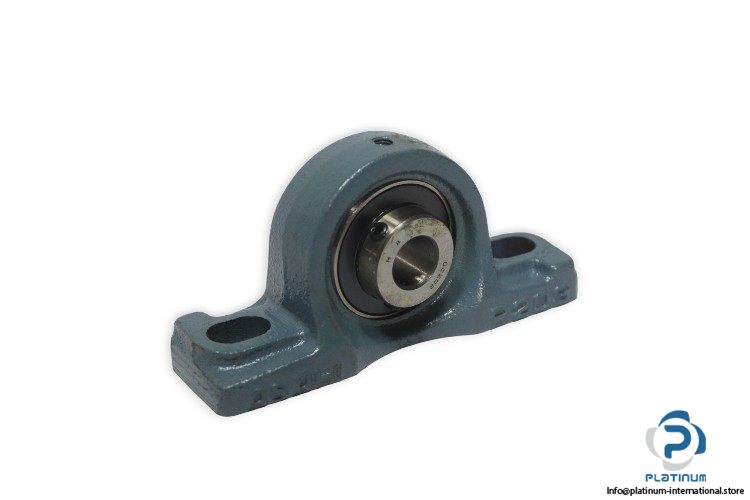

Asahi UCP202 Pillow Block Housing Unit
The Asahi UCP202 is a pillow block housing unit designed for reliable shaft support and stable bearing performance in industrial applications. It combines a robust cast iron housing with a UC202 insert bearing for dependable operation.

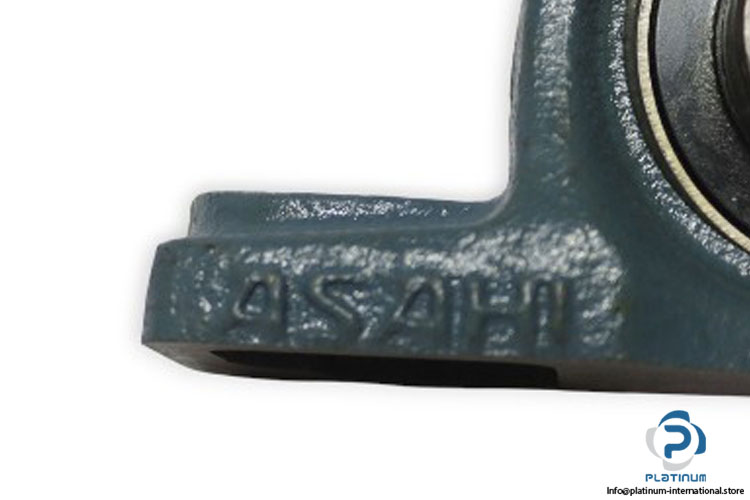

Manufacturer: Asahi
Type: Pillow Block Housing Unit
Model: UCP202

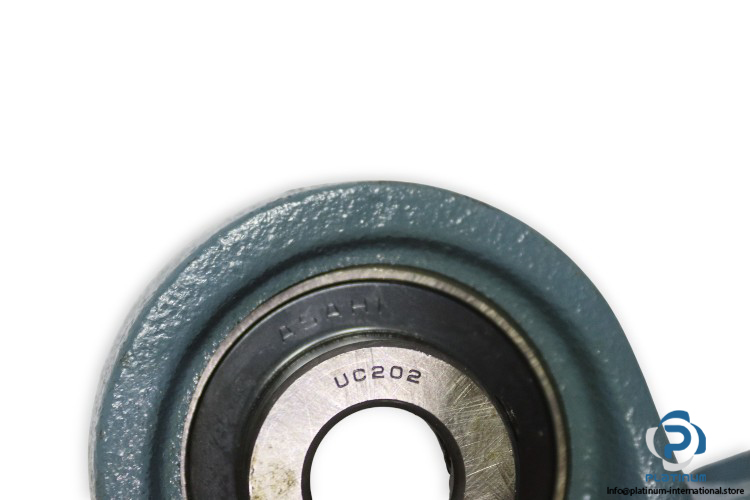

Bearing Number: UC202

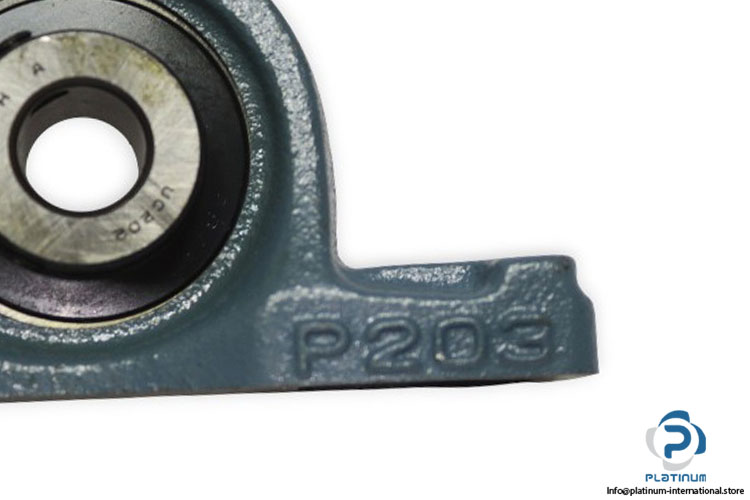

Housing Number: P203

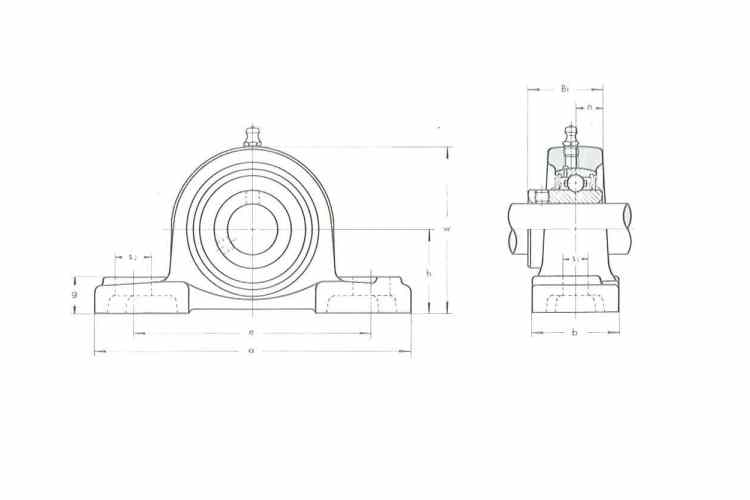

| Bore Diameter (d) | 15 mm |
| Width (b) | 38 mm |
| Inner Ring Width (Bi) | 31 mm |
| Height of Spherical Seat Center | 30.2 mm |
| Overall Height | 62 mm |
| Distance Between Attachment Bolts | 95 mm |
| Overall Length | 127 mm |
| Mounting | Pillow Block |
| Locking Devices | Set-Screw |
| Bore Type | Cylindrical Bore |
| Material | Cast Iron |
