Asahi Ucfc 213 Round Flange Ball Bearing Unit
New
Available on request
Bearing Unit
Asahi UCFC213 round flange ball bearing unit with cast iron housing and set screw locking, designed for stable shaft support and industrial applications.
Massive Inventory
Global Shipping
Expert Support
Quality Guaranteed

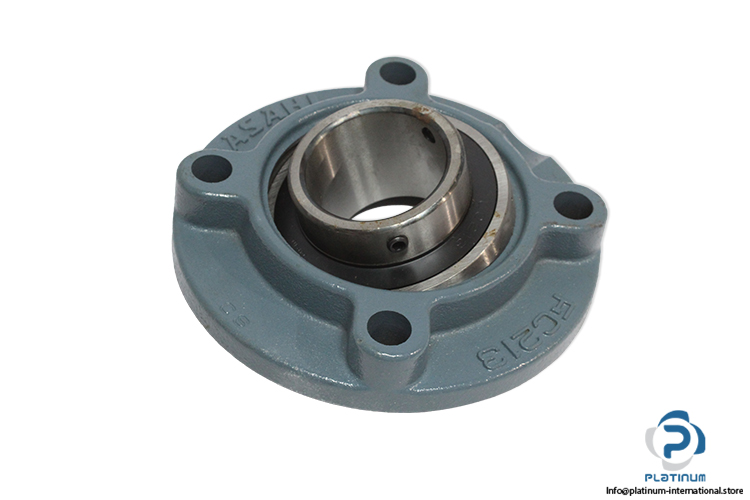

Asahi UCFC213 Round Flange Ball Bearing Unit
The Asahi UCFC213 Bearing Unit is a high-quality round flange mounted ball bearing designed for stable shaft support and reliable performance in industrial applications. Built with a robust cast iron housing and a secure set screw locking system, this unit ensures durability and easy installation.

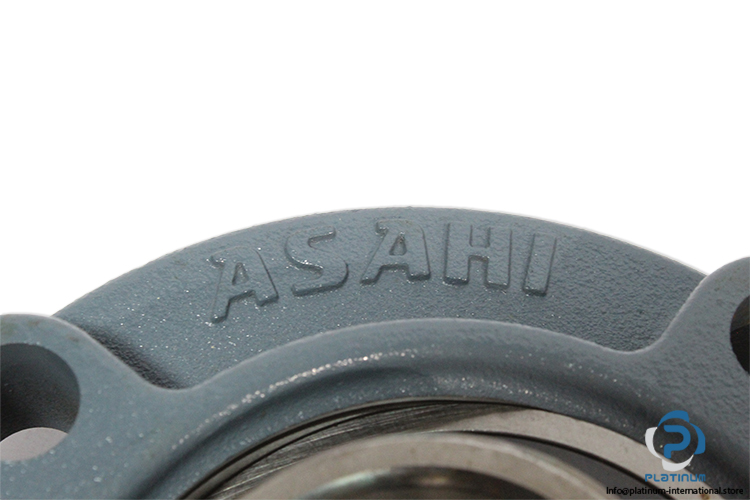

Manufacturer: Asahi
Type: Round Flange Ball Bearing Unit
Model: UCFC213

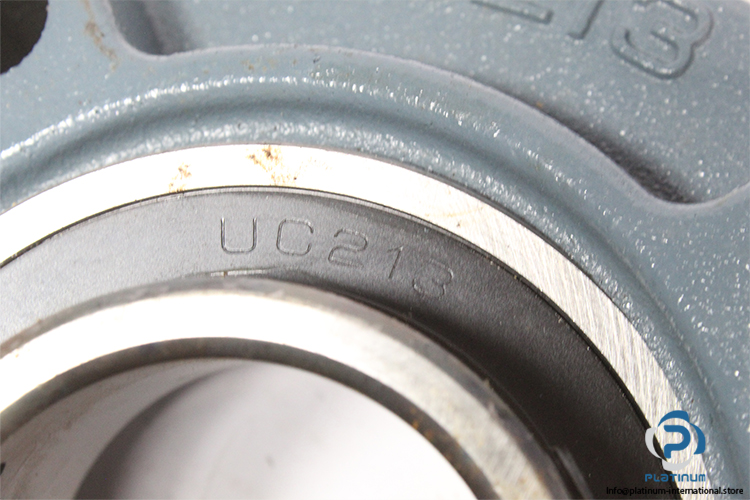

Bearing No.: UC213

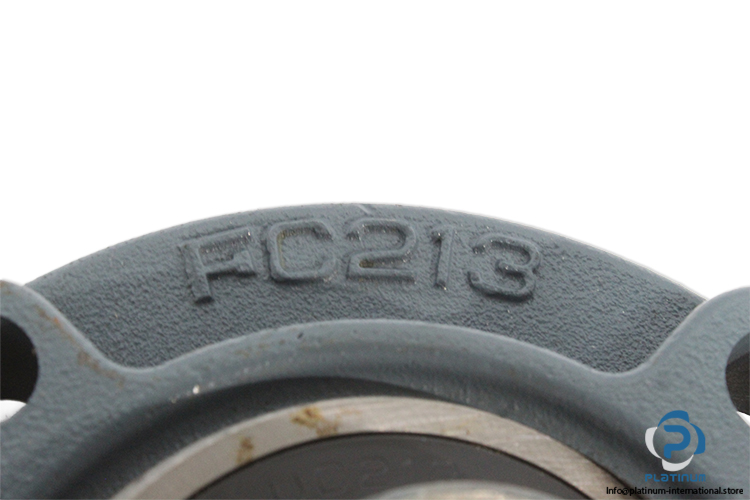

Housing Number: FC213

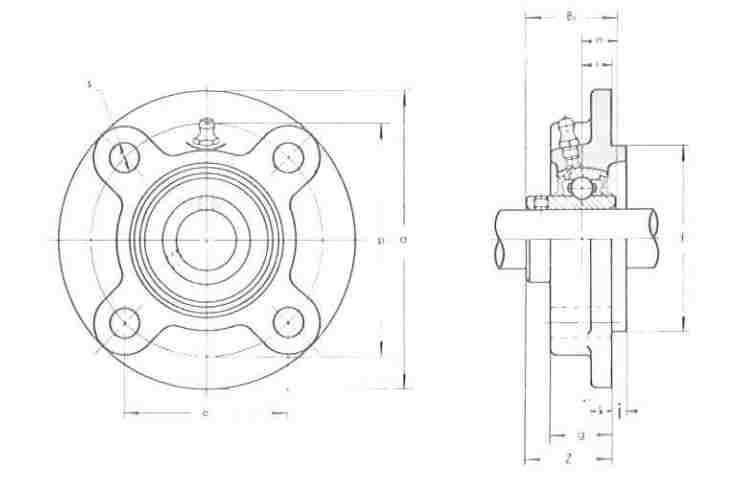

Dimensions:
Recommended for long service life and reduced maintenance in demanding industrial environments.
| Bore Diameter (d) | 70 mm |
| Overall Length (L) | 193 mm |
| e | 152 mm |
| i | 31 mm |
| g | 22 mm |
| I | 54 mm |
| S | 19 mm |
| Z | 75.4 mm |
| B | 74.6 mm |
| n | 30.2 mm |
| Mounting | Round flange |
| Material | Cast Iron |
| Locking Device | Set Screw |
| No. of bolts | 4 |
