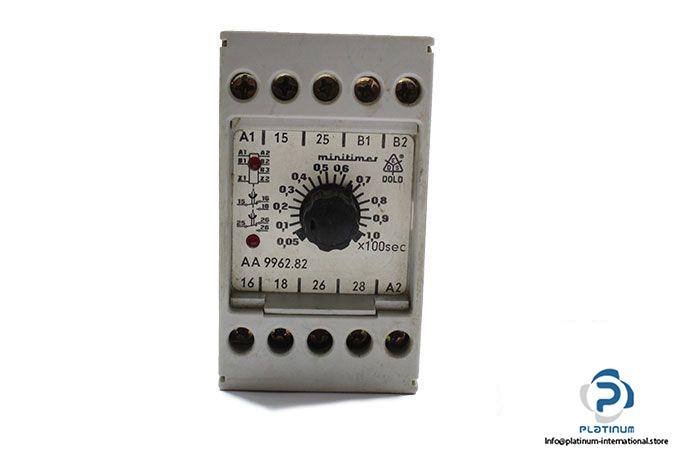

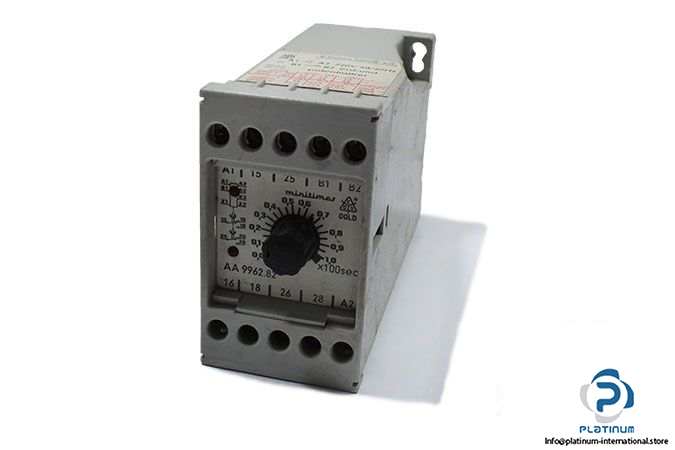

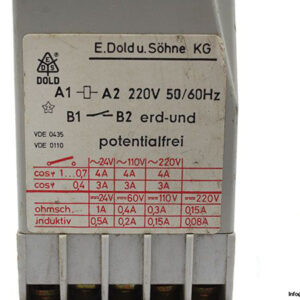

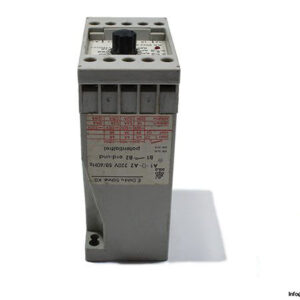

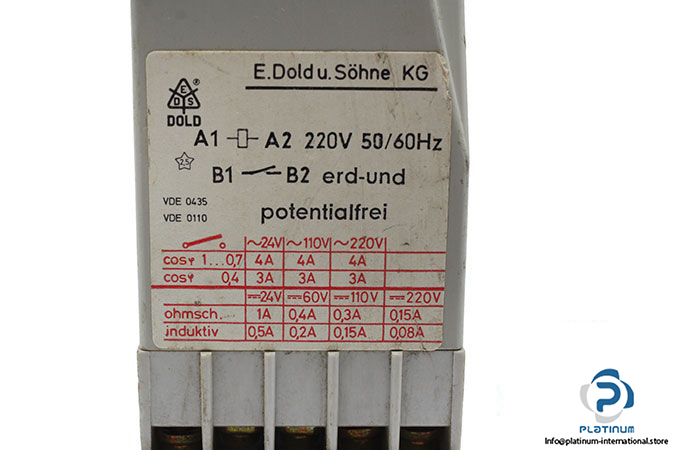

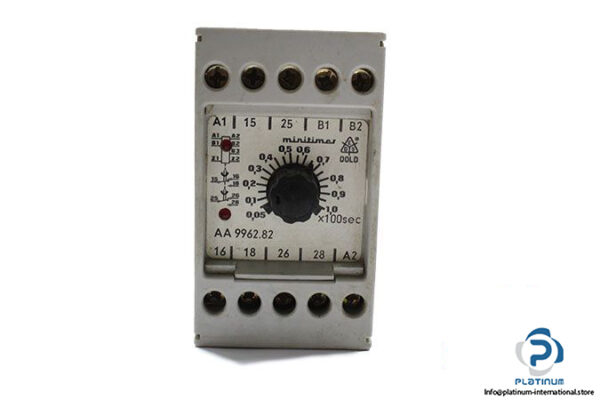

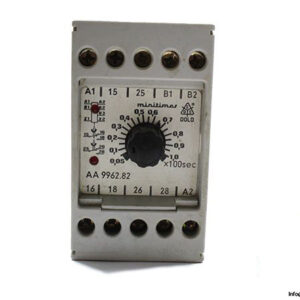

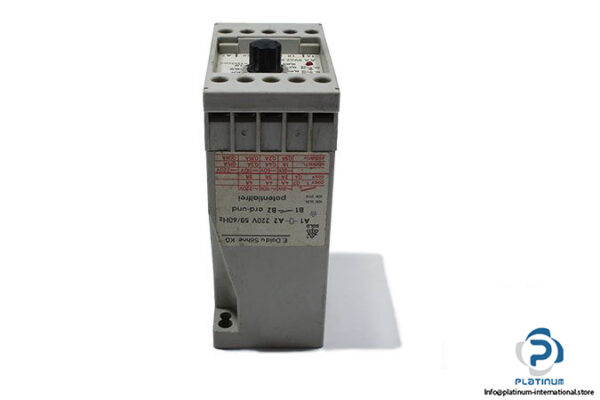

Manufacturer: DOLD

Type: Timer

Model: AA 9962.82

Applications: Time-dependent controllers

Coil Voltage: 220 VAC

Frequency: 50/60 Hz

Nominal Power Consumption: 3.5VAC ; 24 VDC, 1 W ; 48 VDC, 2 W ; 60 VDC, 2 W ; 110 VDC, 2 W ; 220 VDC, 3 W ; 240 VDC, 3 W

Output Contacts: 1 delayed changeover contact

Degree of Protection Housing/ Terminals: IP 40 / IP20

Electrical Life: 0.5 X 105 switching cycles

Time Ranges: 0.05 … 1 s

Ambient Temperature: – 20 … + 60°C

Dimensions: 45 X 77 X 127 mm

Weight: 0.24 Kg
