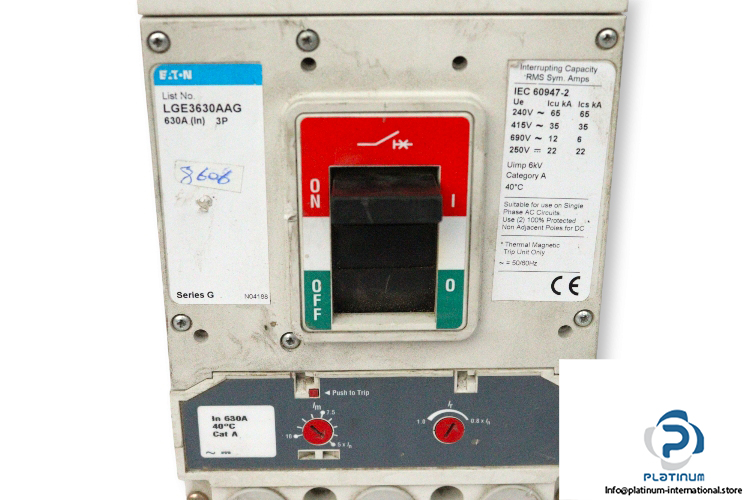

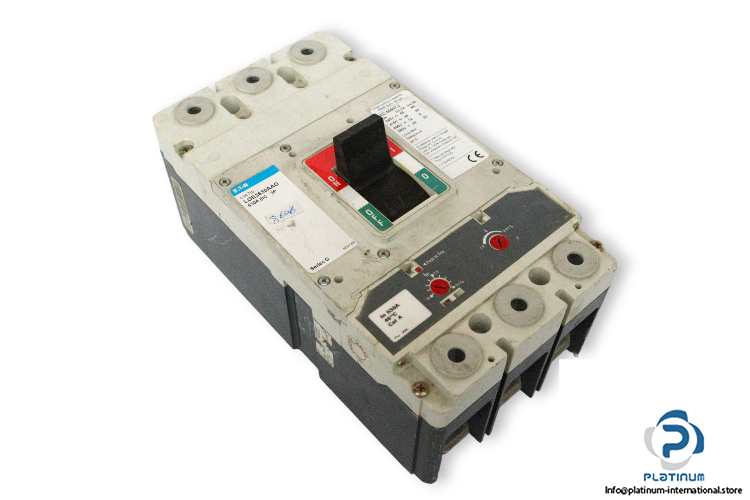

Manufacturer: EATON
Type: Circuit Breaker

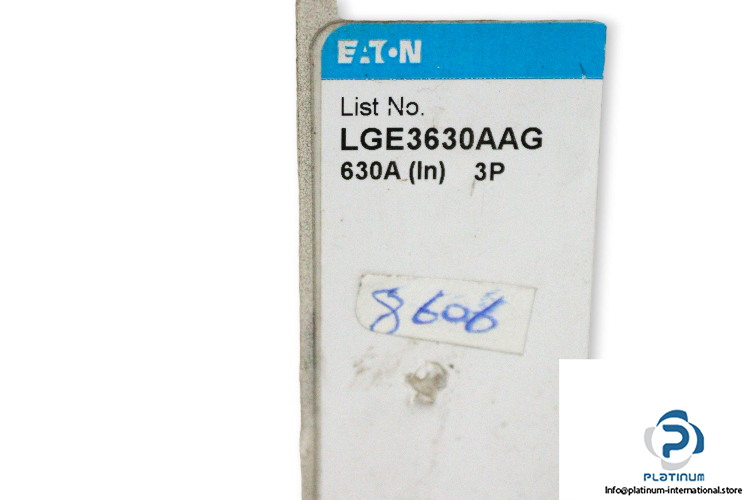

Model: LGE3630AAG

Series: G
Supply Voltage: 600 V AC
Rated Current: 630 A
Operating Frequency: 50 … 60 Hz
Poles No.: 3-Pole
Rated Impulse Voltage (Uimp): 6 kV
Service Switching Capacity:
240 V AC: 65 kA
415 V AC: 35 kA
690 V AC: 6 kA
250 V DC: 22 kA

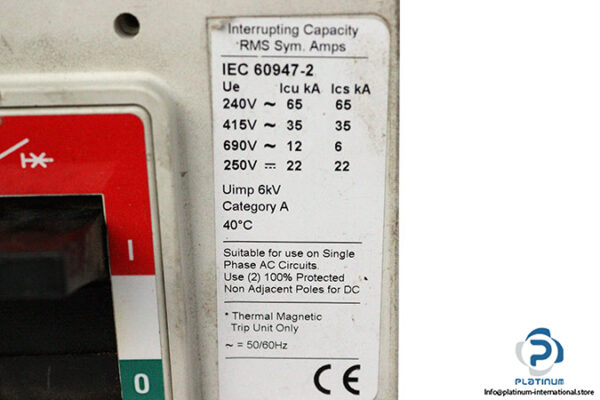

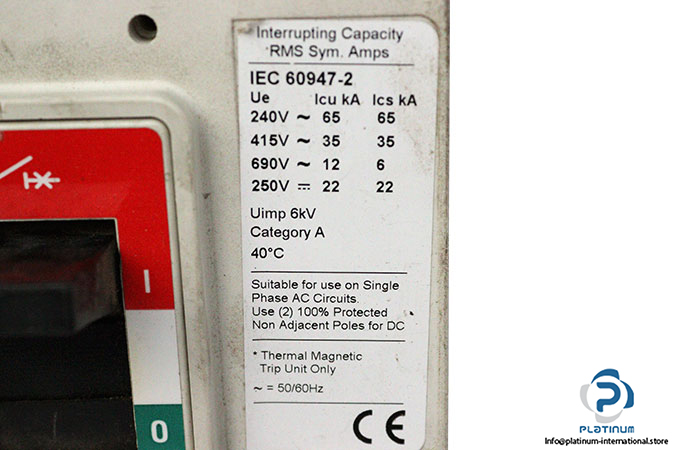

Breaking Switching Capacity:
240 V AC: 65 kA
415 V AC: 35 kA
690 V AC: 12 kA
250 V DC: 22 kA
Dimensions: 257.3 x 139.2 x 124.5 mm
