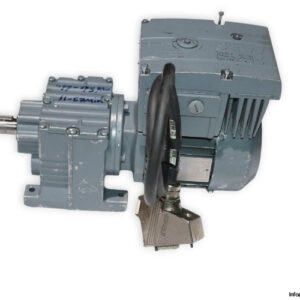

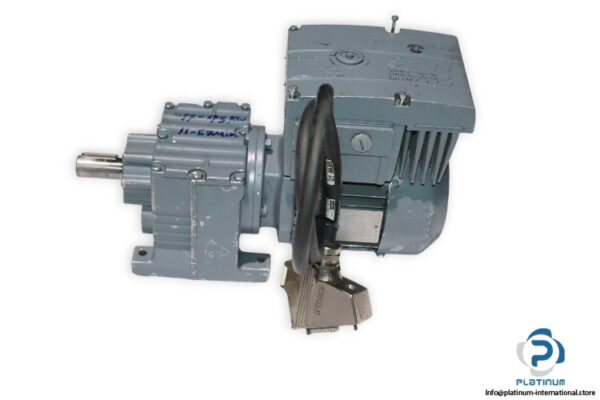

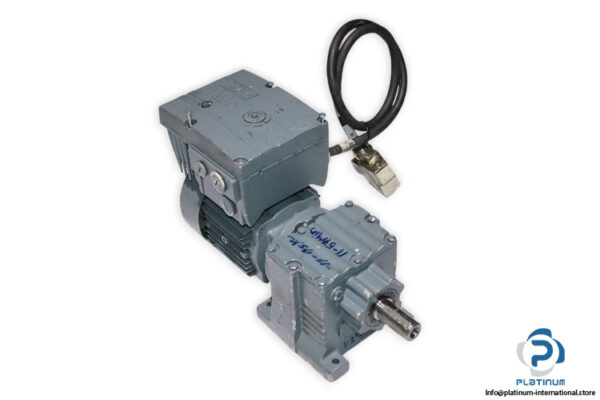

SEW R27 DT71D4/MM03/BW1 Helical-Gearmotor
The SEW R27 DT71D4/MM03/BW1 Helical-Gearmotor is a high-performance geared motor designed for efficient power transmission in industrial applications. It offers a robust and reliable solution with variable speed control, making it ideal for demanding environments.

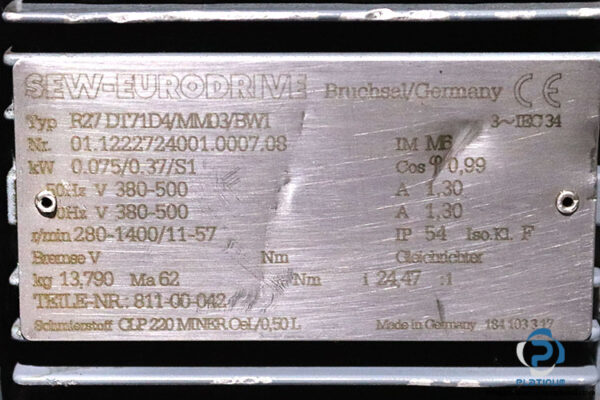

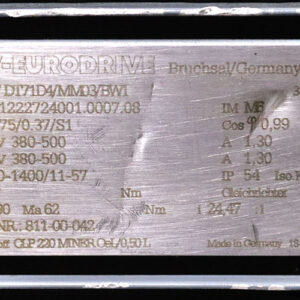

Manufacturer: SEW
Type: Helical-gearmotor
Model: R27 DT71D4/MM03/BW1
Part No.: 01.1222724001.0007.08
Technical Information:
- Gear Unit: R27
- Speed 50Hz [r/min]: 280 – 1400
- Output Speed [r/min]: 11 – 57
- Total Ratio: 24,47
- Output Torque [Nm]: 62
- Service Factor SEW-FB: 2,10
- Mounting Position: M6
- Lubricant / Volume [l]: CLP 220 Miner.Oil / 0,50
- Output Shaft End: 25x50mm lg.
- Motor Power [kW]: 0.075 / 0.37
- Motor Frequency [Hz]: 50
- Cyclic Duration Factor S1-S10: S1
- Multi Range-Voltage 50Hz [V]: 380-500
- Multi Range-Voltage 60Hz [V]: 380-500
- MM Rated Main Current [A]: 1.30
- MM Rated OP Current [A]: 1.60
- Thermal Cl.[°C] / Enclosure[IP]: (F) / 54

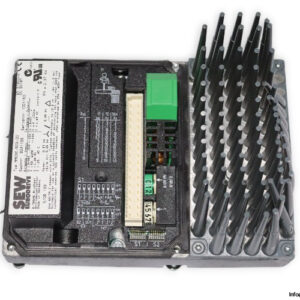

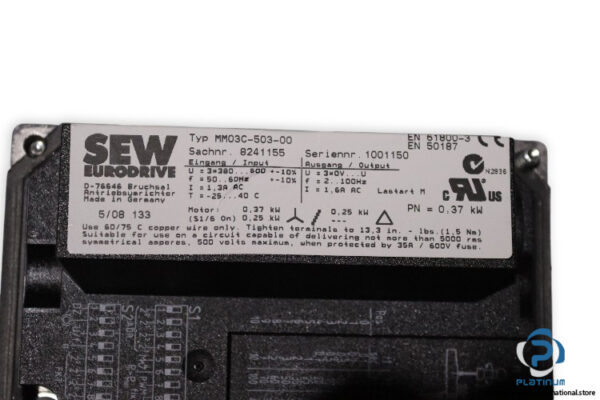

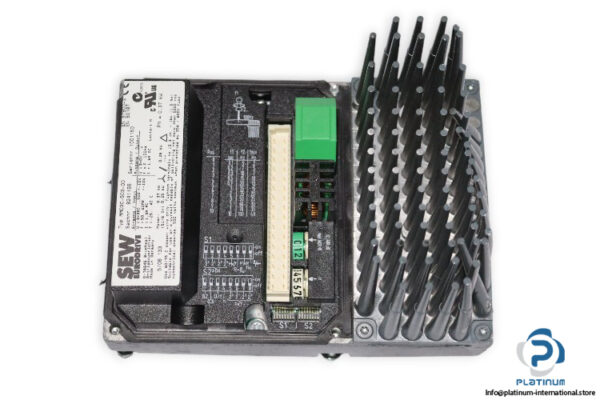

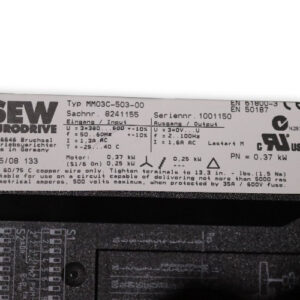

Attached with SEW MM03C-503-00 MOVIMOT Inverter Drive:
Input:
- Supply Voltage: 3-Phase 380 to 500 V AC
- Rated Current: 1.3 A
- Frequency: 50 / 60 Hz
Output:
- Rated Voltage: 3-Phase 0 / 380 to 500 V AC
- Rated Current: 1.6 A
- Frequency: 2 to 100 Hz
This SEW Helical-Gearmotor, coupled with the MOVIMOT inverter drive, ensures precise speed control, energy efficiency, and superior reliability for industrial automation systems.
