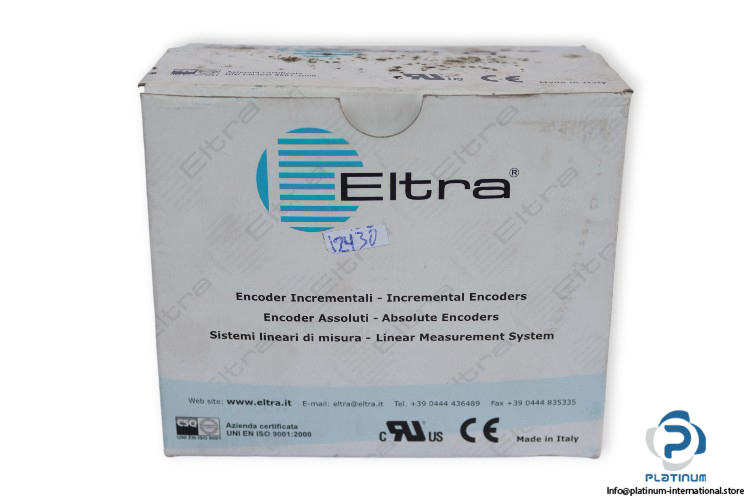

ELTRA EL63E1000S824L8X3MR INCREMENTAL ENCODER

Engineered for precision and durability, the ELTRA EL63E1000S824L8X3MR is a high-resolution incremental encoder, ideal for rotary measurement in industrial automation systems. Featuring a solid shaft and radial output, it ensures accurate feedback in dynamic motion control environments.

Manufacturer: ELTRA
Type: Incremental Encoder

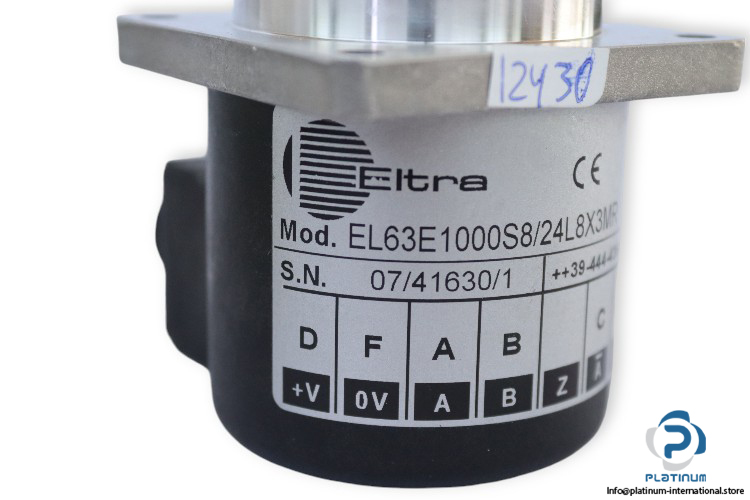

Model: EL63E1000S824L8X3MR
Serial No.: 07/41630/1

Technical Information

• Power Supply: 8 / 24 V DC
• Principle of Operation: Incremental
• Shaft Type: Solid Shaft
• Mounting Type: Centering Square Flange
• Electronic Interface: Line Driver
• Resolution: 1000 ppr
• Shaft Diameter: 8 mm
• Max Rotation Speed: 3000 rpm
• Output Type: MIL Connector (7 Pins)
• Protection Degree: IP54
• Direction Type: Radial
• Construction Size (Diameter): 63 mm
• Max Output Frequency: 250 kHz
• Operating Temperature: -10 / +60°C
• Measurement Type: Rotary
• Type of Sensor: Optical
