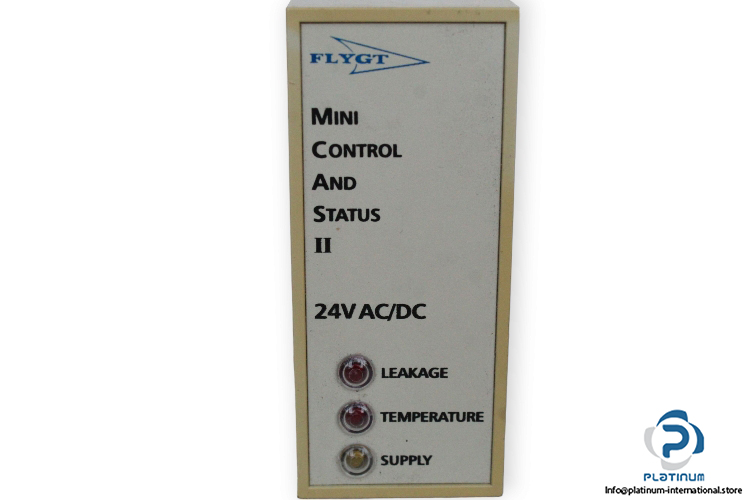

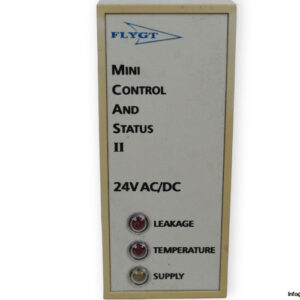

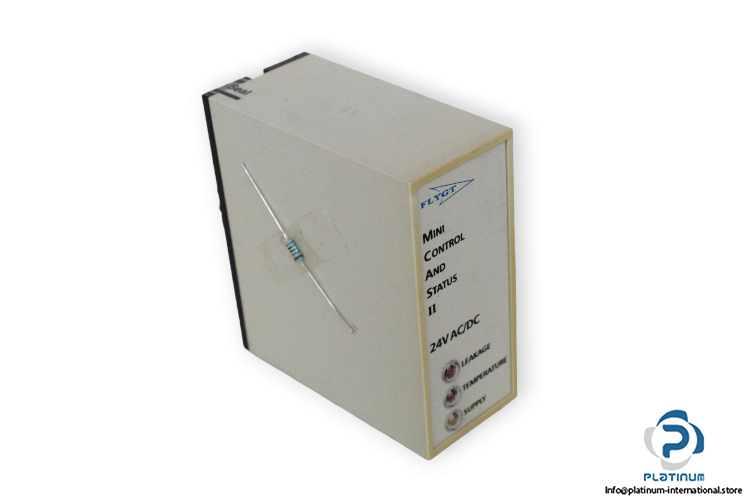

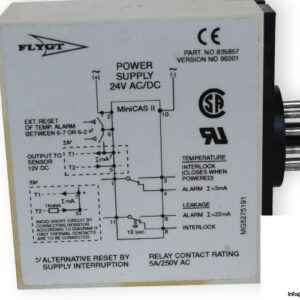

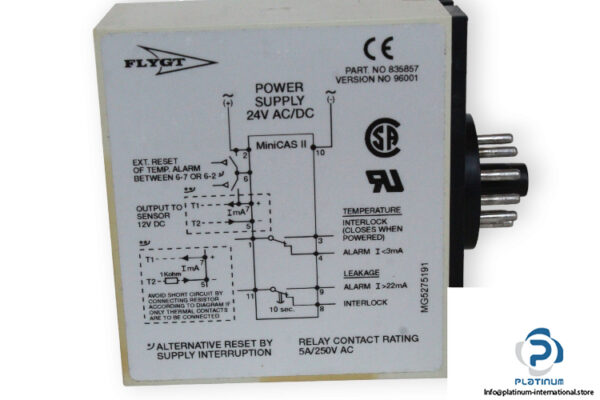

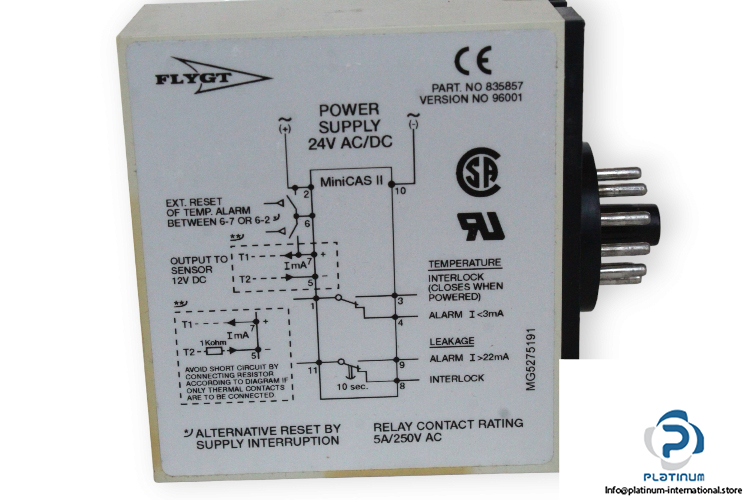

Manufacture: Flygt
Type: Supervision Relay

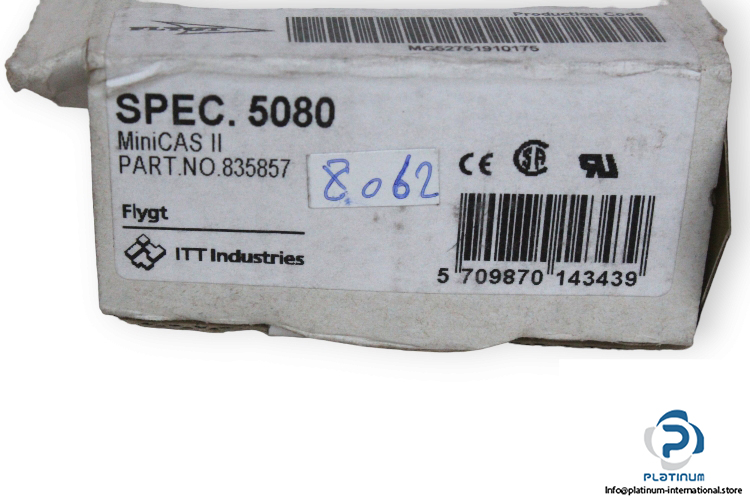

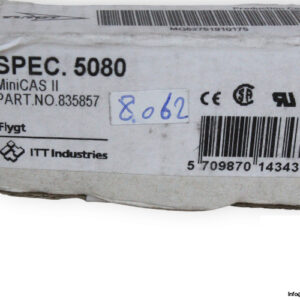

Model: SPEC5080
Part No.: 835857

Supply voltage: 24 V AC/DC
Output: 2-Change over contact
Relay contact rating: 250 V AC / 5A
Voltage to sensor: 12 V DC +/–5%
Values of operation: 3 mA < I < 22 mA = OK condition, I < 3 mA = High Temperature (or interruption), I > 22 mA = Leakage (or short circuit), delay 10 sec
Power required: 5 VA
Temperature: -25 … +60°C
Dimensions: 33 x 79 x 75 mm
