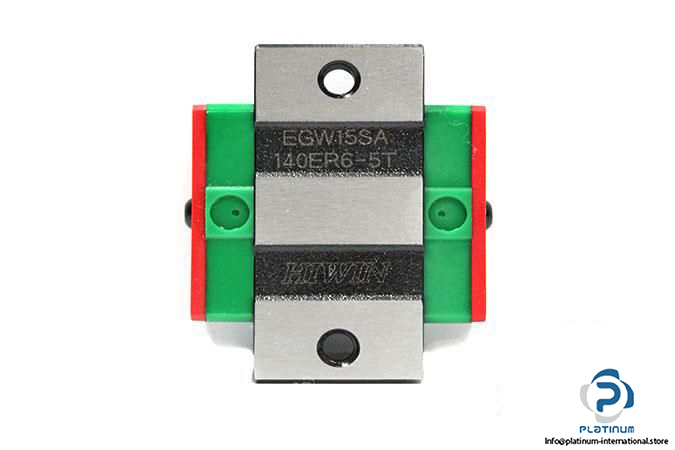

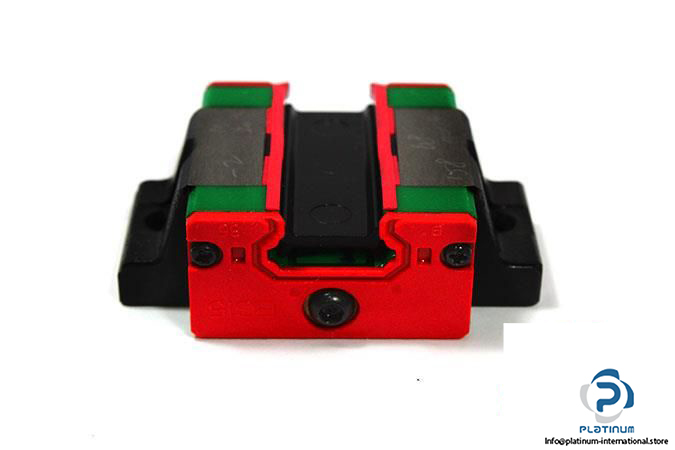

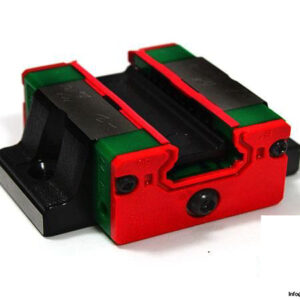

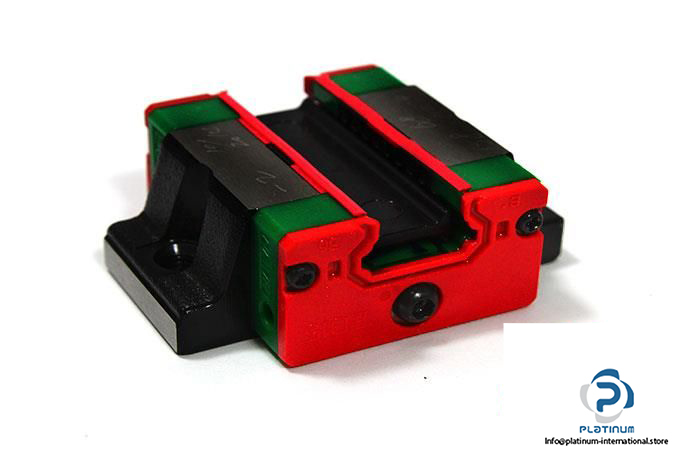

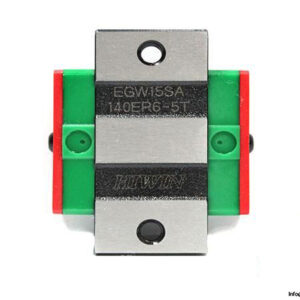

HIWIN EGW15SA 140ER6-5T LINEAR GUIDEWAY BLOCK

The Hiwin EGW15SA 140ER6-5T is a precision-engineered linear guideway block designed for medium load applications. With a compact 15 mm rail size and top mounting flange type, it ensures smooth linear motion and high rigidity, suitable for CNC systems, industrial automation, and machinery assembly.

Manufacturer: Hiwin
Type: Linear Guideway Block
MNR: EGW15SA 140ER6-5T
Size: 15 mm

Technical Information

• Block Height: 19.5 mm
• System Height: 24 mm
• Block Width (W): 52 mm
• Block Length (L): 40.1 mm
• Distance Between Holes: 41 mm
• Thread Size: M3 × 16
• Rail Width: 15 mm
• Rail Height: 12.5 mm
• Block Type: Flange
• Load Type: Medium Load
• Block Mounting Type: From Top
• Basic Dynamic Load Rating: 5.35 kN
• Basic Static Load Rating: 9.40 kN
