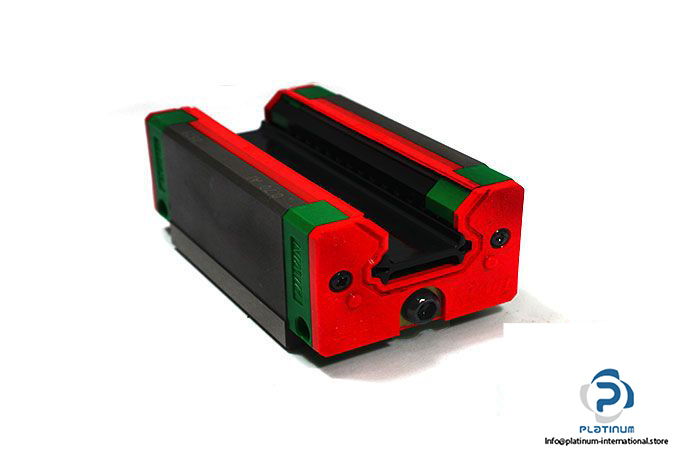

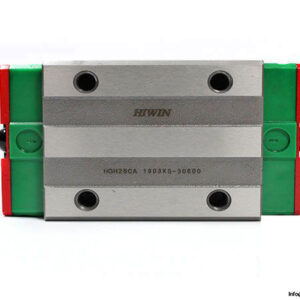

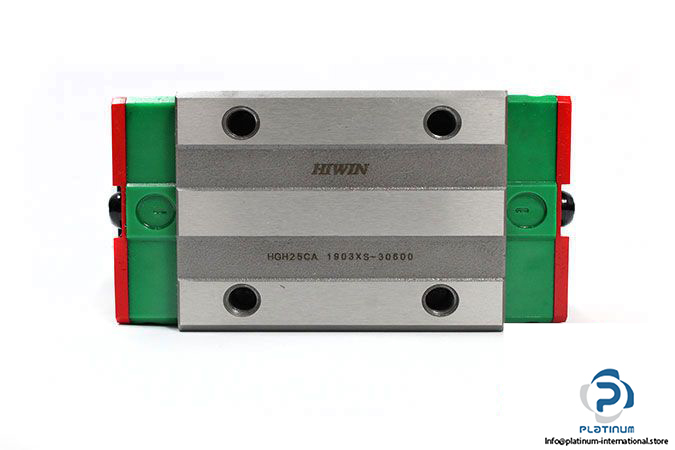

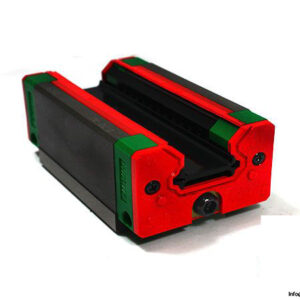

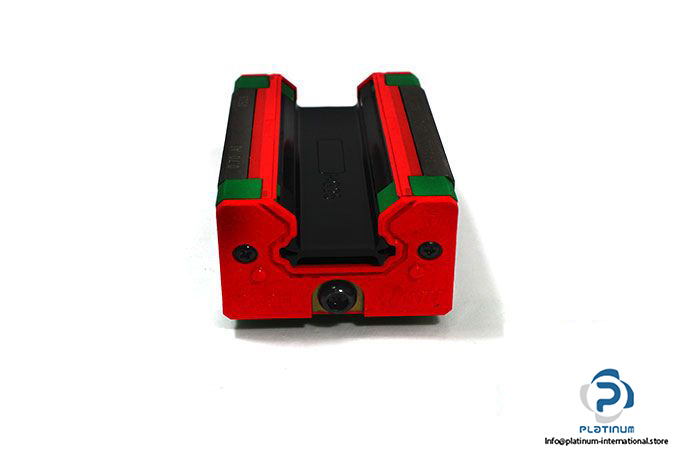

HIWIN HGH 25CA LINEAR GUIDEWAY BLOCK

Designed for high-precision and heavy-load motion systems, this Hiwin square linear guideway block ensures smooth linear movement with excellent rigidity and load capacity. Ideal for demanding industrial automation and CNC applications.

Manufacturer: Hiwin
Type: Linear Guideway Block
MNR: HGH 25CA 1903XS-30600

Technical Information

• Size: 25 mm
• Total Height (H): 40 mm
• Block Width (W): 48 mm
• Block Length (L): 84 mm
• Block Height: 34.5 mm
• Rail Width: 23 mm
• Rail Height: 22 mm
• Distances Between Holes: 35, 35 mm
• Thread Size: M6 x 8
• Block Type: Square
• Load Type: Heavy Load
• Block Mounting Type: From Top
• Basic Dynamic Load Rating (C): 34.9 kN
• Basic Static Load Rating (C‚): 52.82 kN
