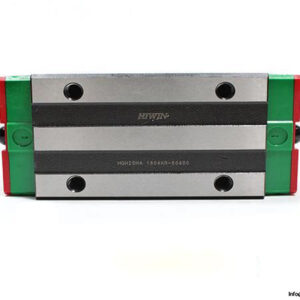

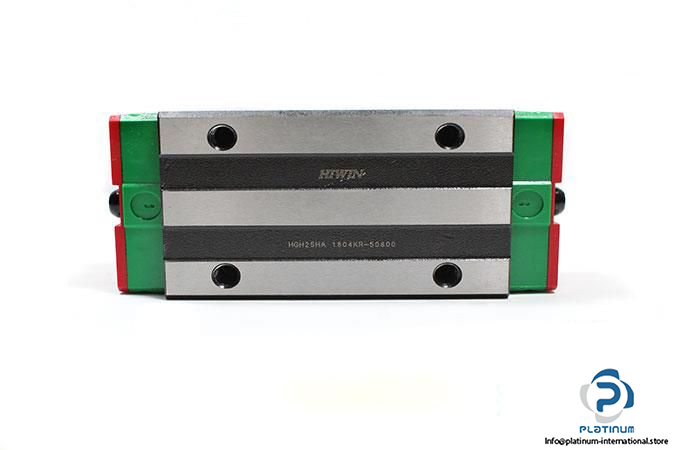

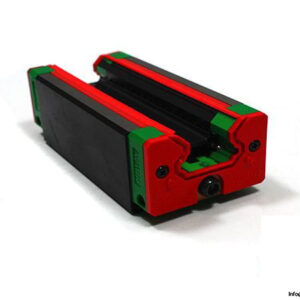

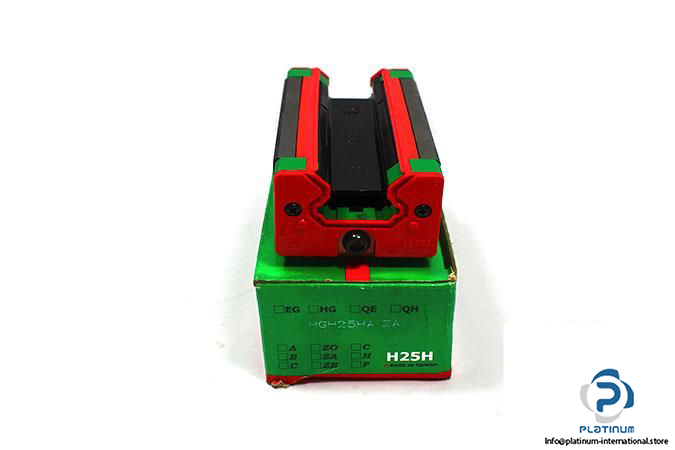

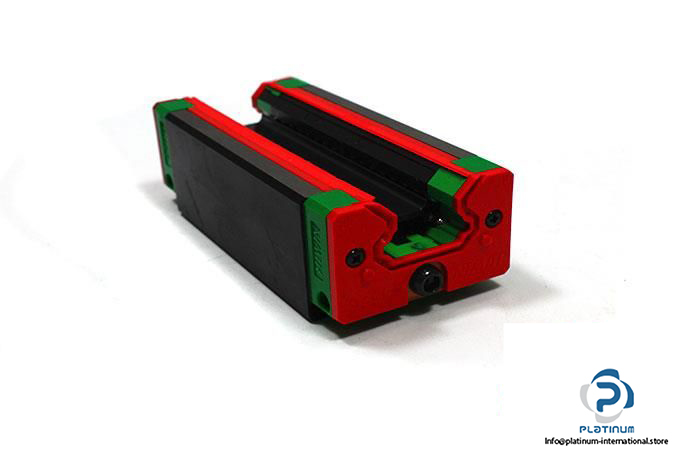

HIWIN HGH 25HA 1804KR-50800 LINEAR GUIDEWAY BLOCK

This high-performance linear guideway block from Hiwin is engineered for super heavy load applications requiring high precision and stability. The square-type block ensures optimal load distribution, while its top-mounting configuration simplifies integration into linear motion systems.

Manufacturer: Hiwin
Type: Linear Guideway Block
MNR: HGH 25HA 1804KR-50800

Technical Information

• Size: 25 mm
• Total Height H: 40 mm
• Block Width W: 48 mm
• Block Length L: 104.6 mm
• Block Height: 34.5 mm
• Distances Between Holes: 35 mm, 50 mm
• Rail Width: 23 mm
• Rail Height: 22 mm
• Thread Size: M6 x 8
• Block Type: Square
• Load Type: Super Heavy Load
• Block Mounting Type: From Top
• Basic Dynamic Load Rating C: 42.2 kN
• Basic Static Load Rating C‚: 69.07 kN
