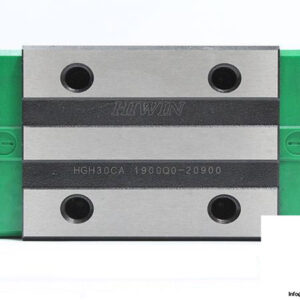

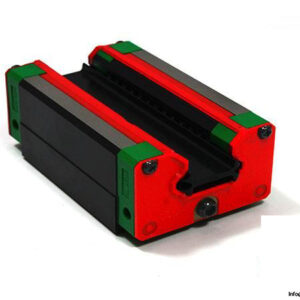

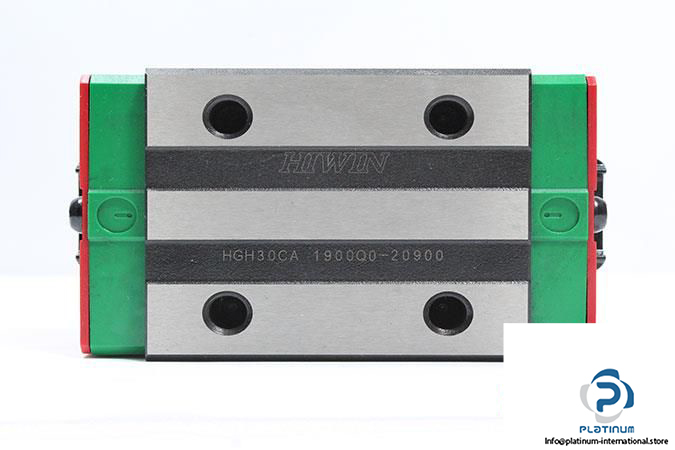

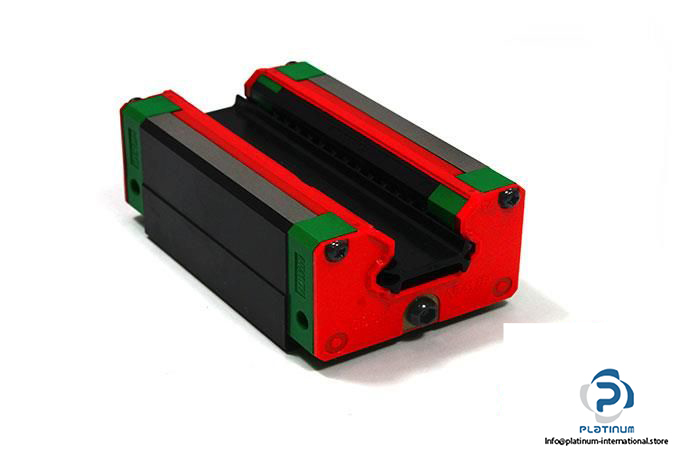

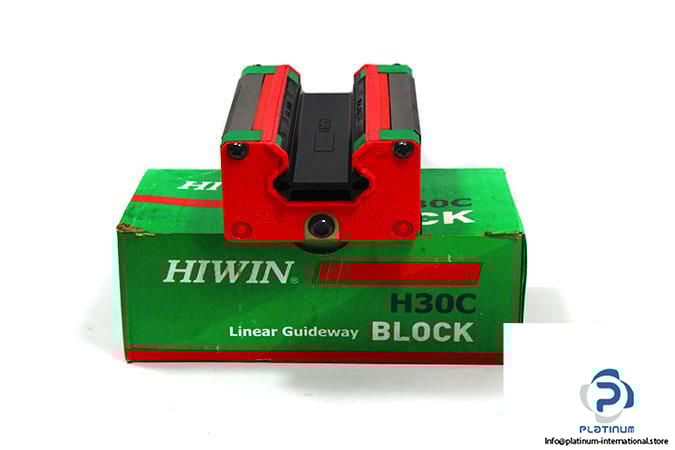

HIWIN HGH 30 CA LINEAR GUIDEWAY BLOCK

The Hiwin HGH 30 CA is a precision-engineered linear guideway block designed for heavy-duty motion systems. With a square block design and top mounting style, it ensures exceptional stability and high load-bearing capabilities, making it ideal for CNC, automation, and industrial applications requiring super heavy load support.

Manufacturer: Hiwin
Type: Linear Guideway Block
MNR: HGH 30 CA

Technical Information

• Size: 30 mm
• Block Height: 39 mm
• System Height: 45 mm
• Block Width (W): 60 mm
• Block Length (L): 97.4 mm
• Thread Size: M8 x 25
• Distance Between Holes: 40, 40 mm
• Rail Width: 28 mm
• Rail Height: 26 mm
• Block Type: Square
• Load Type: Super Heavy Load
• Block Mounting Type: From Top
• Preload Code: ZA
• Basic Dynamic Load Rating: 48.5 kN
• Basic Static Load Rating: 71.87 kN
