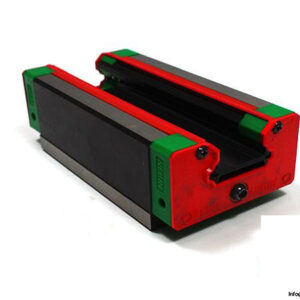

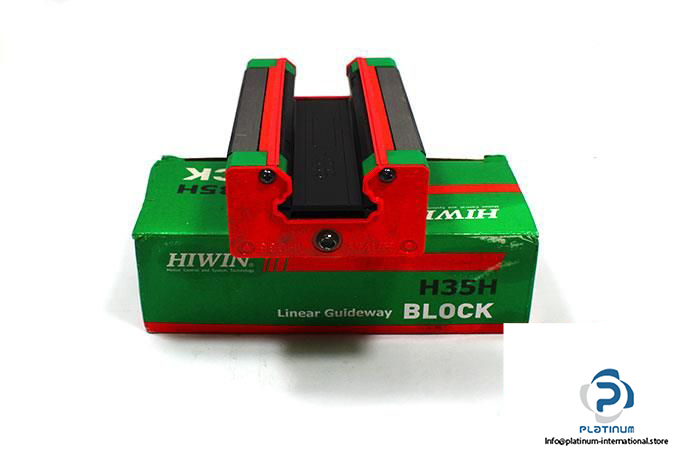

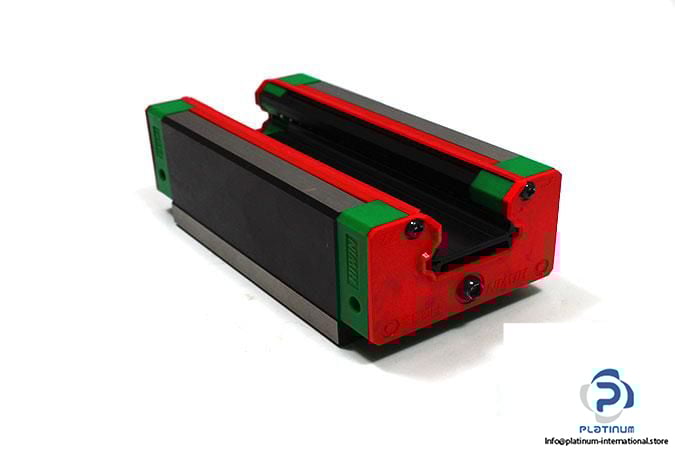

HIWIN HGH35HA LINEAR GUIDEWAY BLOCK

The Hiwin HGH35HA linear guideway block is designed for super heavy load industrial applications where high precision and rigidity are required. This square-type block supports high dynamic and static loads with top mounting capability and precision preload control.

Manufacturer: Hiwin
Type: Linear Guideway Block

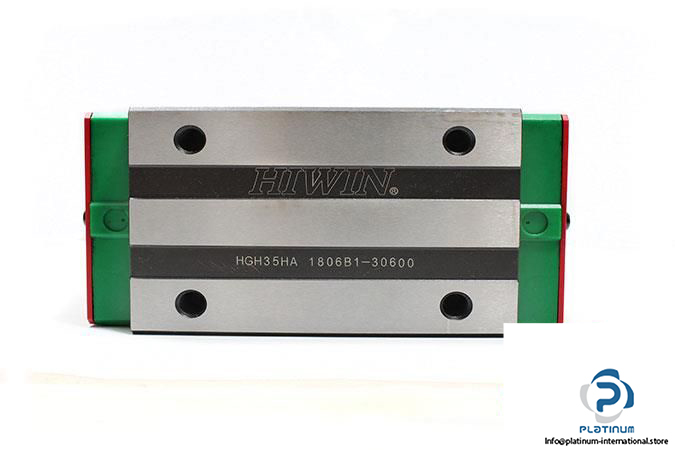

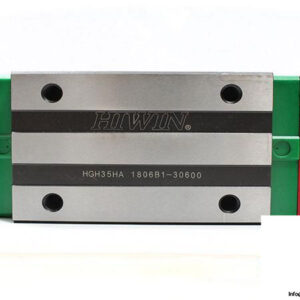

MNR: HGH35HA 1806B1-30600

Technical Information

• Size: 35 mm
• Block Height: 47.5 mm
• System Height: 55 mm
• Block Width (W): 70 mm
• Block Length (L): 138.2 mm
• Thread Size: M8x25
• Distance Between Holes: 50, 72 mm
• Rail Width: 34 mm
• Rail Height: 29 mm
• Block Type: Square
• Load Type: Super Heavy Load
• Block Mounting Type: From Top
• Preload Code: ZA
• Basic Dynamic Load Rating: 77.9 kN
• Basic Static Load Rating: 122.77 kN
