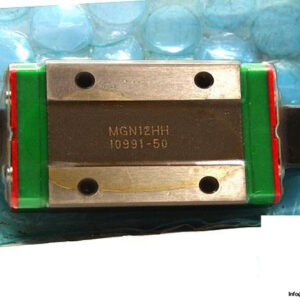

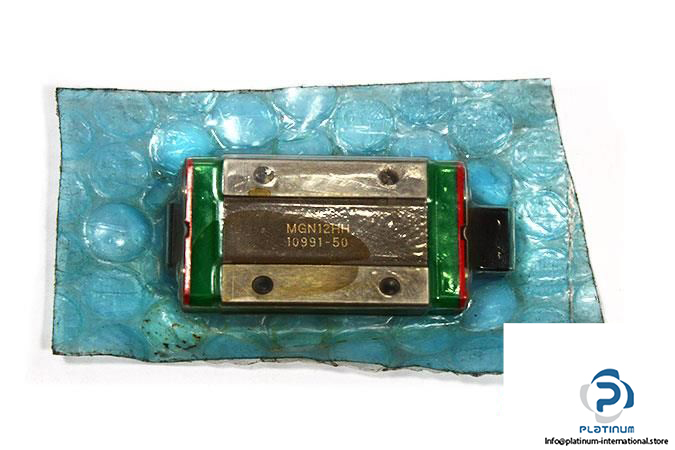

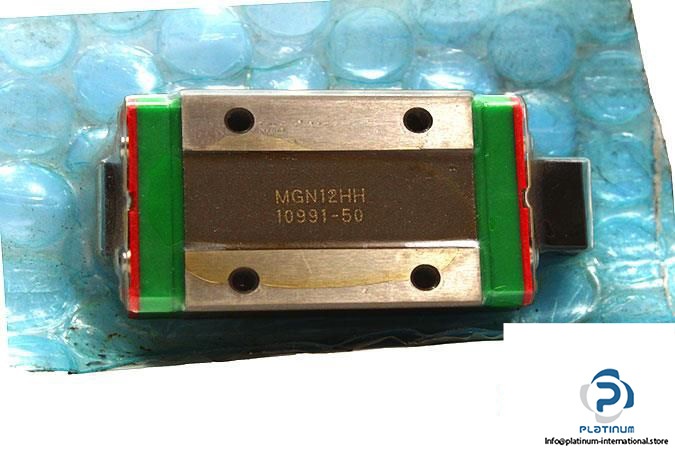

HIWIN MGN 12HH LINEAR GUIDEWAY BLOCK
The Hiwin MGN 12HH is a compact long-type linear guideway block, engineered for high-precision motion control applications. Built for smooth linear movement and reliable load handling, this block is ideal for compact automation systems, 3D printers, and CNC assemblies.
Manufacturer: Hiwin
Type: Linear Guideway Block
MNR: MGN 12HH 10991-50
Size: 12 mm
Technical Information
- Block Height: 10 mm
- System Height: 13 mm
- Block Width (W): 27 mm
- Block Length (L): 45.4 mm
- Distance Between Holes: 20, 20 mm
- Thread Size: M3 × 8
- Rail Width: 12 mm
- Rail Height: 8 mm
- Block Type: Long
- Precision Code: H
- Basic Dynamic Load Rating: 3.72 kN
- Basic Static Load Rating: 5.88 kN
