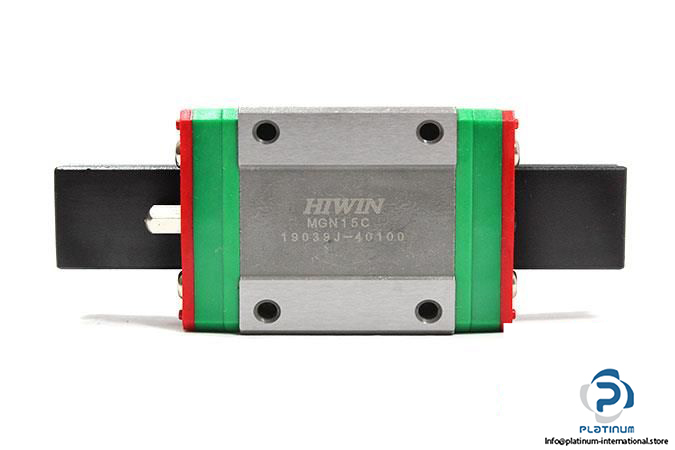

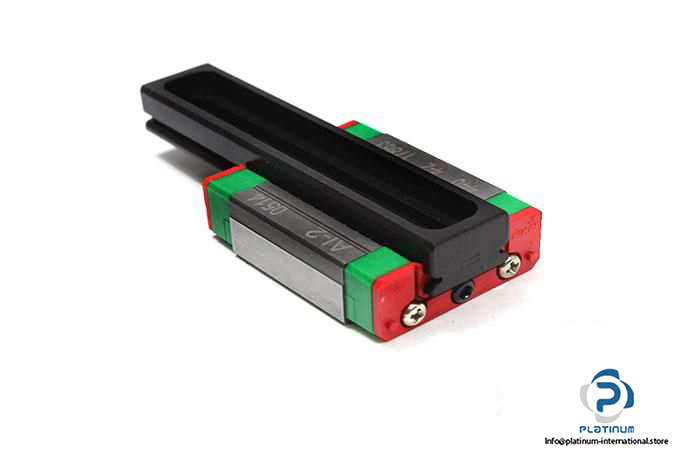

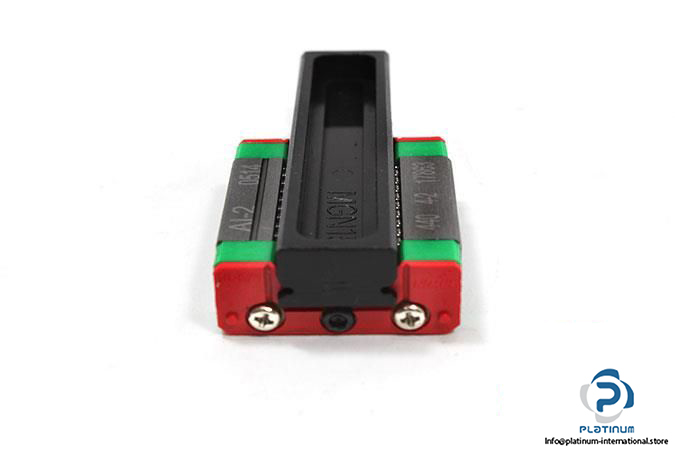

HIWIN MGN 15C LINEAR GUIDEWAY BLOCK

This compact and high-precision linear guideway block by Hiwin is engineered for smooth linear motion in automation, CNC, and industrial machinery. With a 15 mm rail width and high load ratings, it ensures reliable performance in tight spaces and demanding conditions.

Manufacturer: Hiwin
Type: Linear Guideway Block
MNR: MGN 15C 19039J-40100
Size: 15 mm

Technical Information

• Block Height: 12 mm
• System Height: 16 mm
• Block Width (W): 32 mm
• Block Length (L): 42.1 mm
• Distance Between Holes: 25 mm, 20 mm
• Thread Size: M3 x 10
• Rail Width: 15 mm
• Rail Height: 10 mm
• Block Type: Standard
• Basic Dynamic Load Rating: 4.61 kN
• Basic Static Load Rating: 5.59 kN
