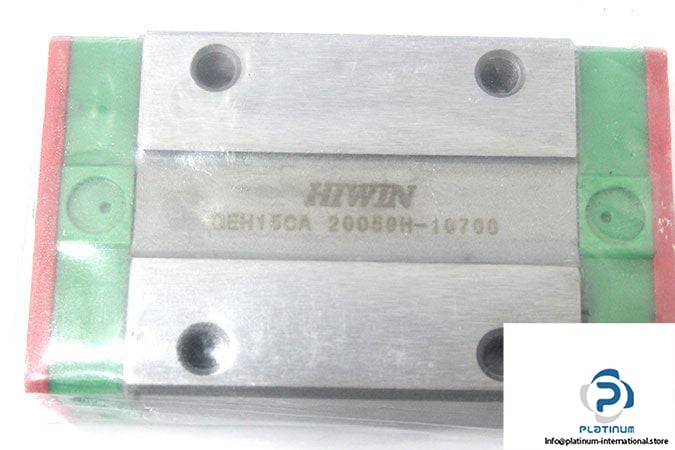

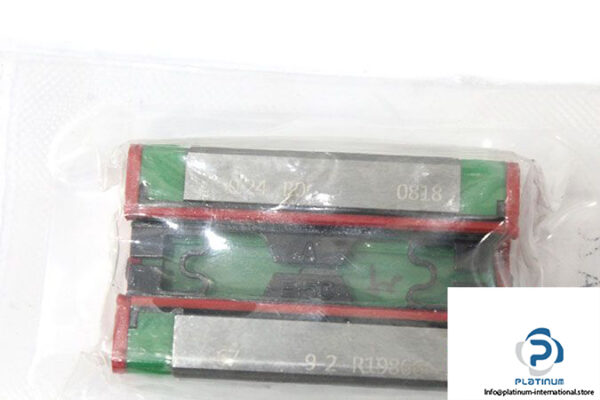

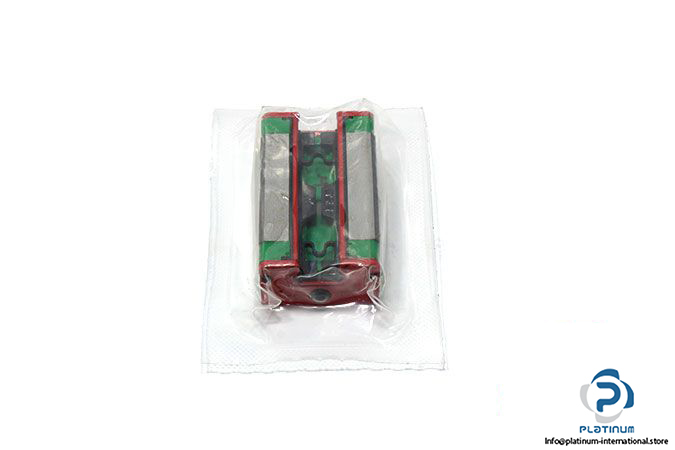

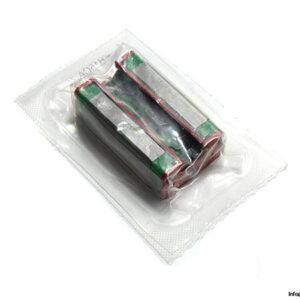

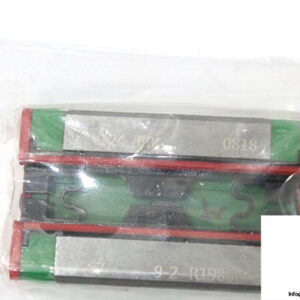

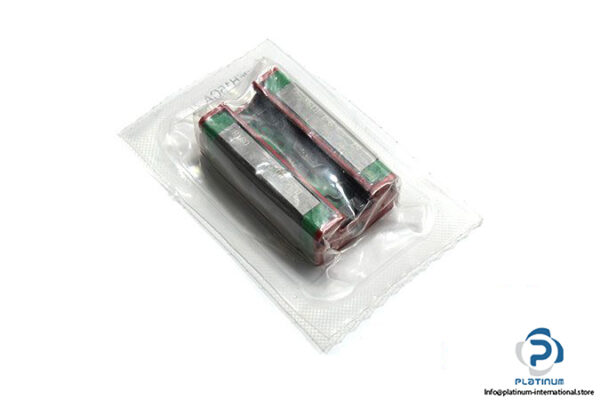

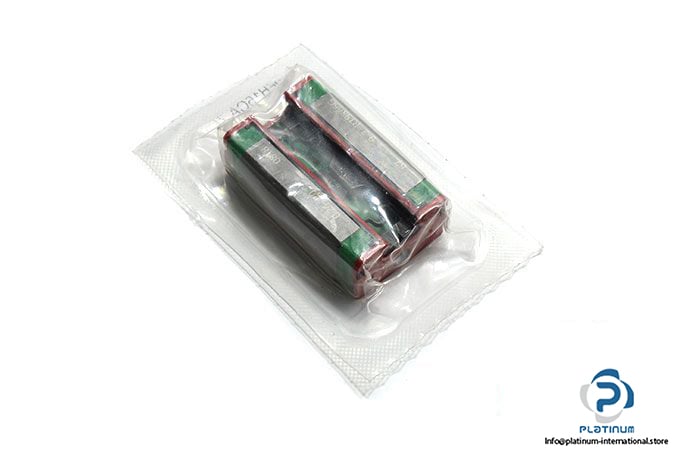

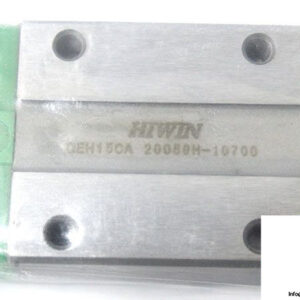

HIWIN QEH15CA LINEAR GUIDEWAY BLOCK
This low-profile linear guideway block from Hiwin™s QE Series features SynchMotion„¢ Technology for smoother movement and reduced noise. Designed for heavy-load industrial applications, the QEH15CA offers high precision and compact dimensions ideal for limited-space systems.
Manufacturer: Hiwin
Type: Linear Guideway Block
Model: QEH15CA
MRN: QEH15CA 20059H-10700
Technical Information
- Size: 15 mm
- Total Height H: 24 mm
- Block Width W: 34 mm
- Block Length L: 56.8 mm
- Block Height: 20 mm
- Distance Between Holes: 26, 26 mm
- Basic Load Rating “ Dynamic (Cr): 12.5 kN
- Basic Load Rating “ Static (C0r): 15.2 kN
- Mounting Bolts for Rail: M3x16
- Series: QE Series; Low Profile with SynchMotion Technology
- Block Type: H (Square Type)
- Load Type: C (Heavy Load)
