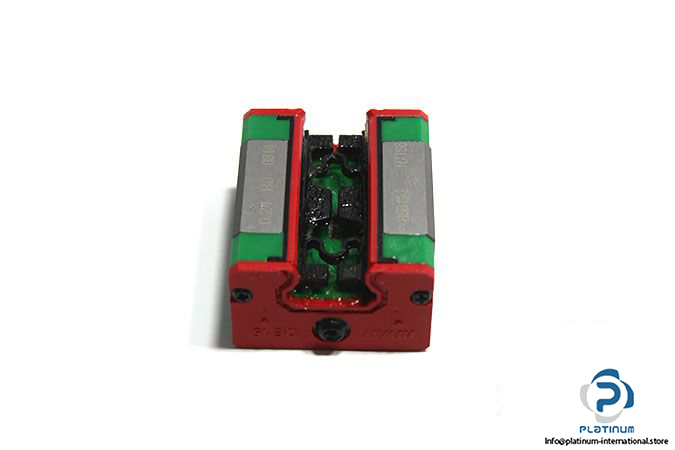

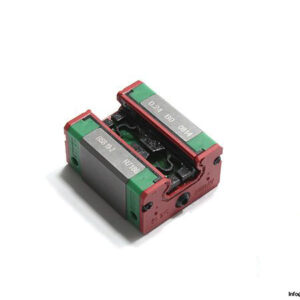

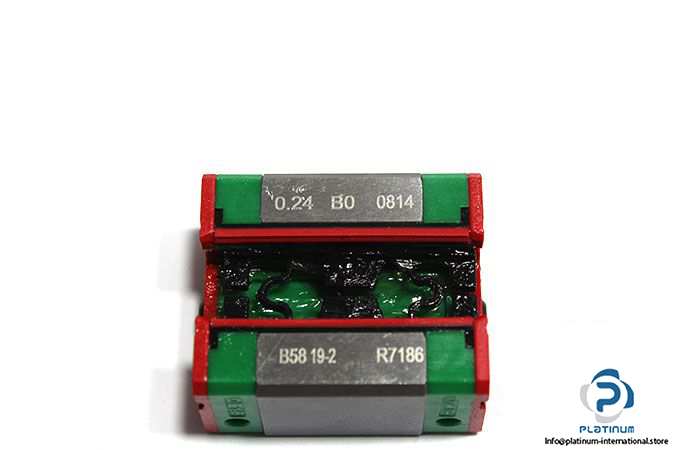

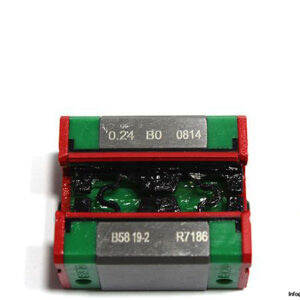

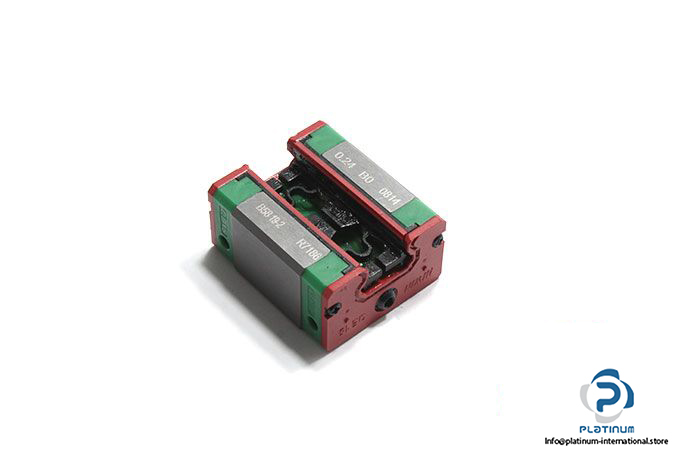

HIWIN QEH15SA LINEAR GUIDEWAY BLOCK
This Hiwin linear guideway block is part of the QE Series, featuring low profile design and SynchMotion Technology for smooth, quiet, and precise linear motion. Ideal for compact automation setups requiring medium load handling and high accuracy.
Manufacturer: Hiwin
Type: Linear Guideway Block
Model: QEH15SA

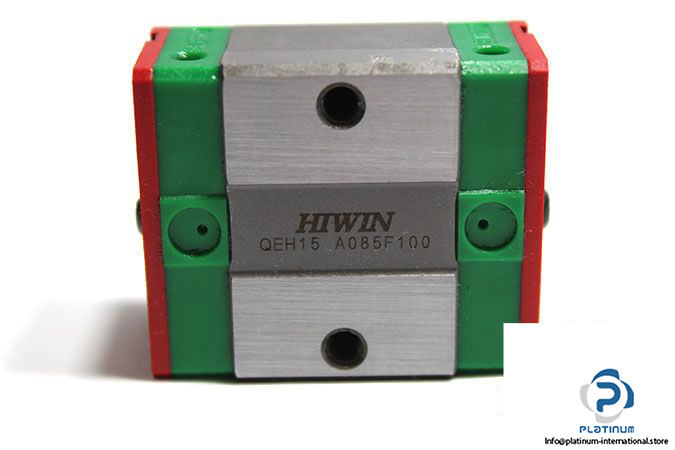

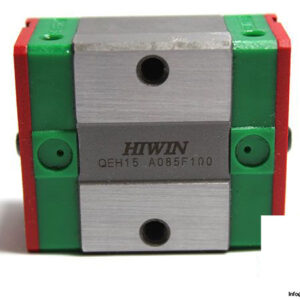

MRN: QEH15 A085F100
Technical Information
- Size: 15 mm
- Total Height H: 24 mm
- Block Width W: 34 mm
- Block Length L: 40.1 mm
- Block Height: 20 mm
- Distances Between Holes: 26 mm
- Dynamic Load Rating Cr: 8.5 kN
- Static Load Rating C‚r: 8.7 kN
- Series: QE Series; Low Profile Linear Guideway, with SynchMotion Technology
- Block Type: H; Square Type
- Load Type: S; Medium Load
- Block Mounting: A; Mounting from Top
