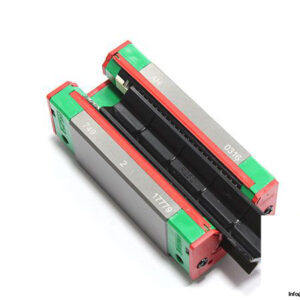

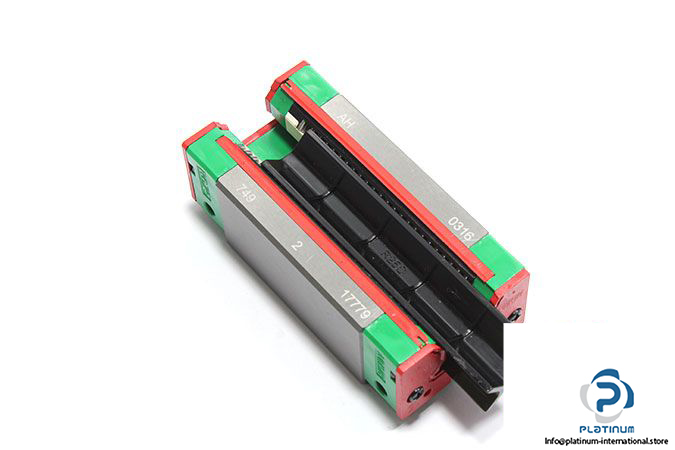

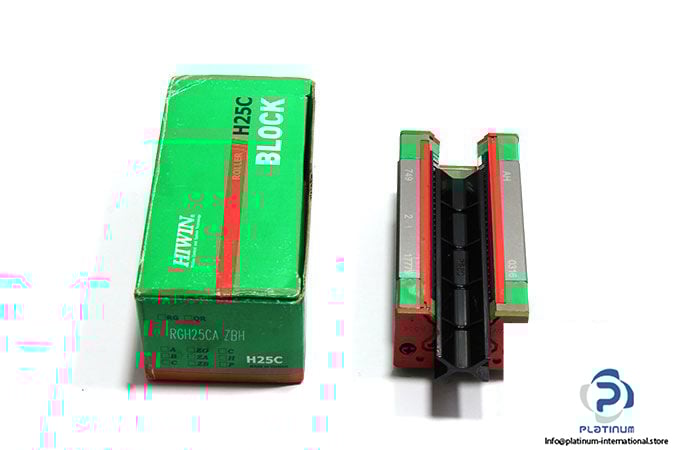

HIWIN RGH25CA LINEAR GUIDEWAY BLOCK
The Hiwin RGH25CA is a high-rigidity roller-type linear guideway block designed for demanding industrial motion applications. Part of the RG Series, it delivers superior load capacity and precision, ideal for automation and heavy-load systems requiring accurate linear motion.
Manufacturer: Hiwin
Type: Linear Guideway Block
Model: RGH25CA

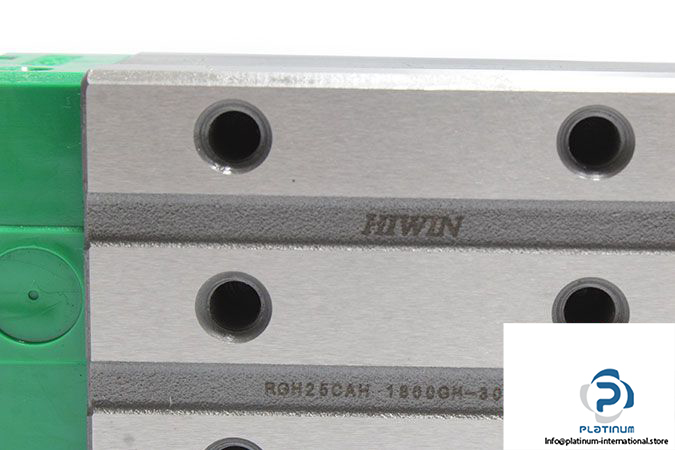

MRN: RGH25CAH 1800GH-30100
Technical Information
- Size: 25 mm
- Total Height H: 40 mm
- Block Width W: 48 mm
- Block Length L: 97.9 mm
- Block Height: 34.5 mm
- Distance Between Holes: 35, 35 mm
- Dynamic Load Cr: 27.7 kN
- Static Load C0r: 57.1 kN
- Series: RG Series (High Rigidity Roller Type)
- Block Type: H (Square Type)
- Load Type: C (Heavy Load)
- Precision Code: H
