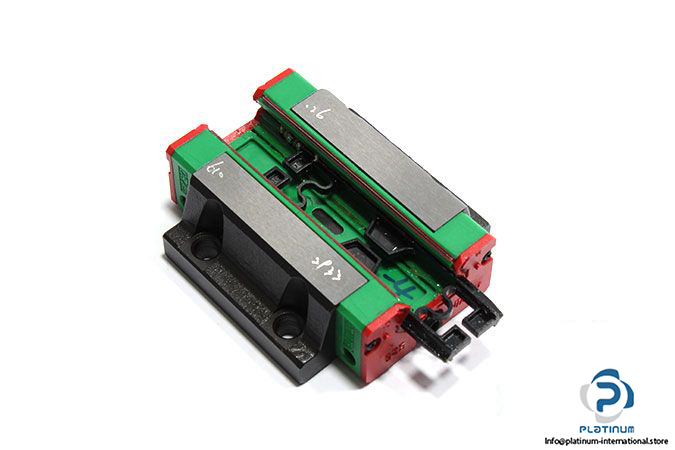

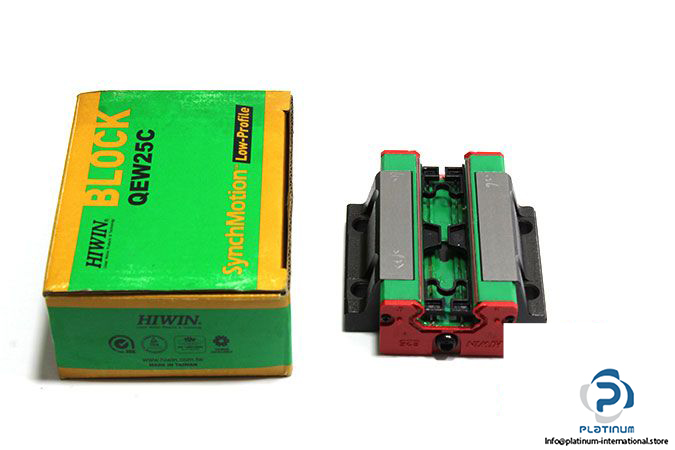

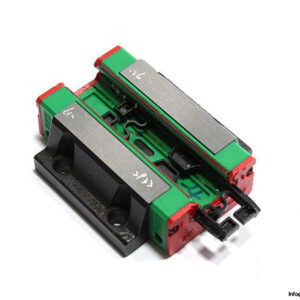

HIWIN QEW25CBH LINEAR GUIDEWAY BLOCK
The Hiwin QEW25CBH is a precision-engineered, low-profile linear guideway block designed for high-performance motion systems. With SynchMotion„¢ Technology and heavy load capability, it provides smooth, quiet movement with superior load ratings and rigidity in compact assemblies.
Manufacturer: Hiwin
Type: Linear Guideway Block
Model: QEW25CBH

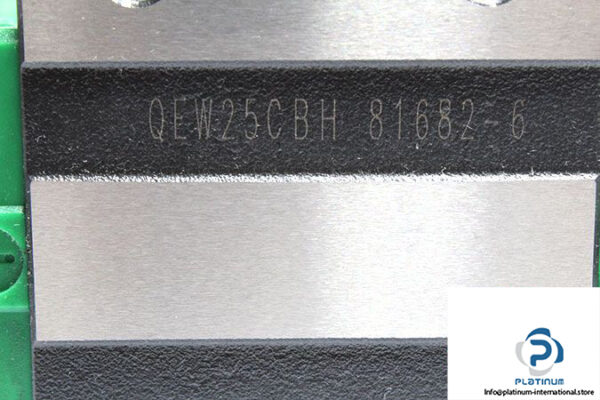

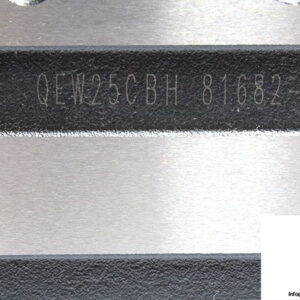

MRN: QEW25CBH 81682-6
Technical Information
- Size: 25 mm
- Total Height H: 33 mm
- Block Width W: 73 mm
- Block Length L: 83.6 mm
- Block Height: 26.8 mm
- Distance Between Holes: 60 mm, 35 mm
- Basic Load Ratings, Linear:
- Dynamic Cr: 26 kN
- Static C0r: 31.49 kN
- Series: QE Series; Low Profile Linear Guideway with SynchMotion Technology
- Block Type: W; Flange Type
- Load Type: C; Heavy Load
- Block Mounting: B; Bottom
