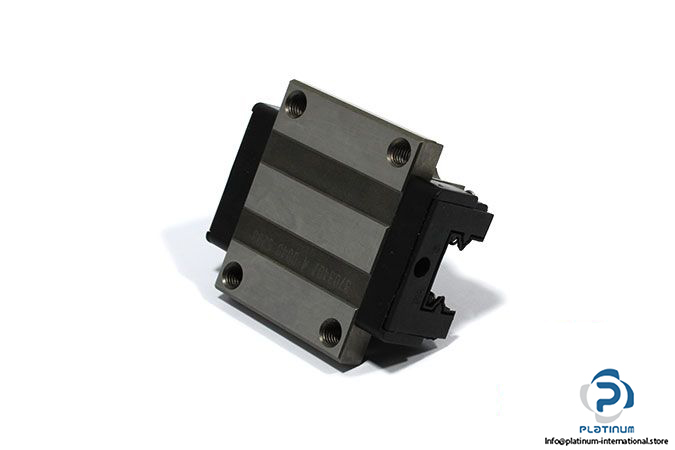

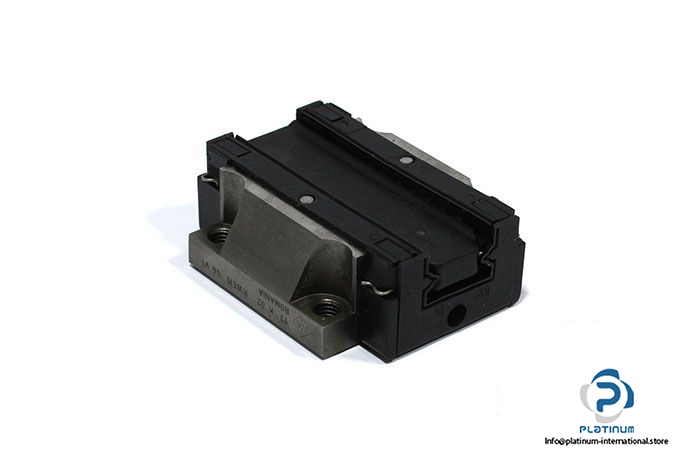

Schaeffler INA KWE 15 G4 V1 Linear Bearing Carriage
The Schaeffler INA KWE 15 G4 V1 is a two-row ball linear recirculating bearing carriage designed for high precision, smooth motion, and long service life in linear guidance applications.
Manufacturer: Schaeffler INA
Type: Two-row ball linear recirculating bearing carriage

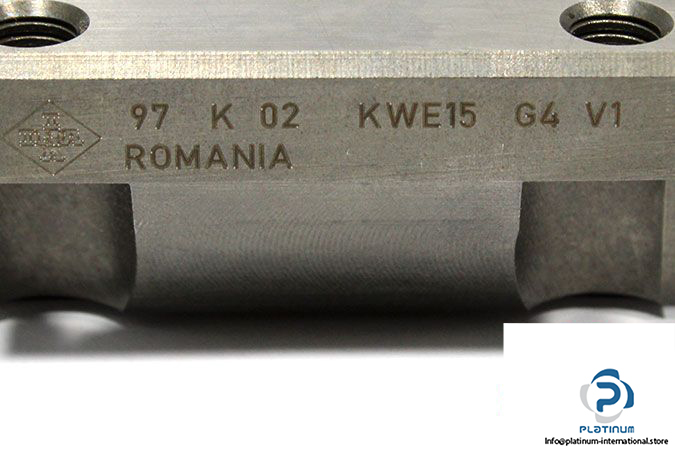

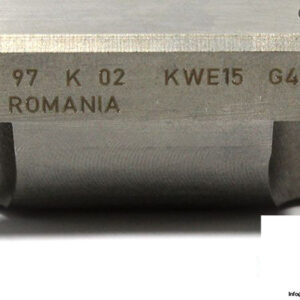

Model: KWE 15 G4 V1
Technical Information
- Size: 15
- Carriage Design: Flang, Standard
- Basic Load Ratings:
- Dynamic C: 6500 N
- Static C0: 9200 N
- Static Moment Rating About:
- X axis M0x: 73 Nm
- Y axis M0y: 56 Nm
- Z axis M0z: 56 Nm
- Preload: V1
- Accuracy Class: G4

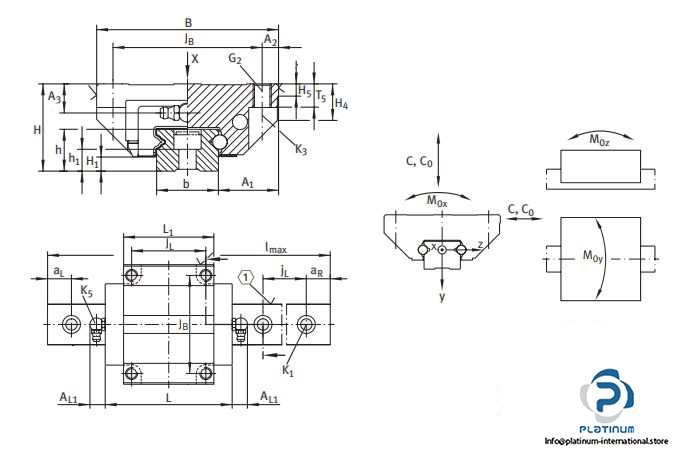

Dimensions
- Total Height (H): 24 mm
- Width Carriage (B): 47 mm
- Overall Length Carriage (L): 54.5 mm
- JB: 38 mm
- JL: 30 mm
