INA KWVE30-B-ESC-220900220/AAAD V1-G3 Linear Recirculating Ball Bearing

ina-KWVE30-B-ESC-220900220_AAAD-V1-G3-linear-recirculating-ball-bearing-(new)
ina-KWVE30-B-ESC-220900220_AAAD-V1-G3-linear-recirculating-ball-bearing-(new)-1
ina-KWVE30-B-ESC-220900220_AAAD-V1-G3-linear-recirculating-ball-bearing-(new)-2
ina-KWVE30-B-ESC-220900220_AAAD-V1-G3-linear-recirculating-ball-bearing-(new)-3
ina-KWVE30-B-ESC-220900220_AAAD-V1-G3-linear-recirculating-ball-bearing-(new)-1
ina-KWVE30-B-ESC-220900220_AAAD-V1-G3-linear-recirculating-ball-bearing-(new)-2
ina-KWVE30-B-ESC-220900220_AAAD-V1-G3-linear-recirculating-ball-bearing-(new)-3
New
In stock12 unitsReady to ship

121,48$

Type: LINEAR RECIRCULATING BALL BEARING Model: KWVE30-B-ESC-220900220/AAAD-V1-G3

Manufacturer:
INA
Manufacturer
INA?
SKU
1057175
Category
Linear Motion
Condition
New
30BallbearingbearingsInaLinearmmMotionRecirculatingShaeffler
Share
Massive Inventory
Global Shipping
Expert Support
Quality Guaranteed

Manufacturer: INA
Type: LINEAR RECIRCULATING BALL BEARING
Model: KWVE30-B-ESC-220900220/AAAD-V1-G3

Size: 30

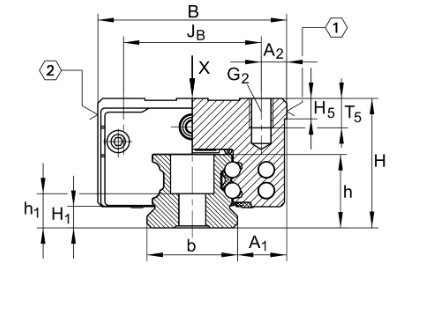

Dimensions
Length ( L ): 69mm
Width ( B ): 60 mm
Height ( H ): 42 mm
Block height: 36.1 mm
JB: 40 mm
Guideway length: 900 mm
aL: 220 mm
aR: 220 mm
Basic Load Ratings:
Dynamic C: 18,700 N
Static C0: 31,500 N
Block Type: Flange Type
Material name: KWVE
Version: B
Carriage design: ESC, (Expanded design, short, narrow carriage)
Accuracy Class: G3
Carriage Preload: V1
