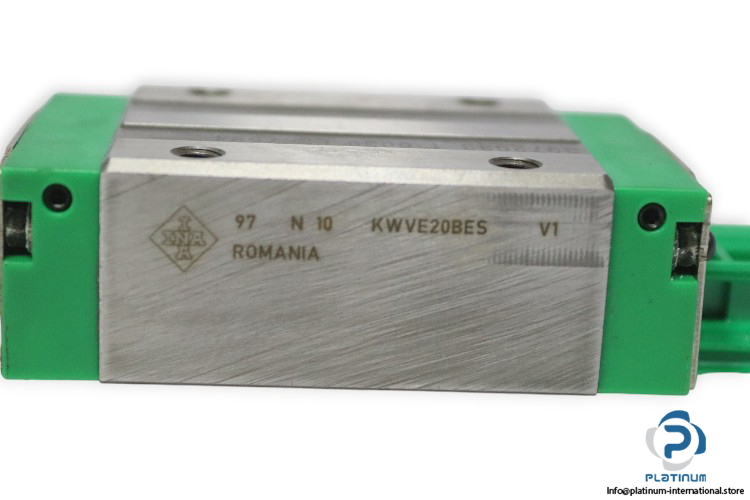

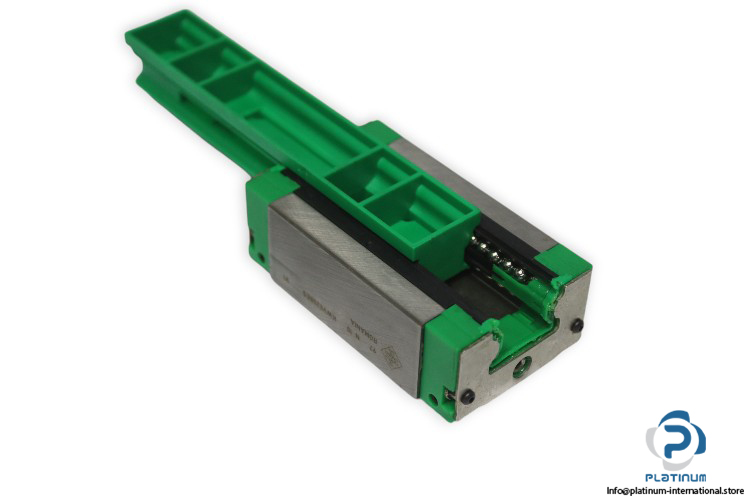

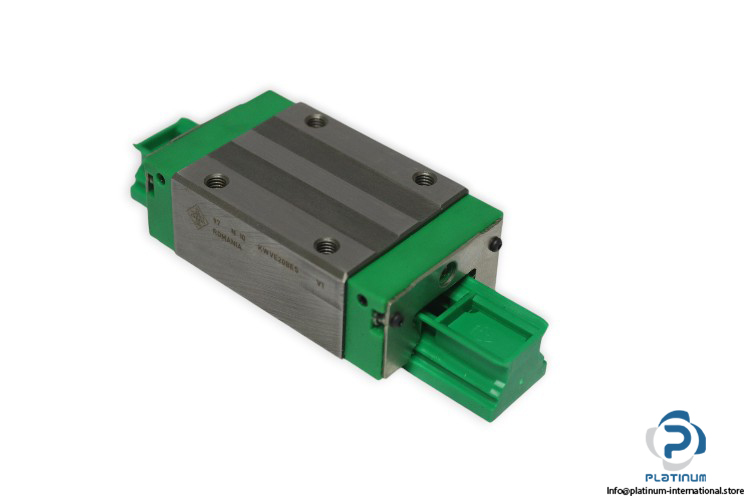

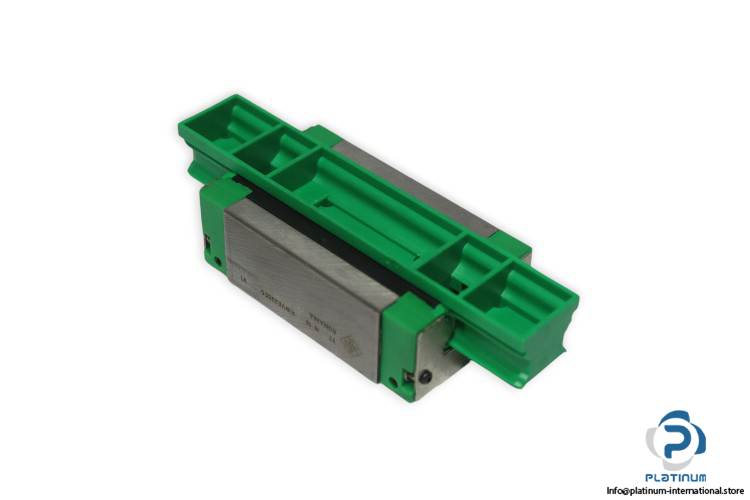

INA KWVE20BES V1 Linear Recirculating Ball Bearing

Manufacturer: INA
Type: LINEAR RECIRCULATING BALL BEARING
Model: KWVE20BES-V1

Size: 20 mm

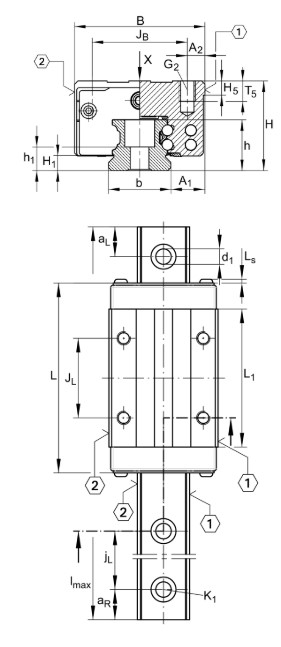

Dimensions
Total Height H: 28 mm
Width carriage B: 42 mm
Overall length carriage L: 71.4 mm
Block Height (H-H1): 23.5 mm
J_B: 32 mm
J_L: 32 mm
Version: B
Carriage design: ES, Expanded design, narrow carriage
Preload: V1
Basic Load Ratings:
Dynamic C: 13,100 N
Static C₀: 27,000 N
Static Moment Rating About:
X axis M_0x: 332 Nm
Y axis M_0Y: 240 Nm
Z axis M_0Z: 240 Nm
