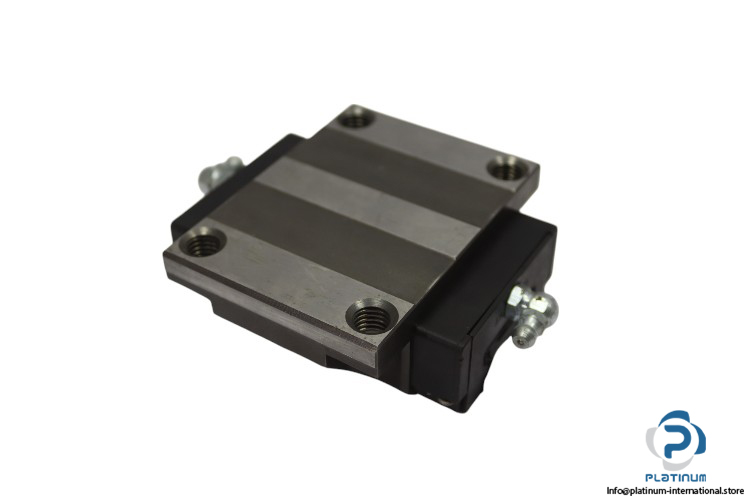

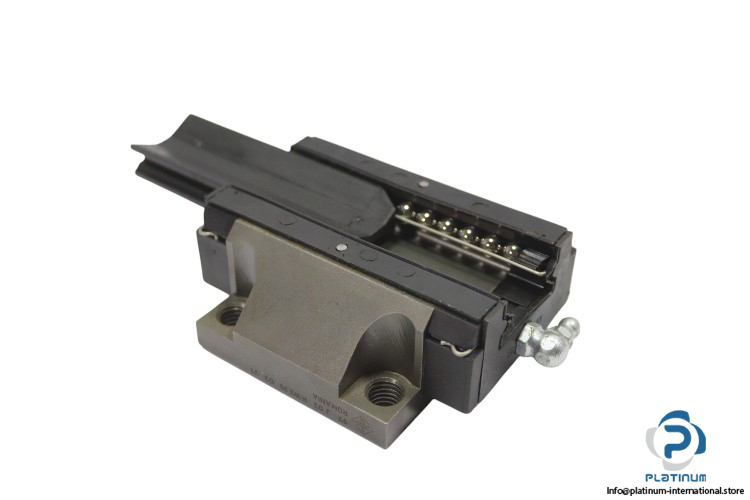

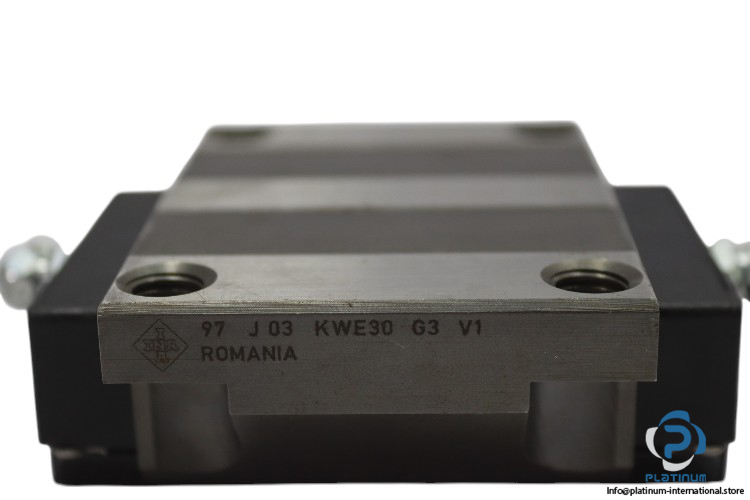

INA KWE30 G3 V1 Recirculating Ball Bearing Carriage
The INA KWE30 G3 V1 Recirculating Ball Bearing Carriage is designed for high precision and performance. With a dynamic load rating of 22.5 kN and a static load rating of 29.7 kN, this carriage offers exceptional stability and reliability for demanding industrial applications.
Manufacturer: INA
Model: KWE30 G3 V1
Type: Recirculating Ball Bearing Carriage

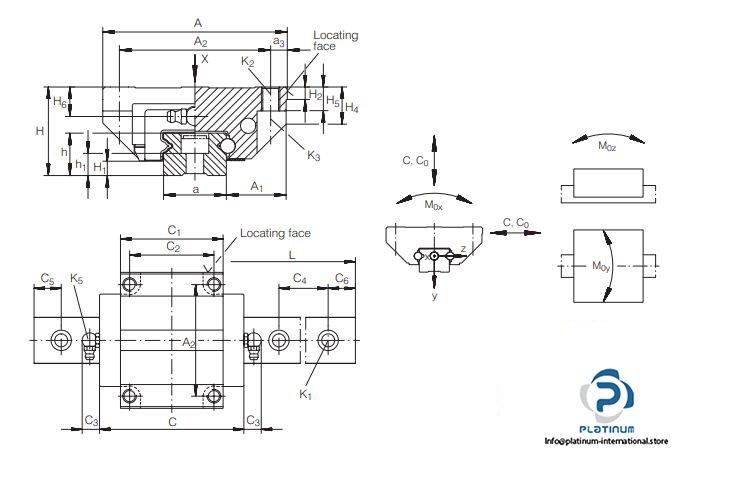

Technical Information:
- Size: 30 mm
- Height system H: 42 mm
- Width carriage A: 90 mm
- Block height: 35 mm
- Overall length carriage C: 93 mm
- Dynamic Load Rating (C): 22.5 kN
- Static Load Rating (C0): 29.7 kN
- Static Moment Rating About:
- X axis (M0x): 437 Nm
- Y axis (M0Y): 335 Nm
- Z axis (M0Z): 335 Nm
- Preload: V1
- Accuracy Class: G3
