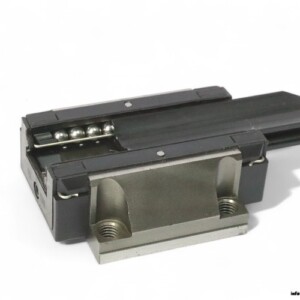

INA KWE25 G4V1 Recirculating Ball Bearing Carriage
New
Available on request
59,99$
Recirculating Ball Bearing Carriage
The INA KWE25-G4V1 provides precise linear guidance with high rigidity and load capacity. Ideal for CNC machinery and automation applications requiring smooth and accurate motion.AutomationBallbearingCarriageCNCComponentEquipmentGuideInaIndustrialKWE25-G4V1LinearMotionPrecisionRecirculatingSystem
Used
Available on request 49,99$
This product is also available used
View Used Version →
Massive Inventory
Global Shipping
Expert Support
Quality Guaranteed

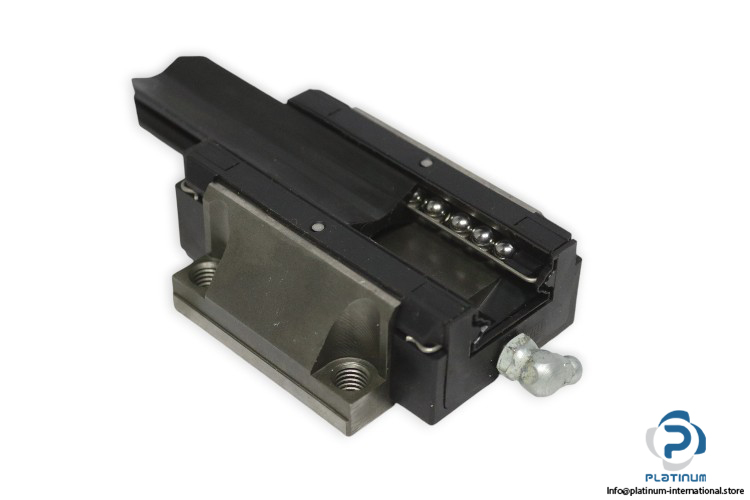

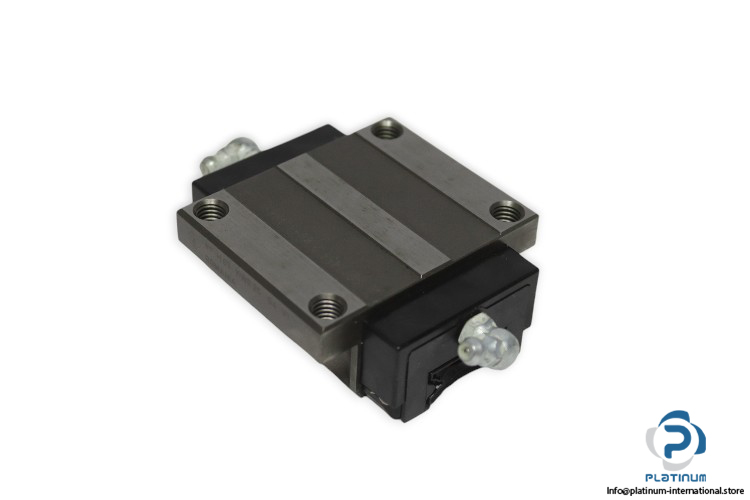

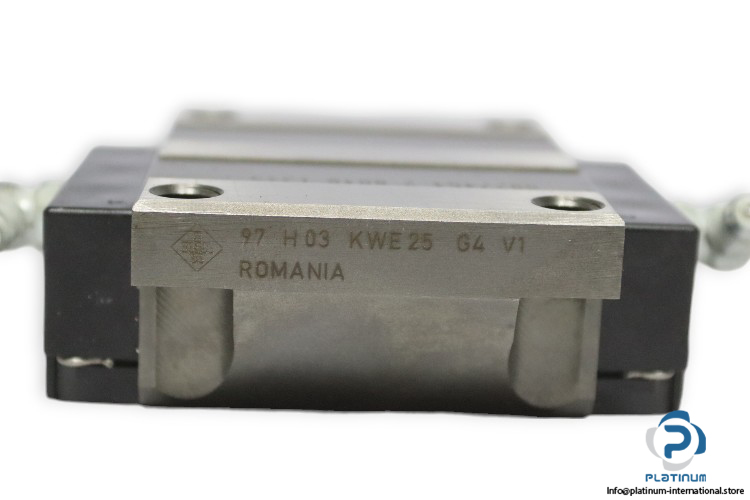

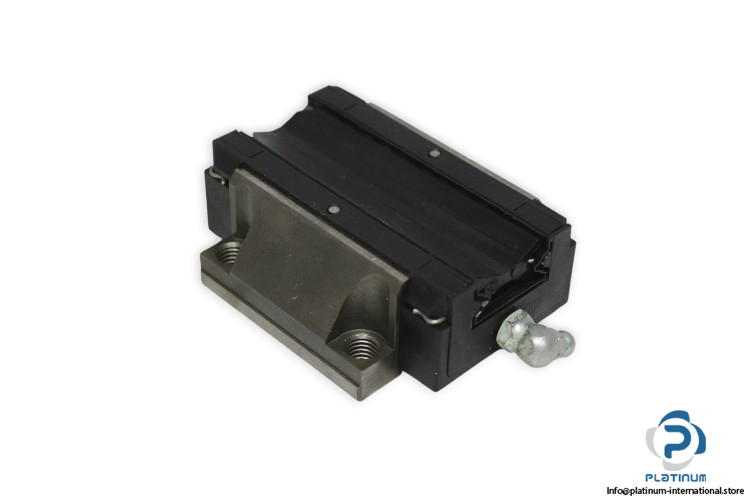

INA KWE25-G4V1 Recirculating Ball Bearing Carriage
The INA KWE25-G4V1 is a high-precision recirculating ball bearing carriage engineered for linear motion systems. It offers smooth movement, high load capacity, and superior rigidity, making it ideal for use in CNC machinery, automation equipment, and precision industrial applications. Built with INA™s quality and reliability, it ensures stable performance under demanding loads.
Manufacturer: INA
Type: Recirculating Ball Bearing Carriage
Model: KWE25-G4V1

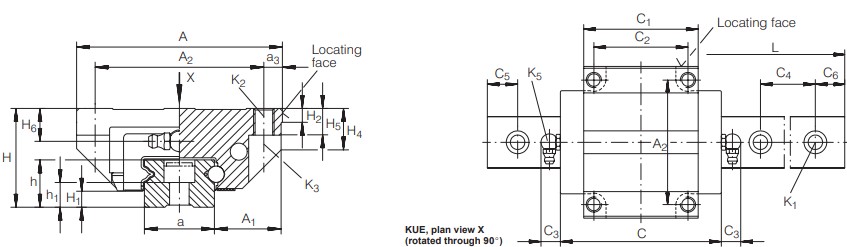

| Height System H | 36 mm |
| Width Carriage A | 70 mm |
| Overall Length Carriage C | 80.7 mm |
| Carriage Height | 29.5 mm |
| A2 | 57 mm |
| C2 | 45 mm |
| Dynamic Load Rating (C) | 16200 N |
| Static Load Rating (C0) | 20900 N |
| Static Moment Rating About X axis (M0x) | 253 Nm |
| Static Moment Rating About Y axis (M0y) | 185 Nm |
| Static Moment Rating About Z axis (M0z) | 185 Nm |
| Preload | V1 |
| Accuracy Class | G4 |
