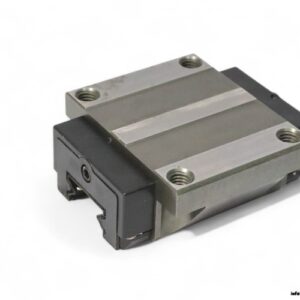

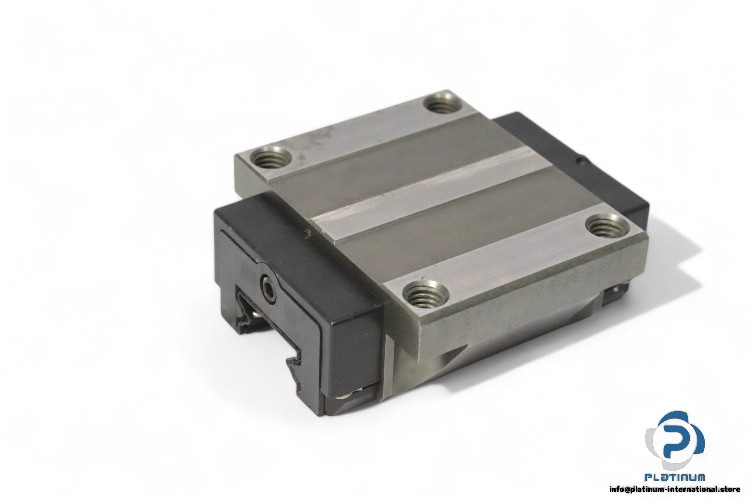

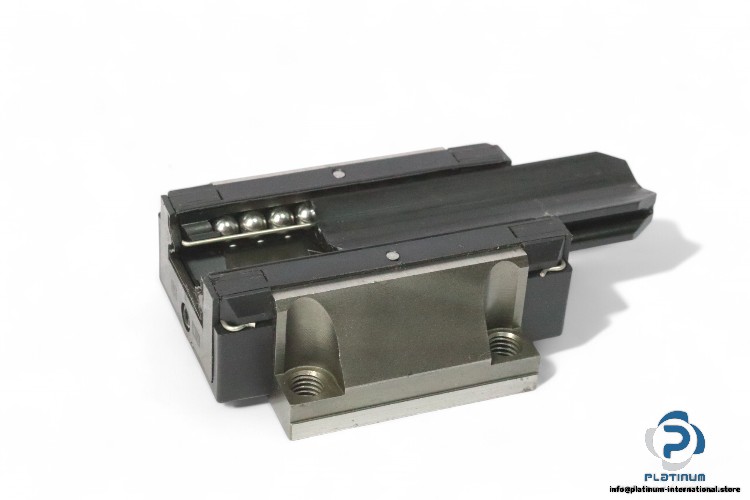

INA KWE25 G4V1 Recirculating Ball Bearing Carriage
Used
Available on request
49,99$
Recirculating Ball Bearing Carriage
The INA KWE25-G4V1 linear carriage delivers high precision and rigidity for smooth motion control. Compact and reliable, it supports dynamic loads up to 16.2 kN for demanding automation and CNC applications.AutomationBallbearingCarriageCNCComponentGuideInaIndustrialKWE25-G4V1LinearMotionPrecisionrailRecirculatingSystem
New
Available on request 59,99$

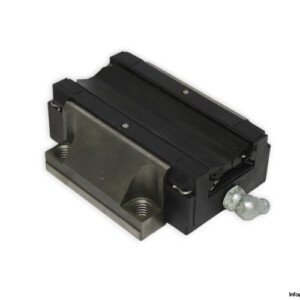

This product is also available brand new
View New Version →
Massive Inventory
Global Shipping
Expert Support
Quality Guaranteed
INA KWE25-G4V1 Recirculating Ball Bearing Carriage
The INA KWE25-G4V1 Recirculating Ball Bearing Carriage is a precision linear motion component designed for smooth, accurate, and maintenance-free operation. Engineered for high rigidity and load capacity, it ensures consistent performance in CNC machines, automation systems, and industrial equipment requiring precise linear guidance.
Manufacturer: INA
Type: Recirculating Ball Bearing Carriage
Model: KWE25-G4V1

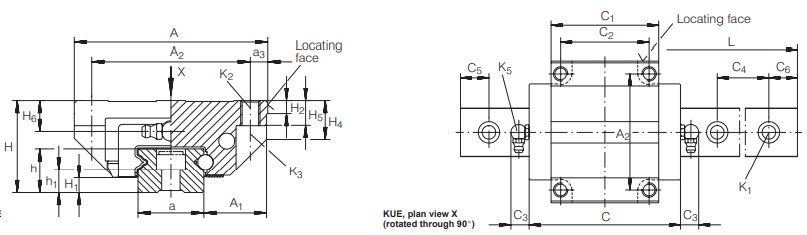

| Height System (H) | 36 mm |
| Width Carriage (A) | 70 mm |
| Overall Length Carriage (C) | 80.7 mm |
| Carriage Height | 29.5 mm |
| A2 | 57 mm |
| C2 | 45 mm |
| Basic Dynamic Load Rating (C) | 16.2 kN |
| Basic Static Load Rating (C0) | 20.9 kN |
| Static Moment Rating About X Axis (M0x) | 253 Nm |
| Static Moment Rating About Y Axis (M0y) | 185 Nm |
| Static Moment Rating About Z Axis (M0z) | 185 Nm |
| Preload | V1 |
| Accuracy Class | G4 |
